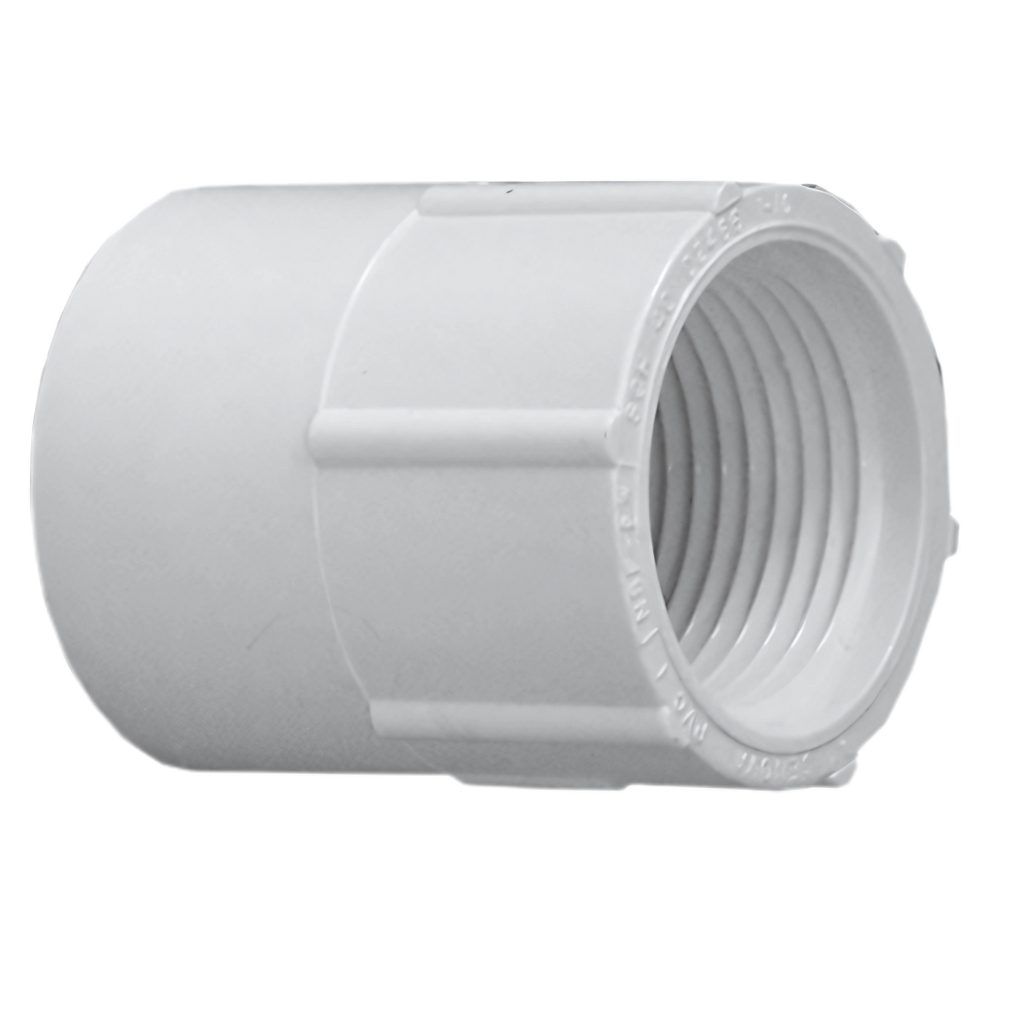

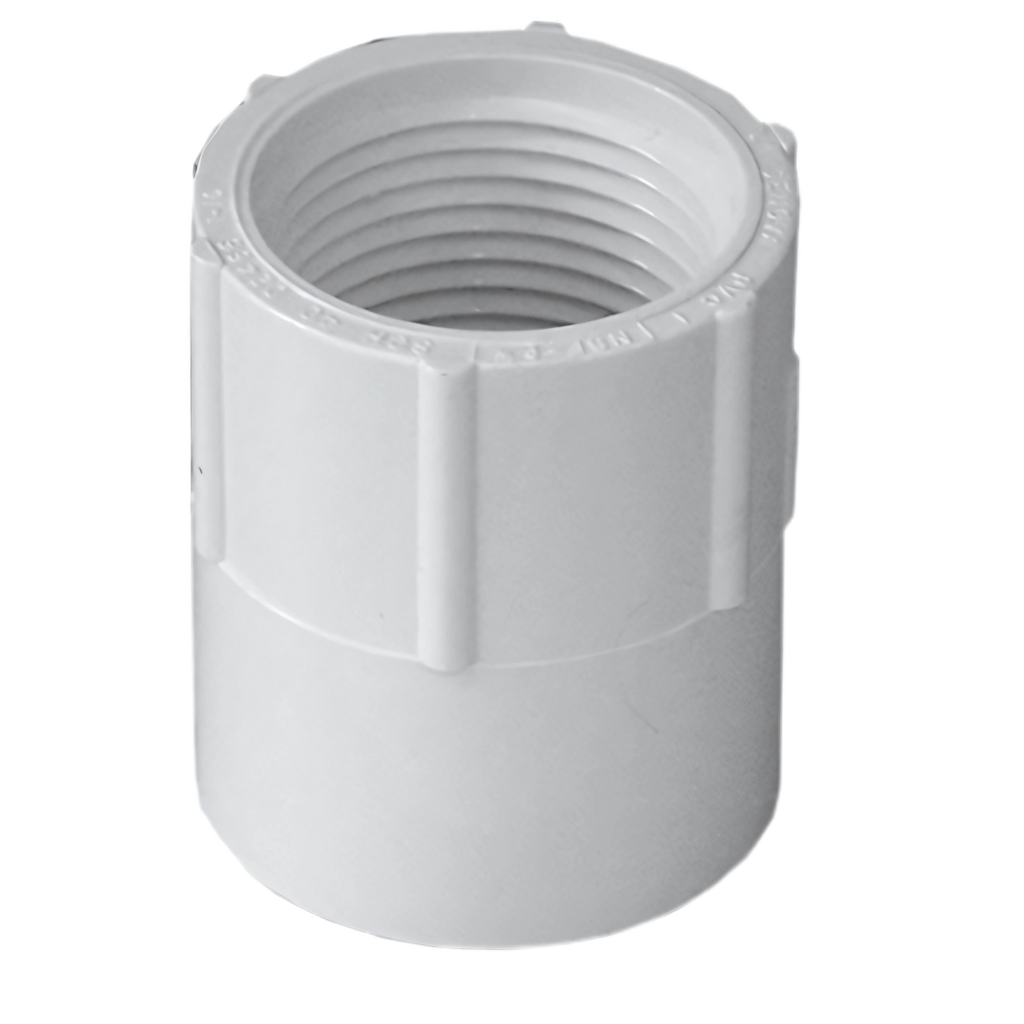

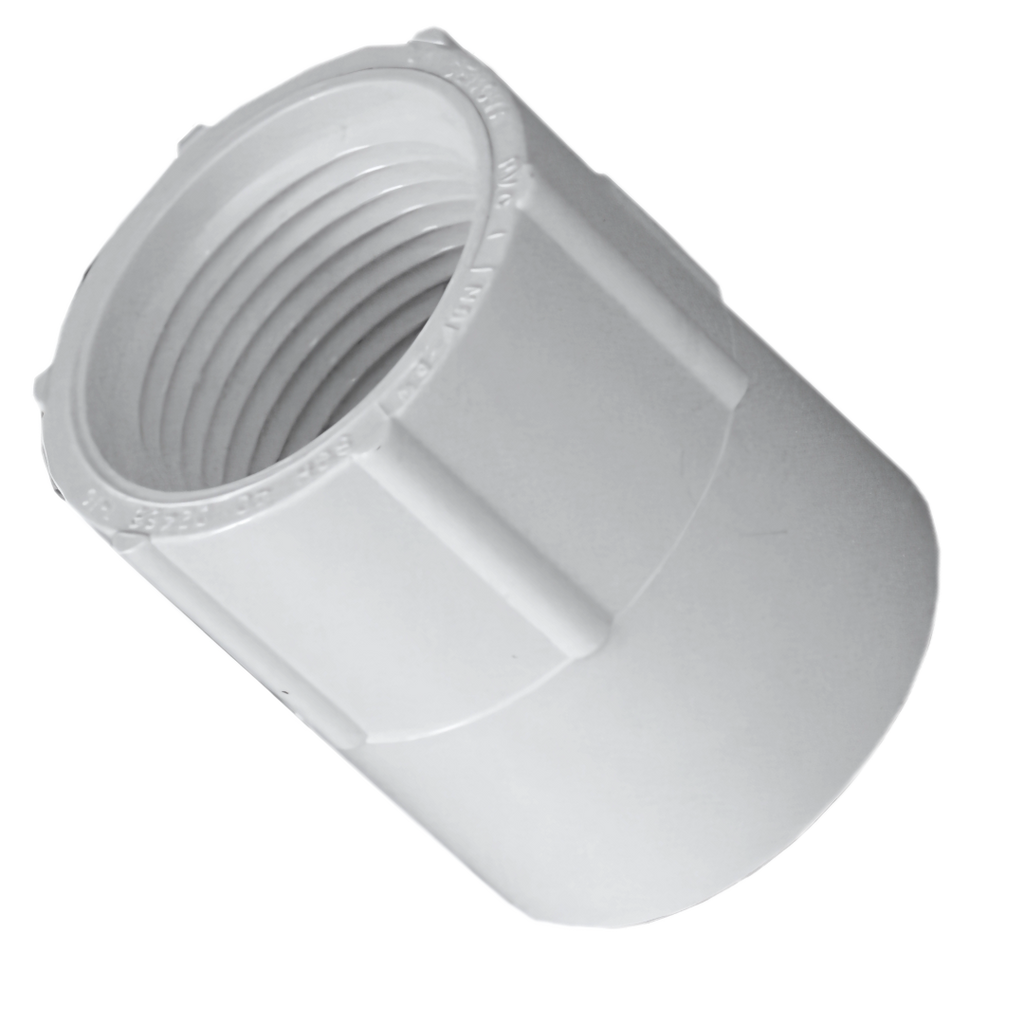

PVC Pressure Female Coupling

PVC Pressure Female Coupling – Category 18

Description:
PVC Pressure Female Couplings are designed to join plain-ended PVC pressure pipe to a female-threaded connection of the same size. These couplings provide a secure, watertight joint while allowing the connection of threaded fittings or accessories. Manufactured from high-quality PVC-U, they are lightweight, durable, and resistant to corrosion, making them suitable for a wide range of pressure pipeline applications.

Key Features:

• Female-threaded ends for secure connections
• Strong, lightweight, and corrosion-resistant PVC-U construction
• Easy installation using solvent cement for plain pipe end
• Suitable for above-ground and underground systems
• Available in sizes from 12mm to 100mm

Applications:

• Potable water and recycled water systems
• Irrigation and turf watering
• Pumped sewerage and effluent pipelines
• Slurry transport
• Pressure sewerage
• Water supply lines

Specifications:

• Material: PVC-U (unplasticized polyvinyl chloride)
• Connection Type: One solvent weld end, one female thread end
• Pressure Rating: PN18 (1800 kPa); pipe available from PN4.5 (450 kPa) to PN18
• Temperature Range: 0°C to 50°C (special considerations outside this range)
• Colour: White/off-white
• Standards:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Testing for products in contact with drinking water
  • Watermark Certified

Available Sizes:

• PPF220 — 12mm x 12mm FI (EQ)
• PPF221 — 20mm x 20mm FI (EQ)
• PPF222 — 25mm x 25mm FI (EQ)
• PPF223 — 32mm x 32mm FI (EQ)
• PPF224 — 40mm x 40mm FI (EQ)
• PPF225 — 50mm x 50mm FI (EQ)
• PPF225A — 65mm x 65mm FI (EQ)
• PPF226 — 80mm x 80mm FI (EQ)
• PPF227 — 100mm x 100mm FI (EQ)
