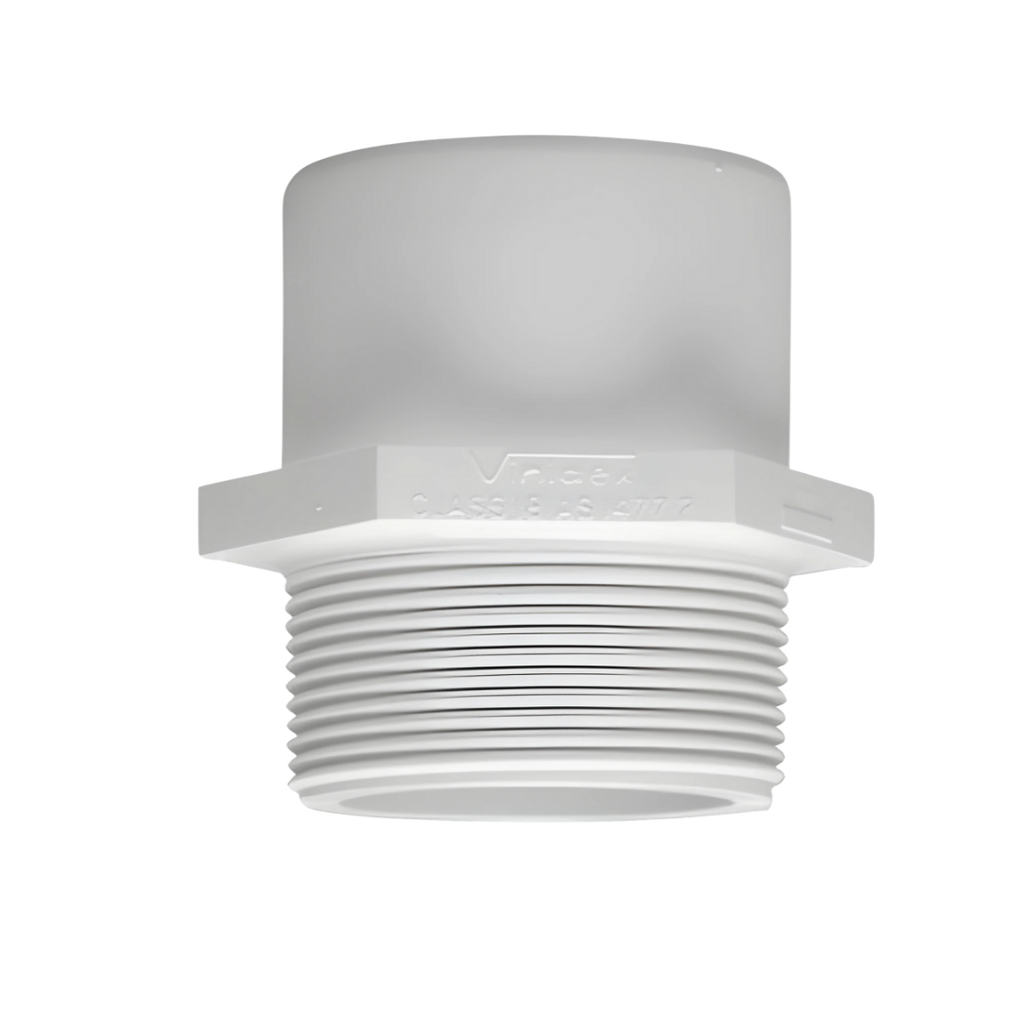

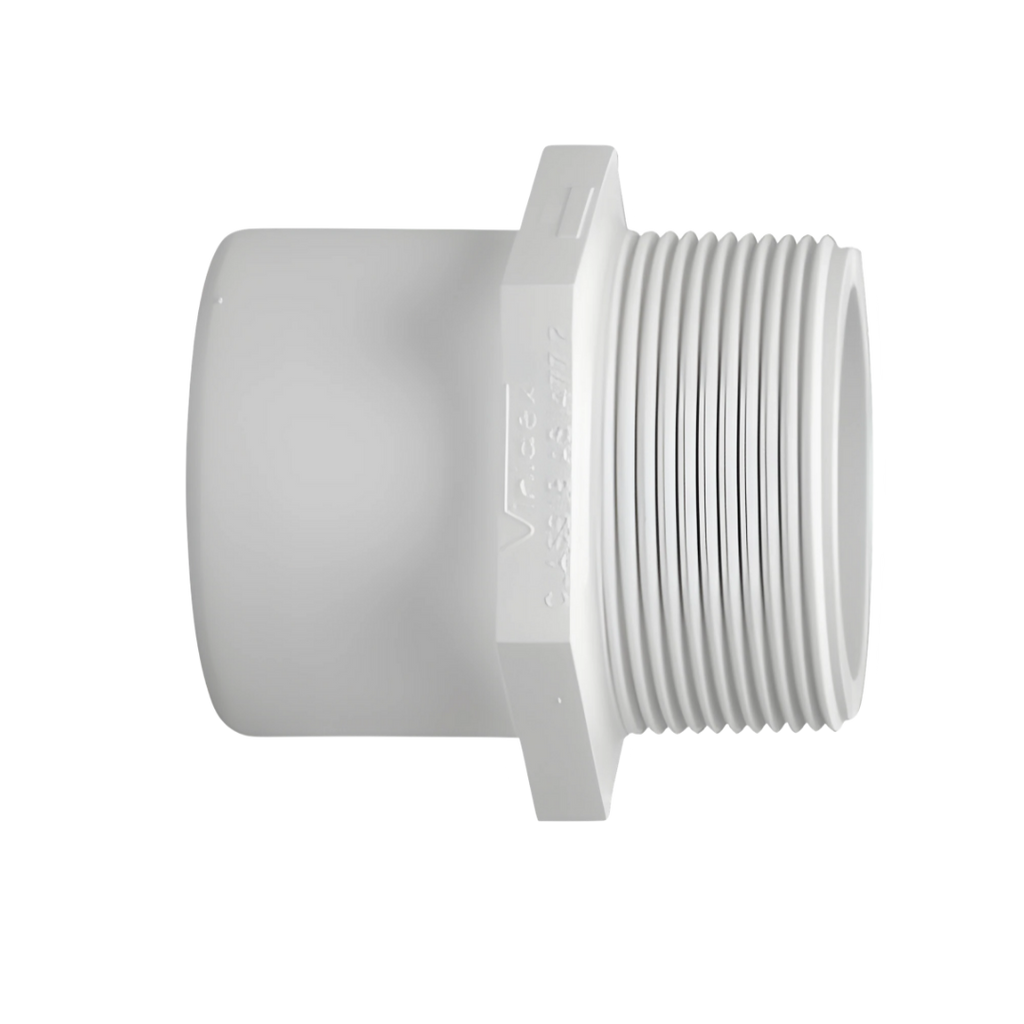

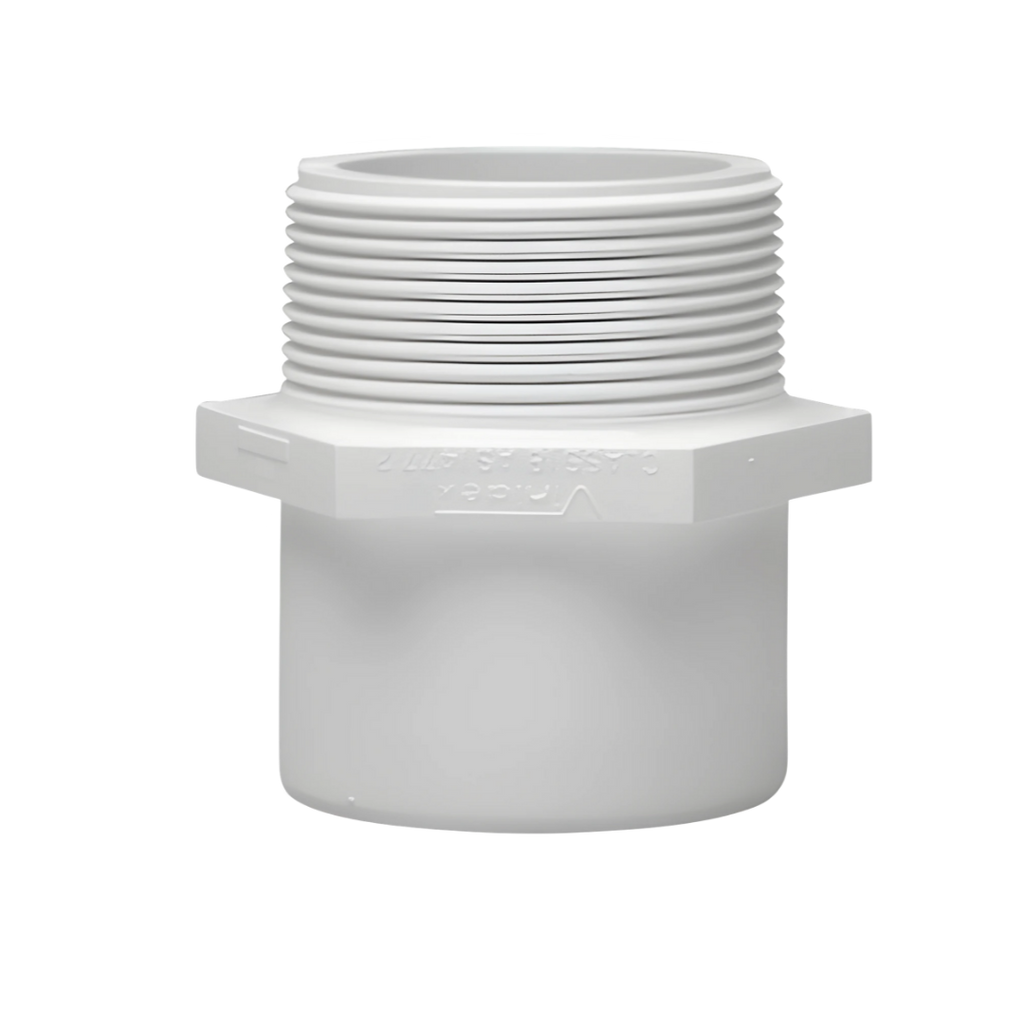

PVC Pressure Male Adaptor

PVC Pressure Male Adaptor (Cat 2)

Description:
The PVC Pressure Male Valve Adaptor (Cat 2) is designed to connect a PVC-U pressure fitting to a female-threaded fitting. Unlike a coupling that fits directly over a pipe, this adaptor is specifically engineered to fit inside a PVC-U pressure fitting (same size as pipe) on one end, while the opposite end features a male BSP thread. This makes it ideal for adapting solvent-welded PVC-U systems to threaded fittings and valves.

Key Features:

• Solvent weld spigot × Male BSP threaded end
• Adapts pressure fittings directly into threaded fittings
• Durable, lightweight, and corrosion-resistant PVC-U construction
• Easy solvent cement jointing (SCJ system)
• High pressure rating up to PN18
• Suitable for both above-ground and underground use
• Available in a wide range of sizes, including reducing options

Applications:

• Potable water supply
• Pumped sewerage and effluent systems
• Irrigation and turf watering
• Slurry transport
• Pressure sewerage networks
• Recycled water distribution
• Gas installations (only with approved yellow PVC pipe)

Specifications:

• Material: PVC-U (unplasticised polyvinyl chloride)
• Type: Male Valve Adaptor (Cat 2)
• Connection: Solvent weld spigot × Male BSP thread
• Pressure Rating: PN18 (1800 kPa)
• Pipe Compatibility: Suitable with PN4.5–PN18 pressure pipe
• Temperature Range: 0°C to 50°C (special considerations outside this range)
• Standards Compliance:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Testing for products in contact with drinking water
• Certification: WaterMark approved
• Curing Time: 24 hours before pressurisation

Performance Notes:

• Ideal for adapting PVC fittings directly into threaded valves or components
• Rigid and long-lasting under pressure conditions
• White or off-white finish for professional installations

Variants (Sizes):

• PPF001 — 12mm × 12mm MI (Equal)
• PPF003 — 20mm × 20mm MI (Equal)
• PPF004 — 25mm × 12mm MI
• PPF005 — 25mm × 20mm MI
• PPF006 — 25mm × 25mm MI (Equal)
• PPF010 — 32mm × 32mm MI (Equal)
• PPF013 — 40mm × 25mm MI
• PPF015 — 40mm × 40mm MI (Equal)
• PPF020 — 50mm × 40mm MI
• PPF021 — 50mm × 50mm MI (Equal)
• PPF023 — 80mm × 80mm MI (Equal)
• PPF025 — 100mm × 100mm MI (Equal)
