DWV 90 Degree Junction

DWV 90 Degree Junction

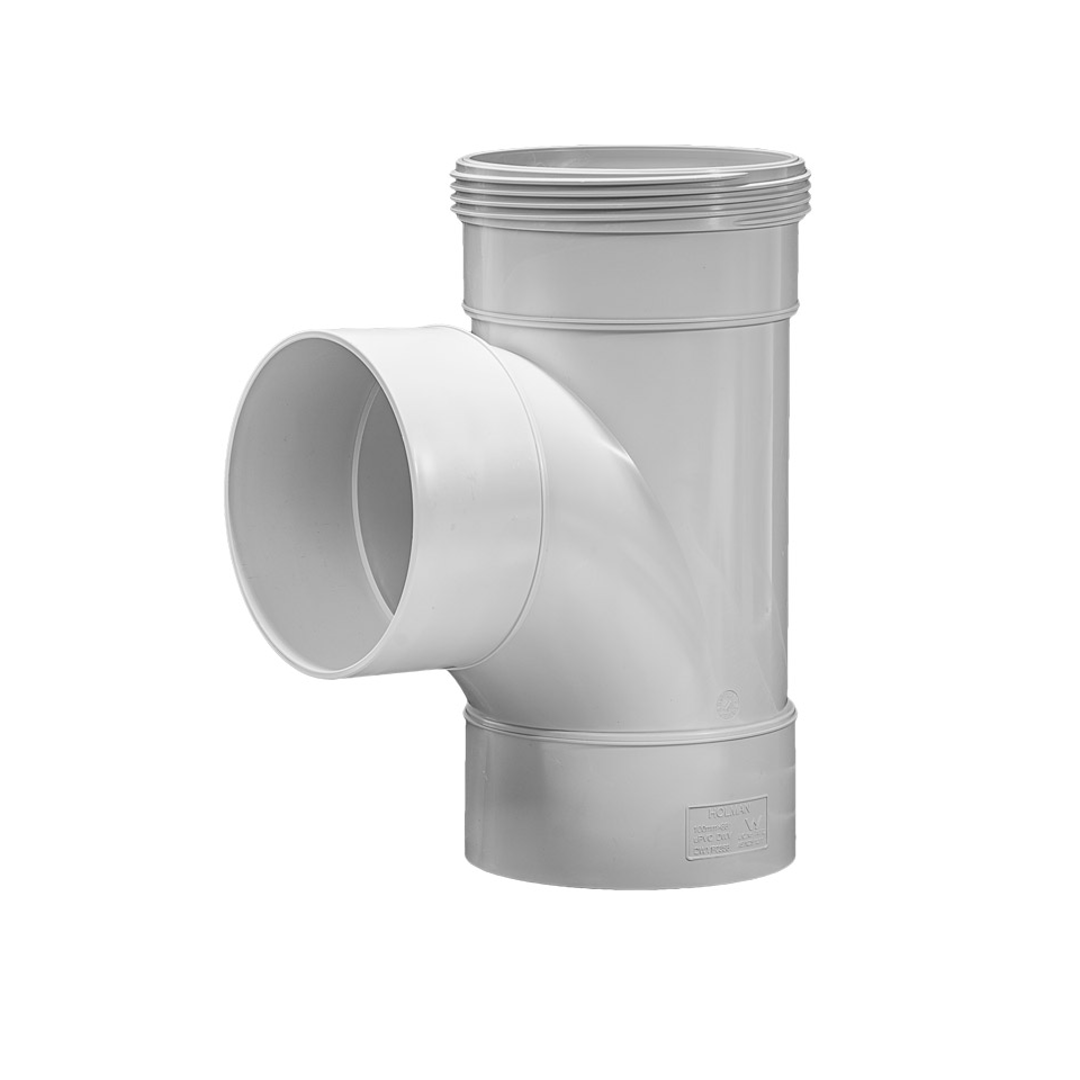

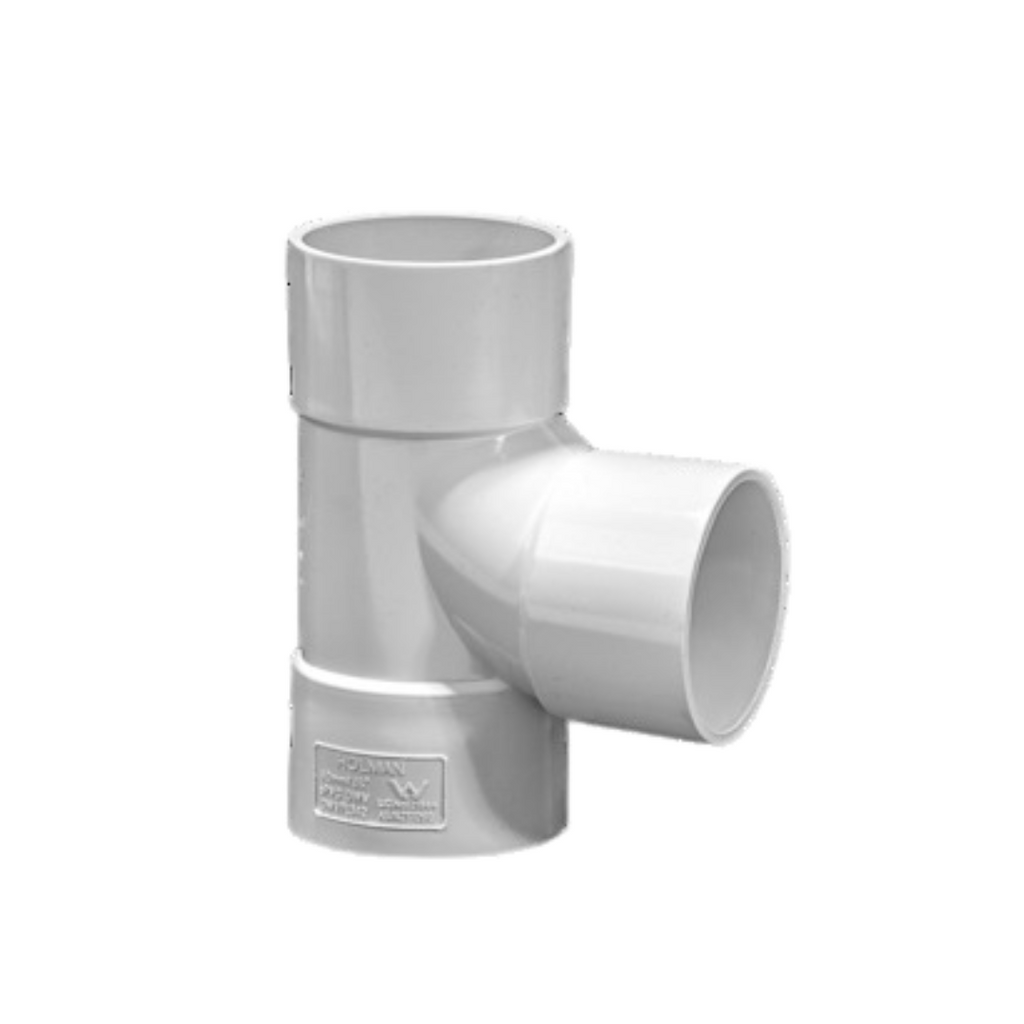

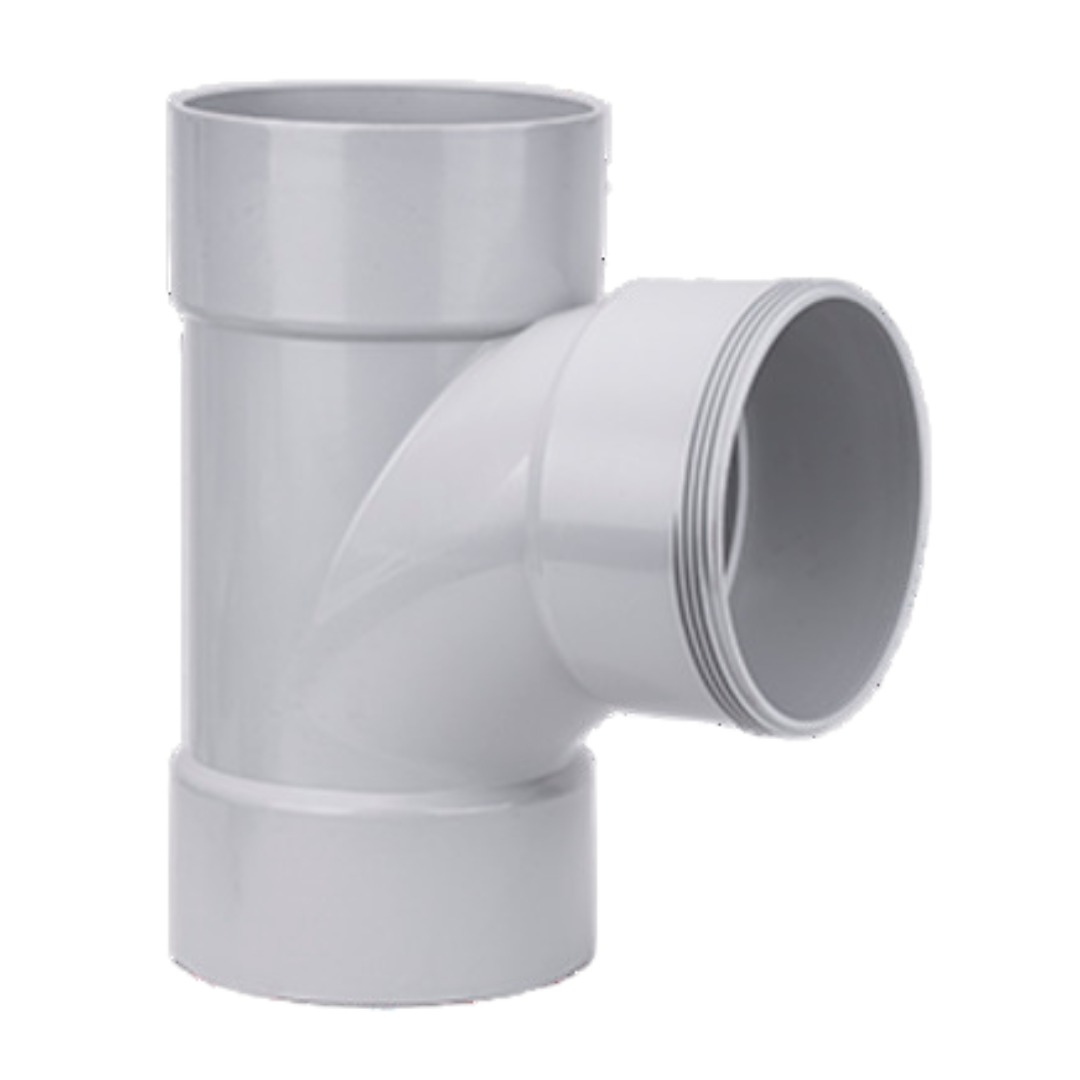

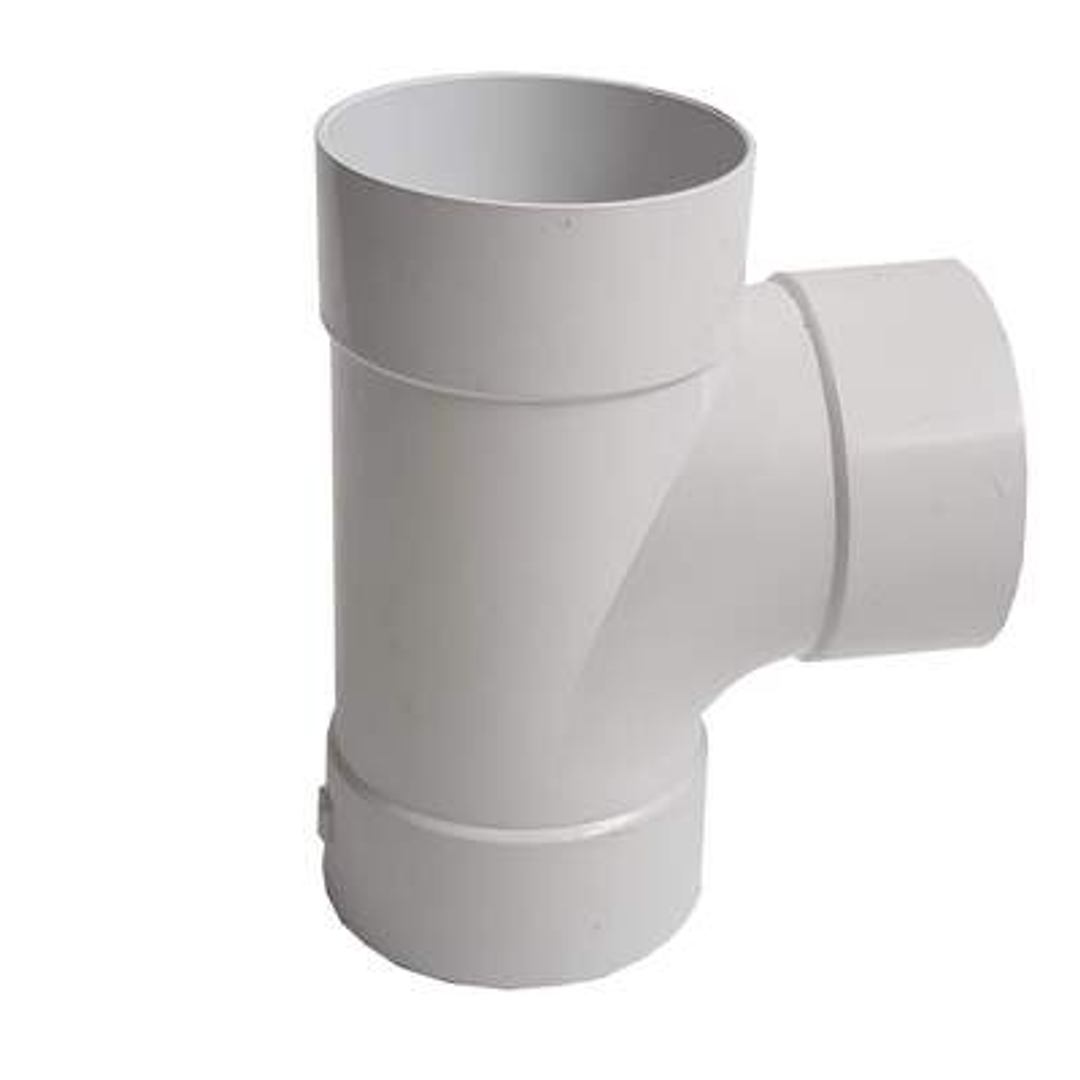

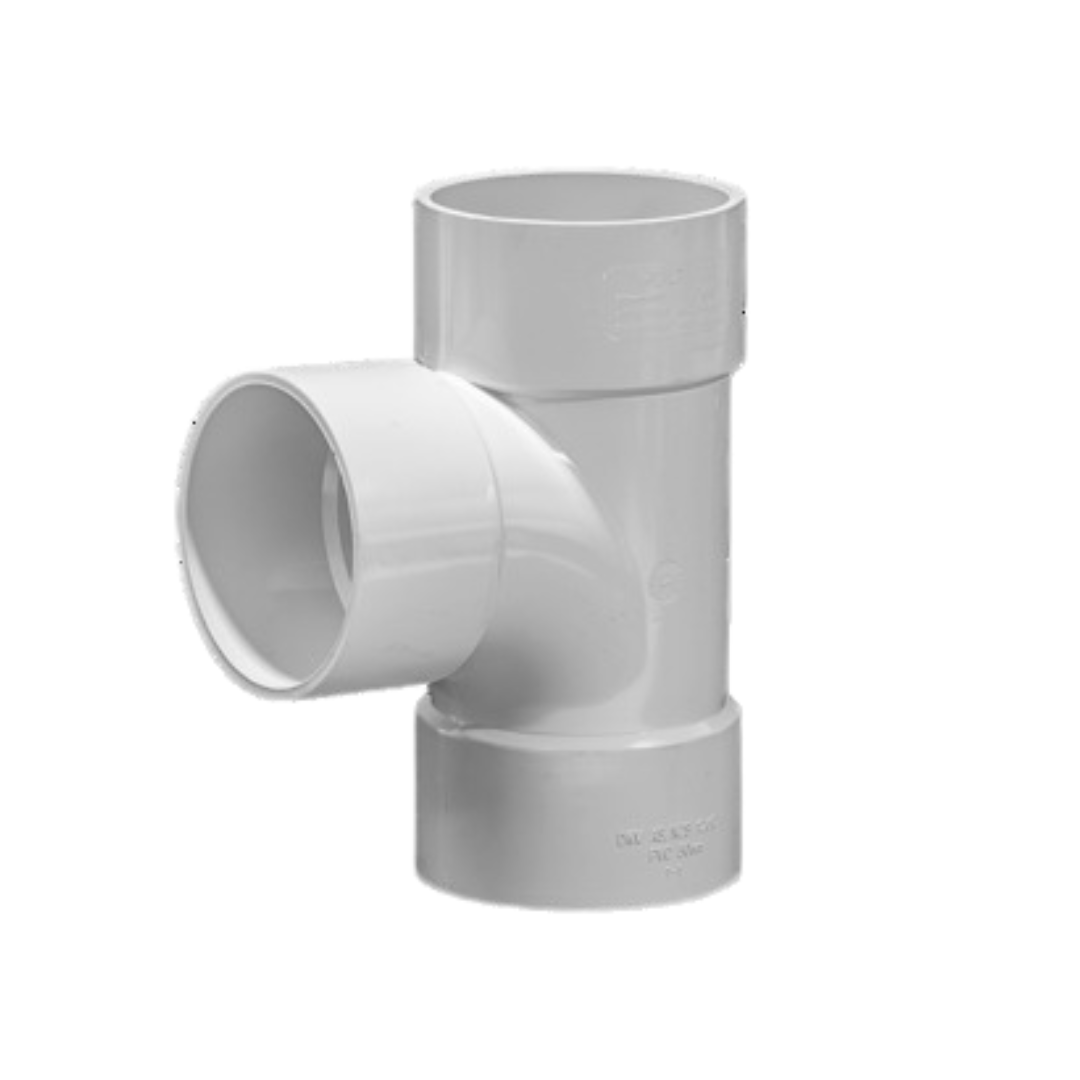

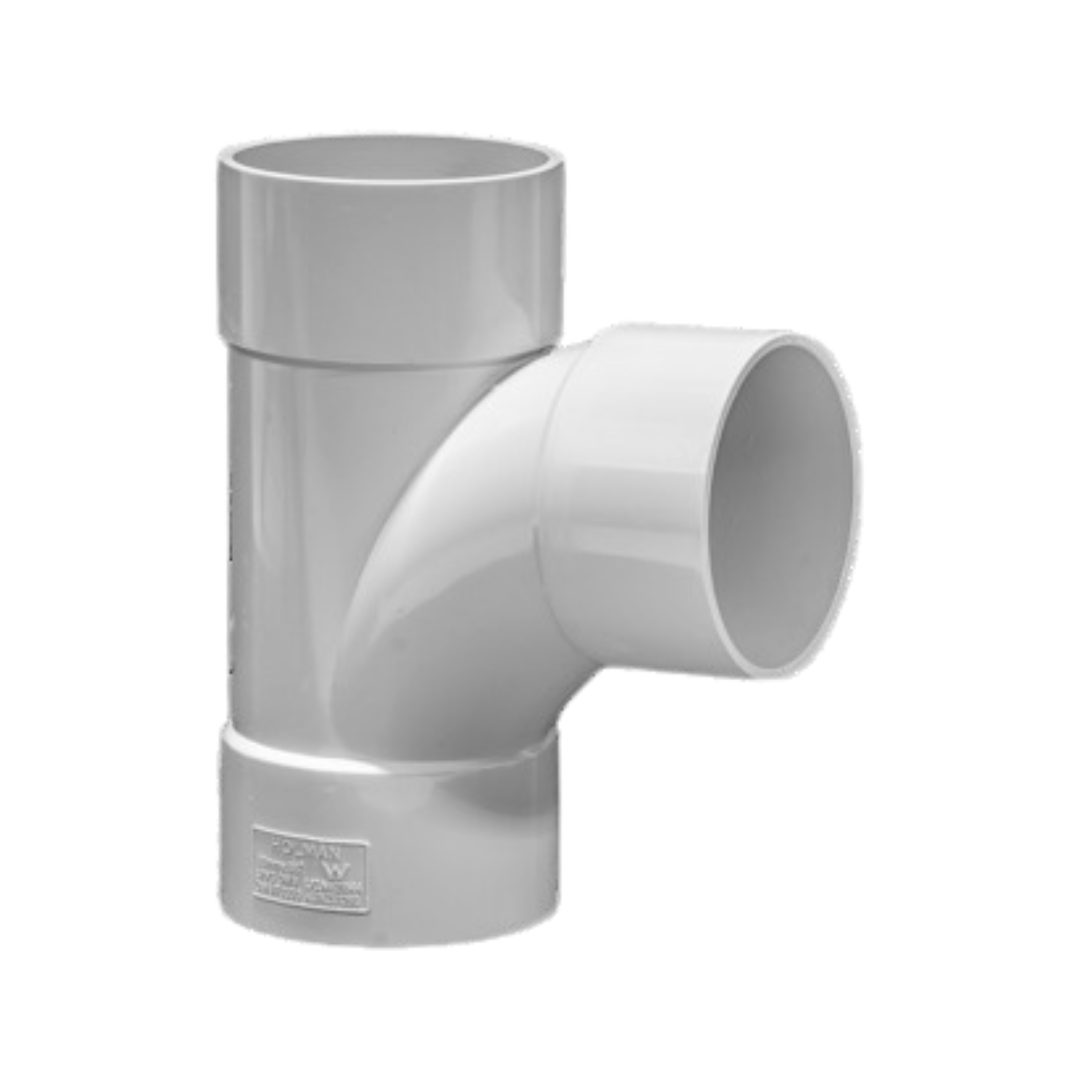

The DWV 90 Degree Junction is a drainage fitting designed to allow a branch connection into a main pipe run at a 90-degree angle within Drain, Waste & Vent (DWV) systems. It is commonly used to combine or redirect flow in residential, commercial, and civil drainage installations.

Manufactured from durable PVC-U, this fitting is designed for long-term performance in non-pressure systems and is suitable for both underground and above-ground applications.

Key Features

• 90° DWV junction fitting
• Allows branch connection into main pipeline
• Smooth internal design to support efficient flow
• Manufactured from durable PVC-U
• Solvent cement joint (SCJ) connection system
• Suitable for non-pressure drainage systems
• Compatible with standard DWV pipework

Material & Construction

• Material: PVC-U (Unplasticised Polyvinyl Chloride)
• Corrosion, chemical, and biological resistant
• Lightweight yet rigid construction
• Designed for solvent cement joining
• Pale grey colour for DWV identification

Applications

• Sewer and wastewater systems
• Stormwater drainage networks
• Greywater and blackwater systems
• Residential plumbing installations
• Commercial and civil drainage infrastructure
• Branching connections in pipework layouts

Performance & Standards

• Operating temperature range: 0°C to 50°C
• Suitable for gravity-fed non-pressure systems
• Complies with AS/NZS 1260 standards for DWV systems
• Designed for underground and limited above-ground use

Product Benefits

• Enables efficient branching in drainage systems
• Strong and durable PVC-U construction
• Reliable solvent-weld connections
• Suitable for a wide range of plumbing applications
• Resistant to corrosion and chemical exposure
• Easy to install using standard DWV methods

Why Choose the DWV 90° Junction?

The DWV 90 Degree Junction is an essential fitting for creating branch connections in drainage systems, offering reliable performance, durability, and compatibility with standard PVC-U DWV pipework in both residential and commercial installations.
