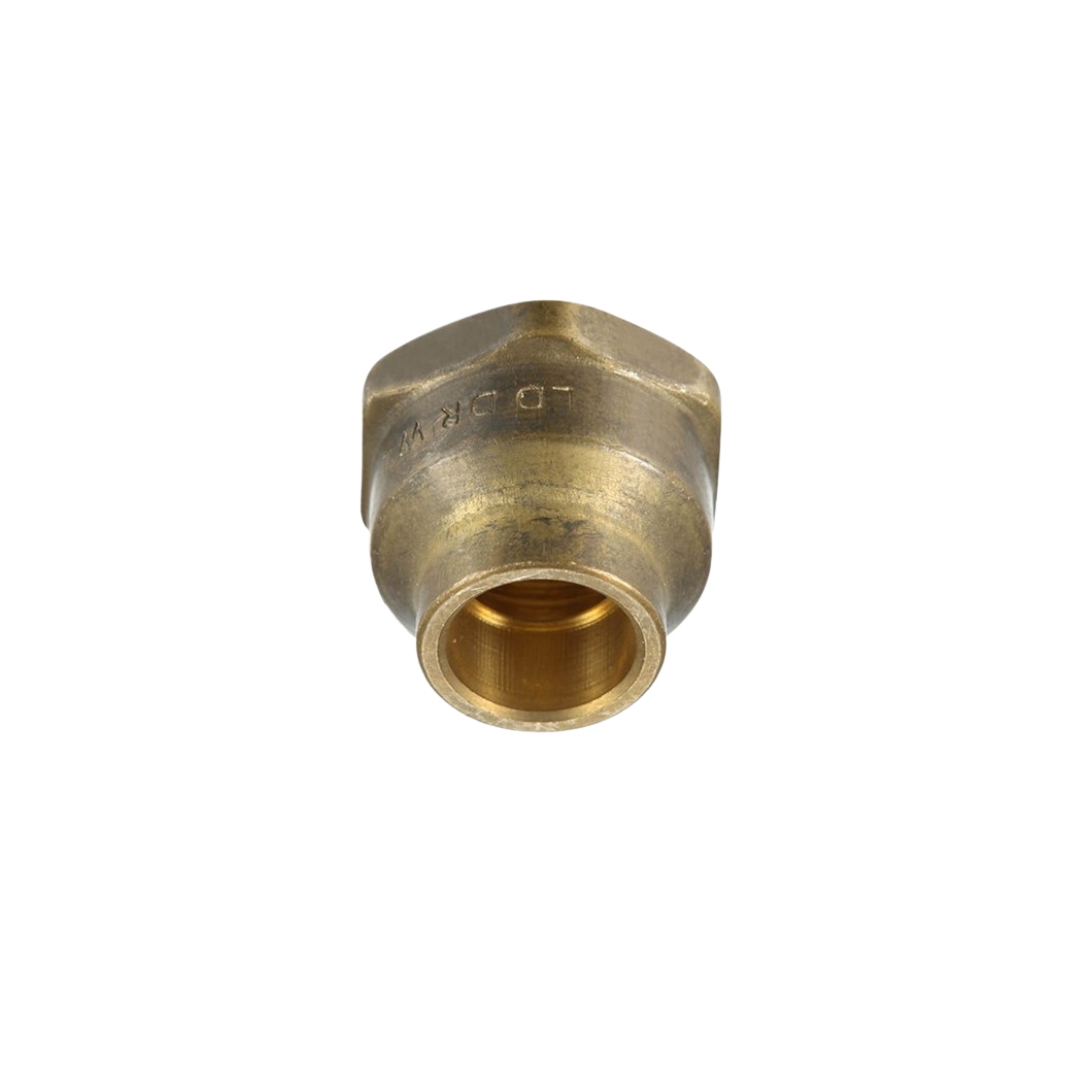

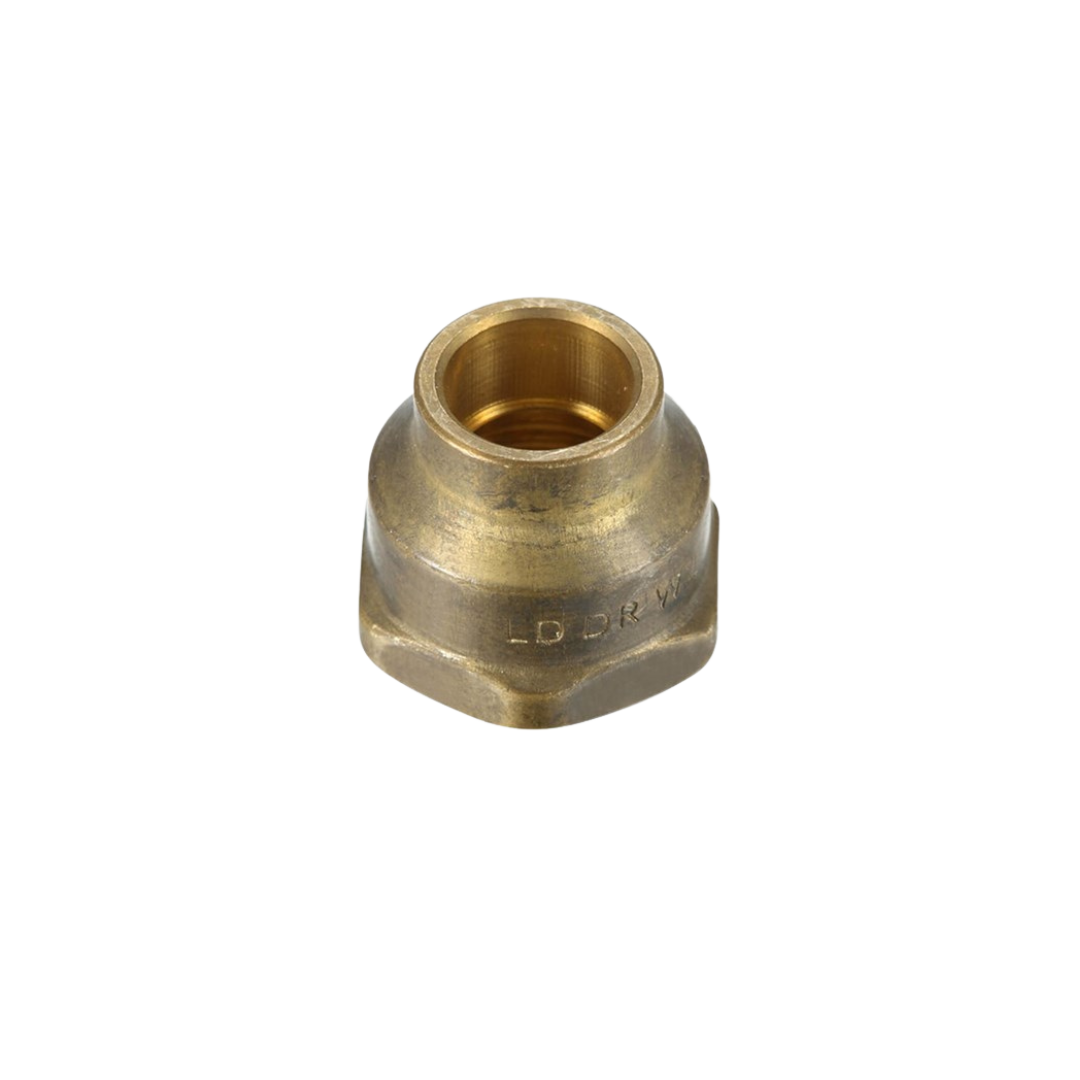

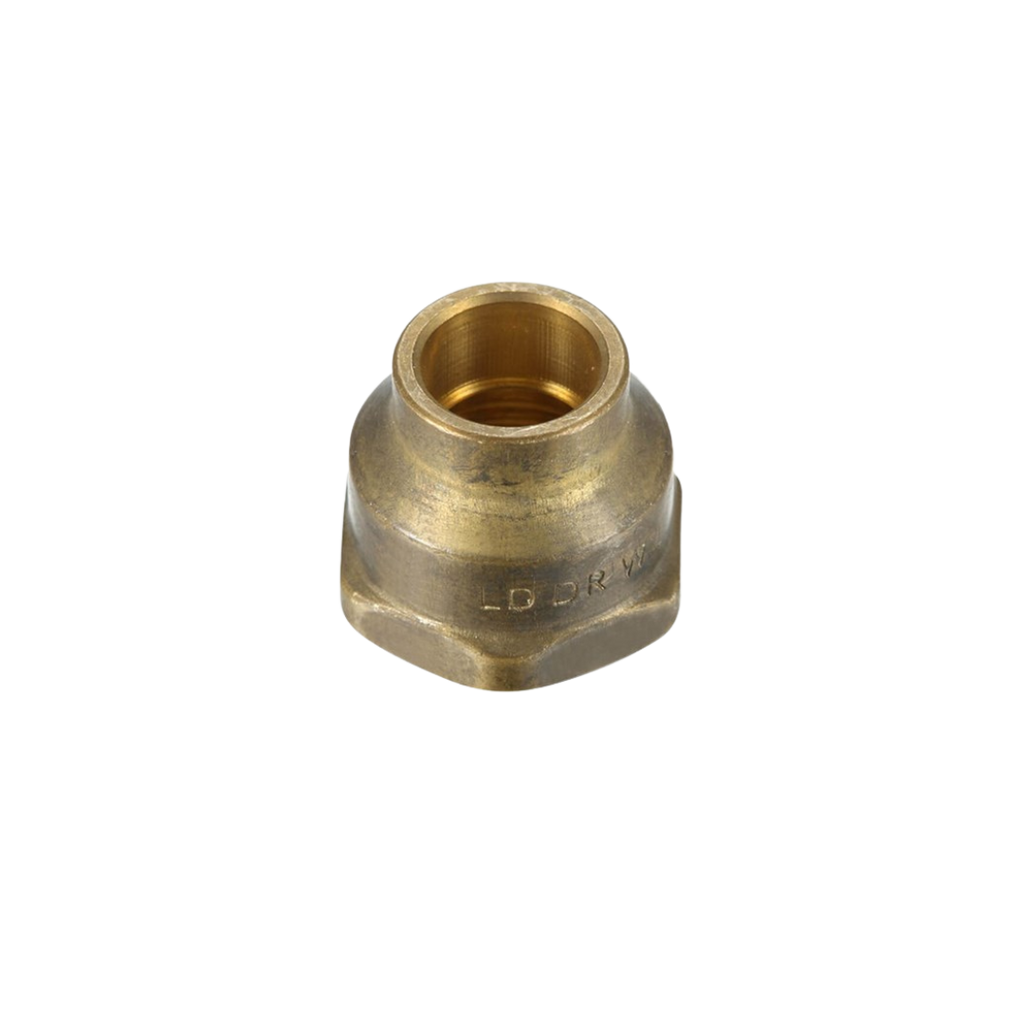

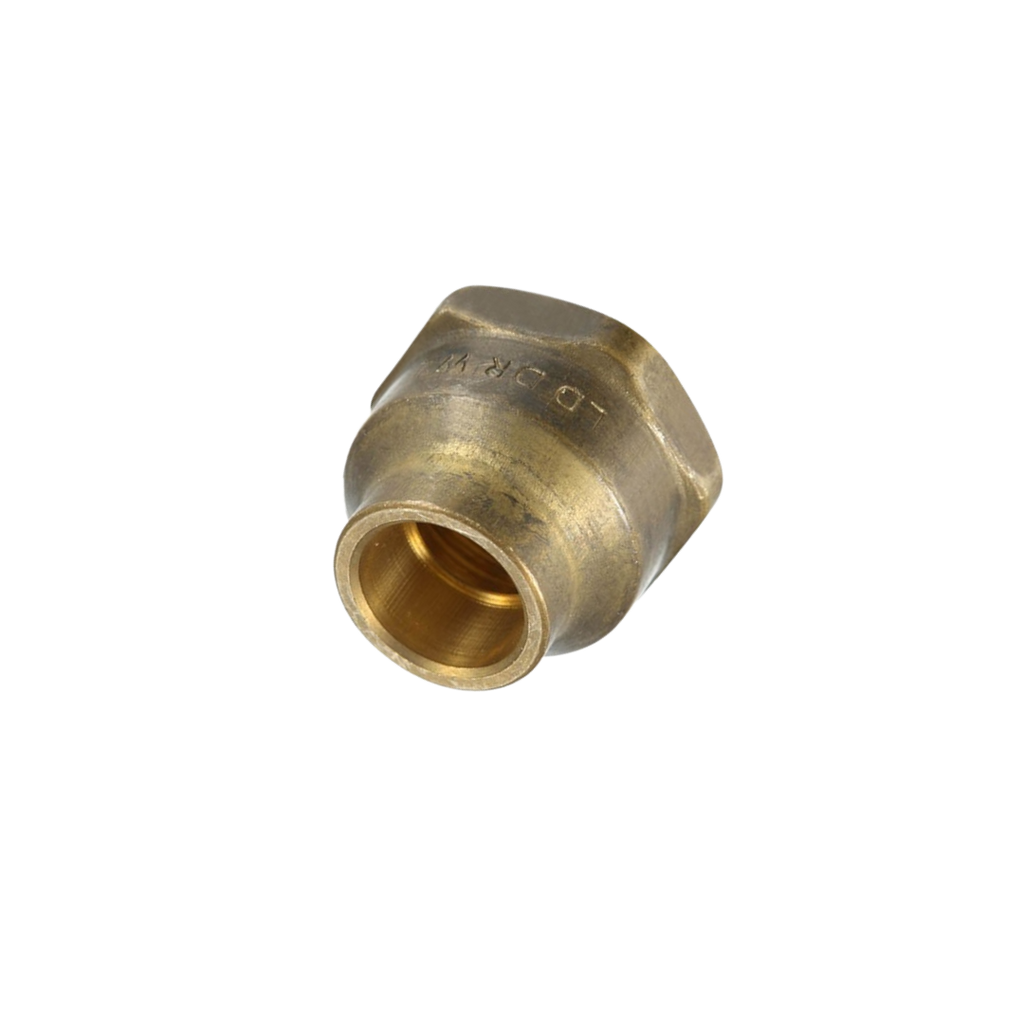

Brass Tube Bush Female

Brass Tube Bush Female

The Brass Tube Bush Female is a BSP fitting designed to connect copper pipework to BSP threaded fittings. Using silver brazing alloy, the copper tube is brazed into the bush, which is then screwed into a male BSP fitting. This makes it a reliable choice for water and gas systems where copper-to-threaded transitions are required.

Key Features:

• Material: Made from high-quality DZR (dezincification-resistant) brass, ideal for Australia’s harsh conditions
• Thread Type: BSP tapered female thread for a secure and leak-free fit
• Applications: Connects copper pipe to BSP fittings using silver brazing alloy joints
• Strength & Durability: Excellent mechanical strength, corrosion resistance, and long-lasting performance
• Compliance: WaterMark approved and fully compliant with AS3688 standards
• Performance: Maximum working temperature of 80°C and maximum pressure rating of 2000 kPa
• Installation: For best results, use with Teflon tape and sealing paste (e.g. Mirror Paste)

Why Choose Brass Tube Bush Female Fittings?

Screwed brass fittings provide durability, safety, and compliance with Australian Standards, ensuring they are suitable for both drinking water and gas applications. Manufactured from DZR brass, these fittings resist corrosion and dezincification, ensuring long service life. Much of the brass is recycled, and every batch is rigorously tested for strength and compliance, giving you confidence in quality and performance.

Important: Installation must be carried out by a licensed plumber when used in pipework connected to mains water or gas.

Available Sizes:

• FSB2100 — Brass Tube Bush Female 12mm FI x 12mm (EQ)
• FSB2101 — Brass Tube Bush Female 20mm FI x 20mm (EQ)
• FSB2102 — Brass Tube Bush Female 25mm FI x 25mm (EQ)
• FSB2103 — Brass Tube Bush Female 32mm FI x 32mm (EQ)
• FSB2104 — Brass Tube Bush Female 40mm FI x 40mm (EQ)
• FSB2105 — Brass Tube Bush Female 50mm FI x 50mm (EQ)
• FSB2107 — Brass Tube Bush Female 65mm FI x 65mm (EQ)
• FSB2108 — Brass Tube Bush Female 75mm FI x 75mm (EQ)
• FSB2109 — Brass Tube Bush Female 100mm FI x 100mm (EQ)
