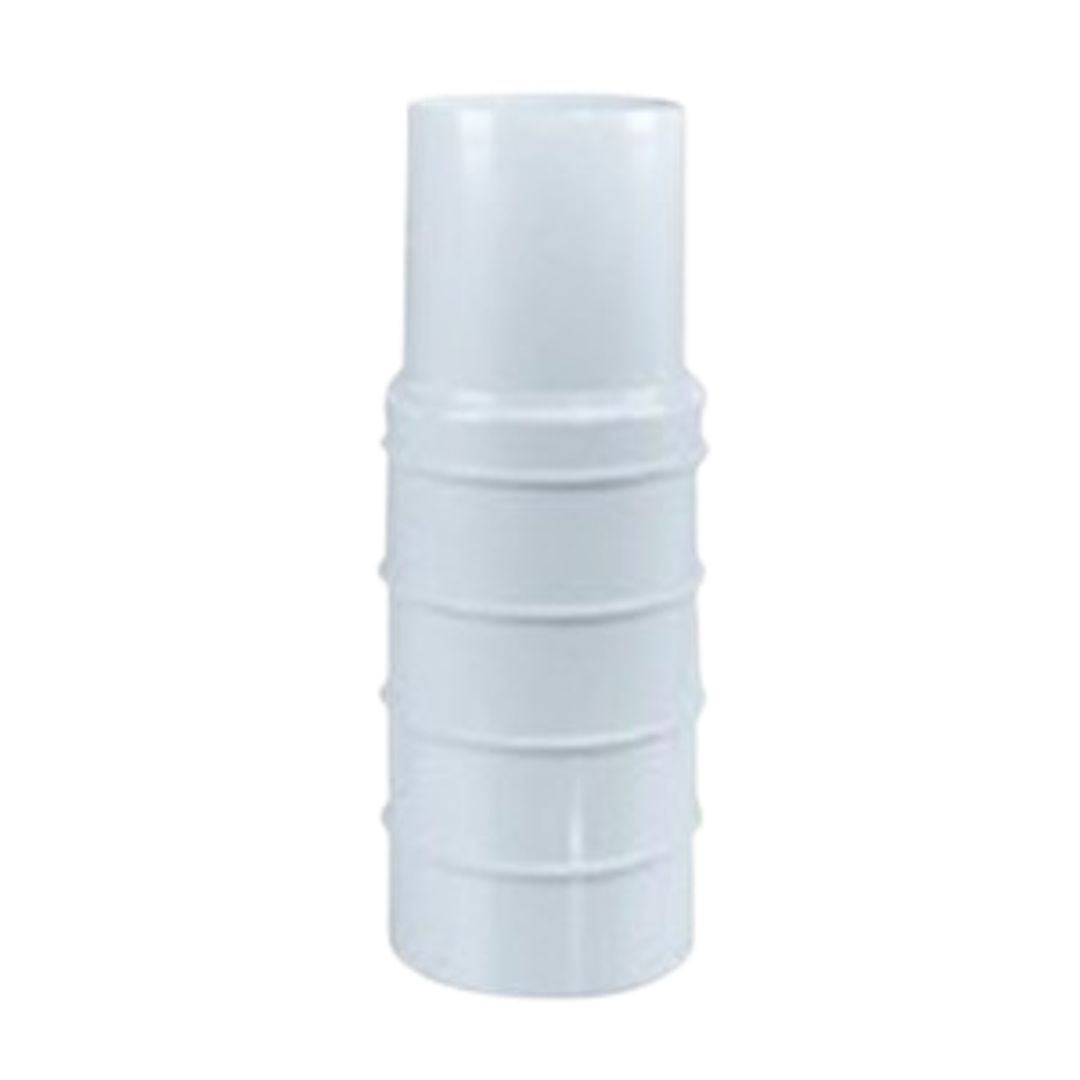

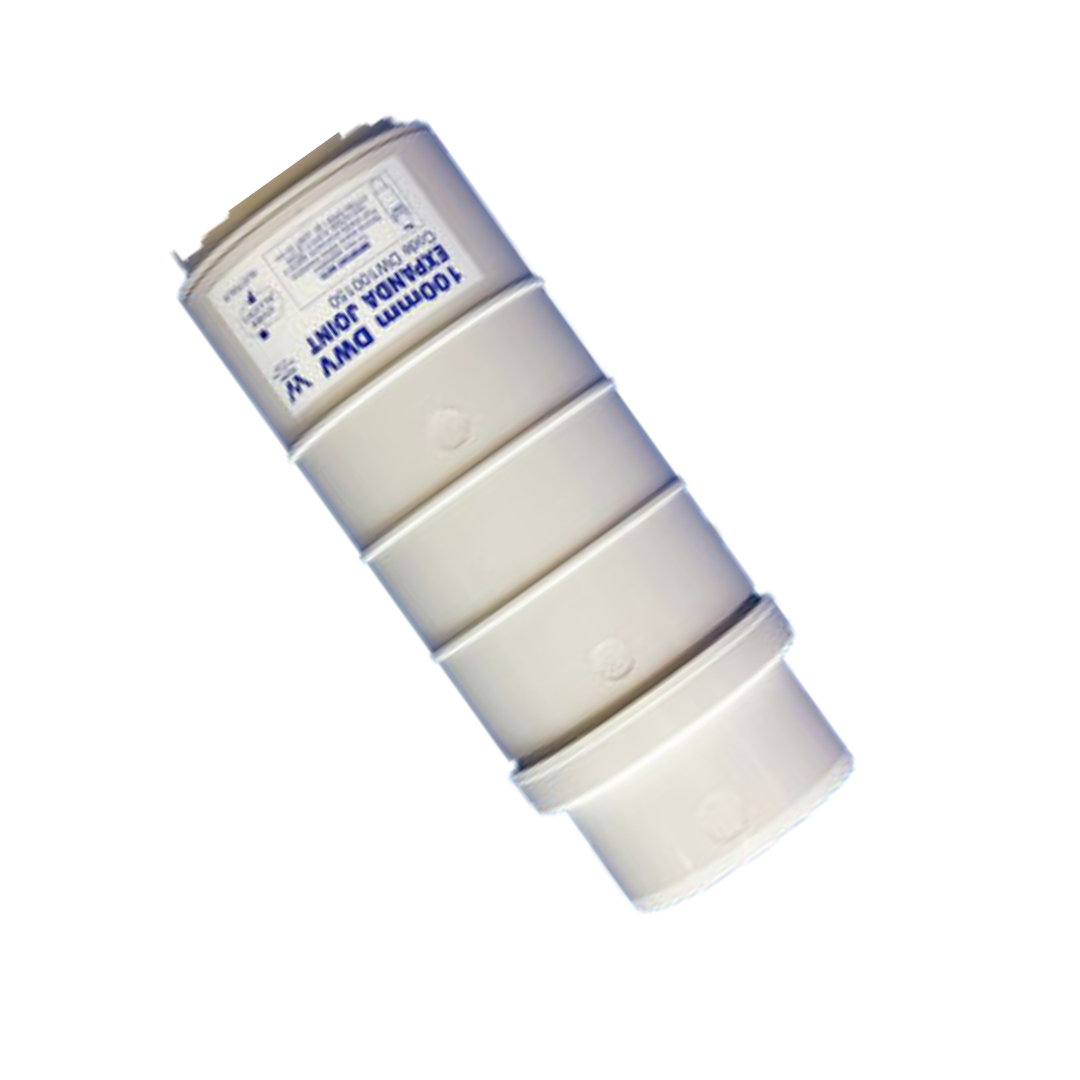

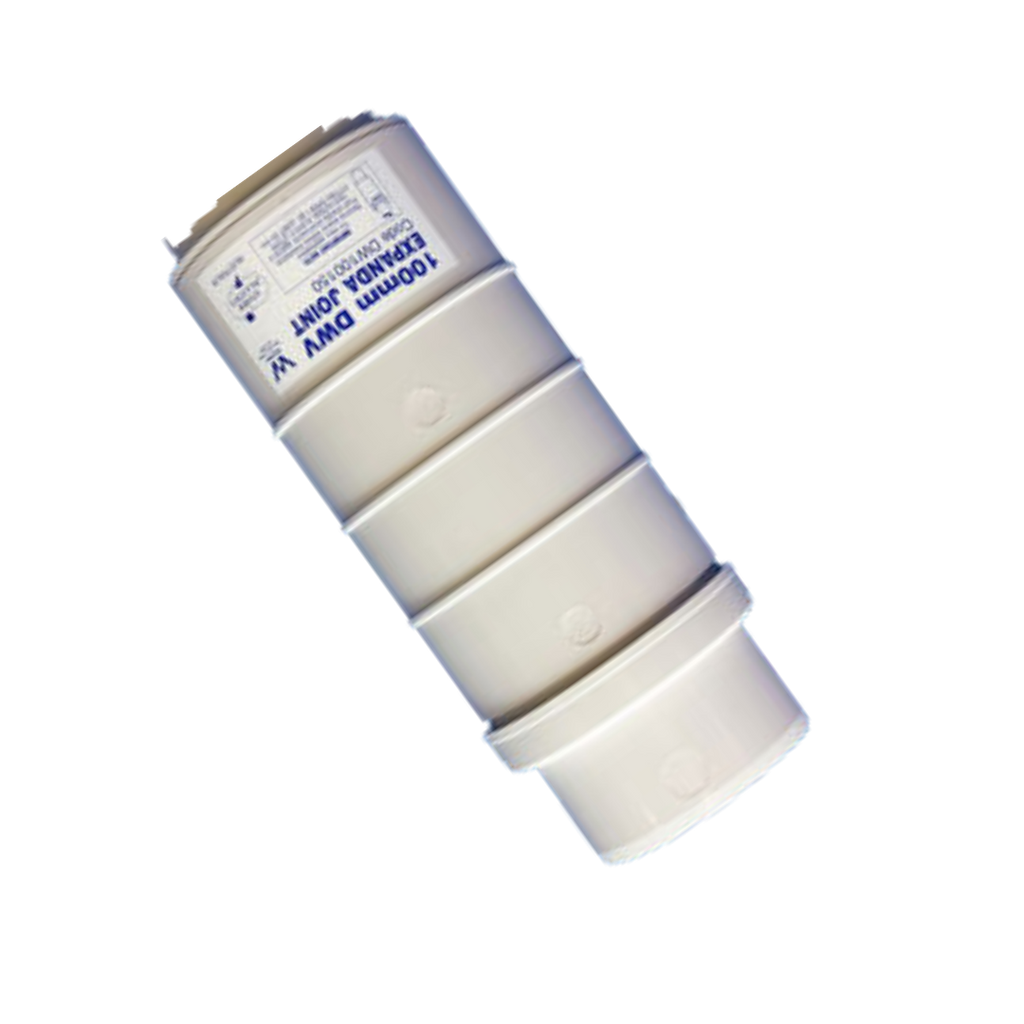

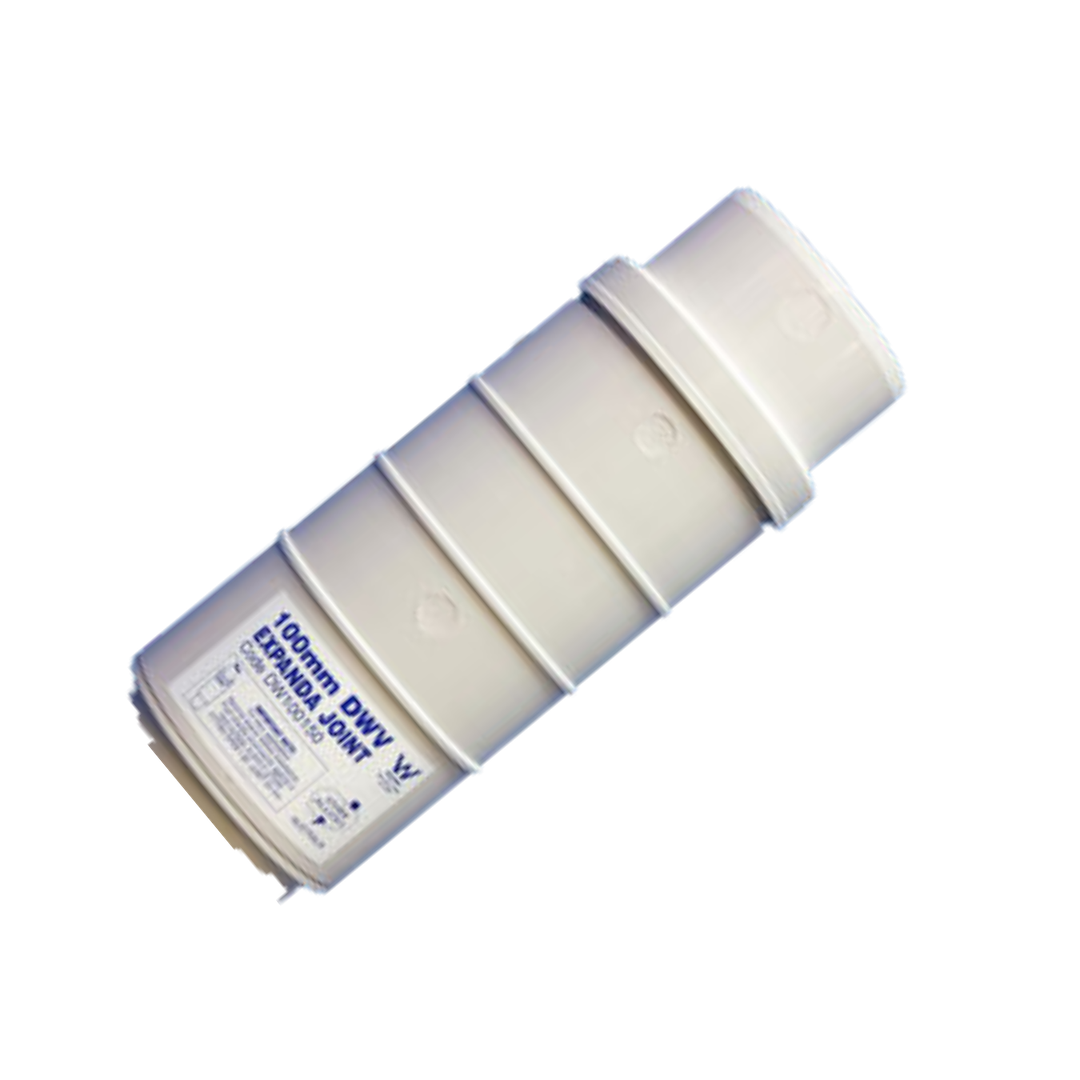

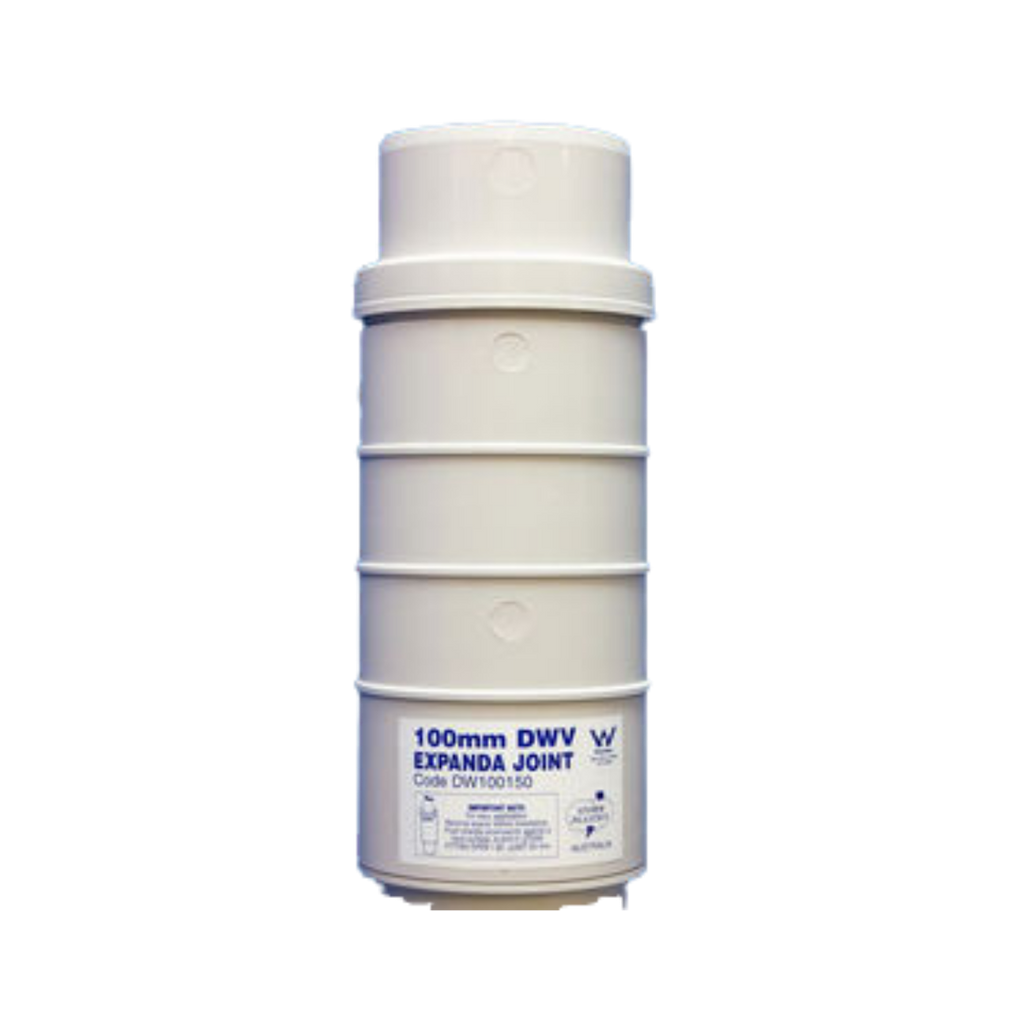

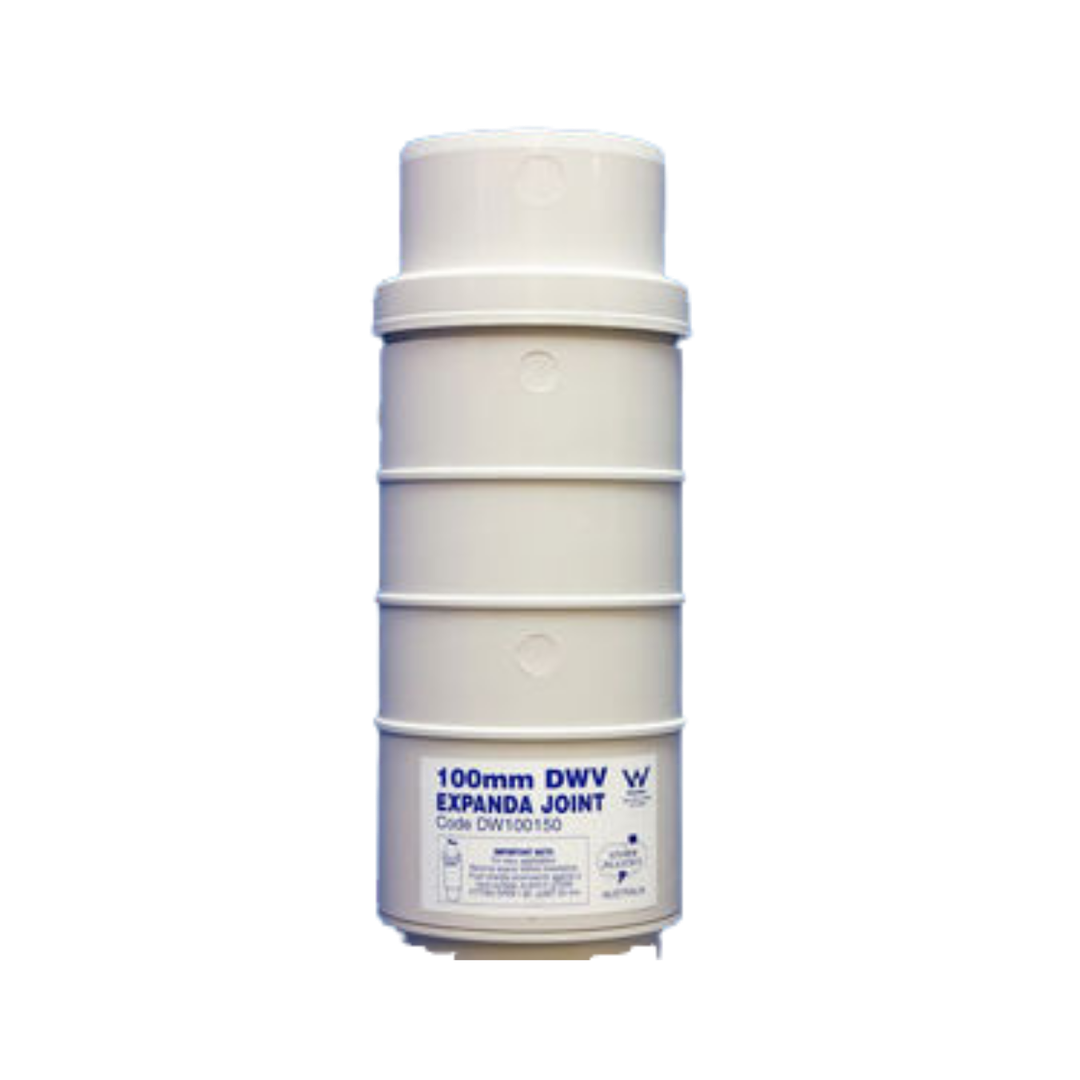

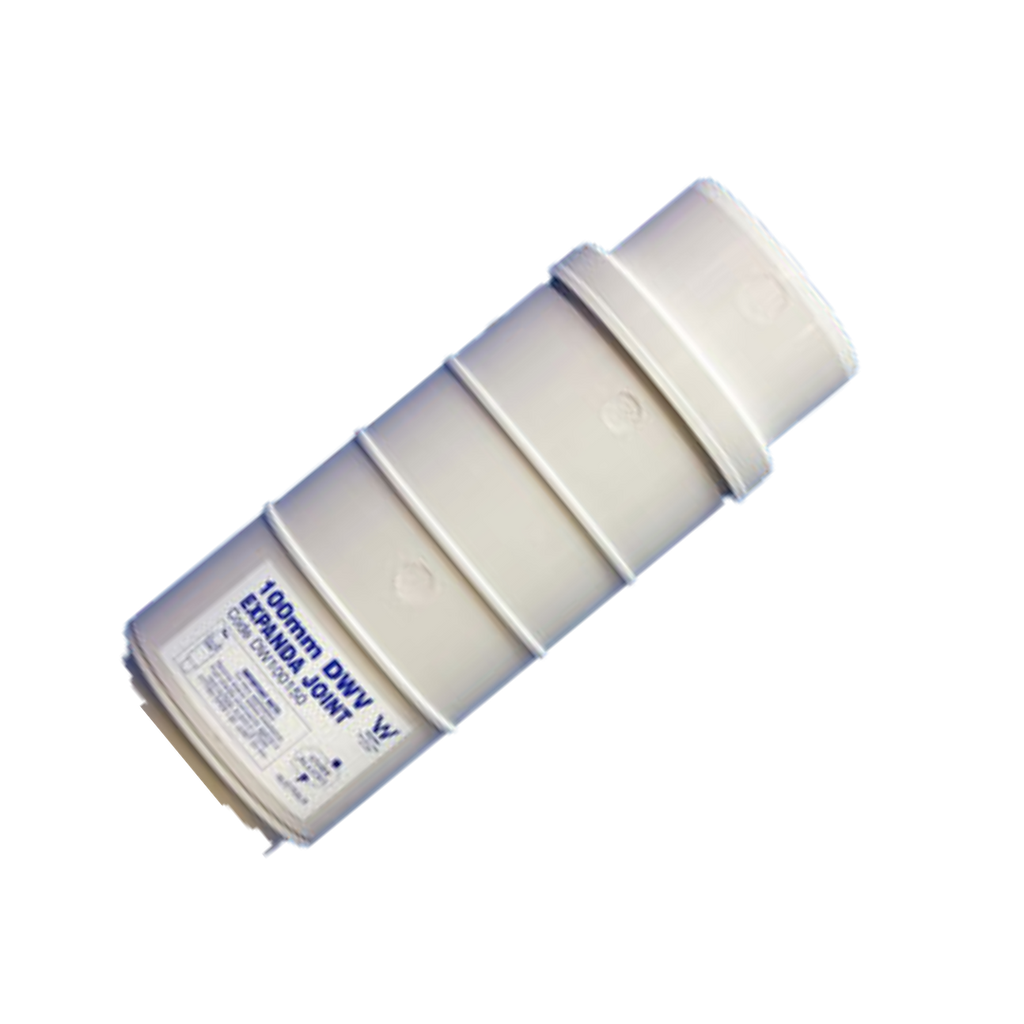

DWV Coupling Expansion Assembly Extended 100mm 15130

The DWV Coupling Expansion Assembly Extended 100mm 15130 is designed to provide flexibility and movement allowance within 100mm DWV drainage pipework. Featuring an M&F connection and an integrated expansion joint, this PVC fitting helps accommodate changes in pipe length caused by thermal movement.

The Expanda Joint allows approximately 150mm of movement, providing additional flexibility compared with a standard fixed coupling. This makes it a practical solution for DWV drainage installations where expansion and contraction need to be accommodated.

The fitting measures approximately 470mm when fully open and 320mm when closed, providing a substantial adjustment range to assist with installation and movement within the drainage system.

Key Features

• 100mm DWV expansion coupling assembly
• Extended Expanda Joint design
• M&F connection
• PVC construction
• Allows approximately 150mm movement
• Approximately 470mm open
• Approximately 320mm closed
• Designed for DWV drainage applications
• Model: 15130

Product Specifications

Product Type: DWV M&F Expansion Joint
Model: 15130
Size: 100mm
Connection: M&F
Material: PVC
Movement: Approximately 150mm
Fitting Length – Open: Approximately 470mm
Fitting Length – Closed: Approximately 320mm

Designed to Accommodate Pipe Movement

Temperature changes can cause drainage pipework to expand and contract. The 100mm DWV Expanda Joint provides approximately 150mm of movement, helping accommodate this change within the drainage installation.

Its extended design allows the fitting to adjust between approximately 320mm and 470mm, giving installers useful flexibility when positioning and connecting DWV pipework.

Practical Solution for DWV Drainage

With its M&F configuration and PVC construction, the DWV Coupling Expansion Assembly Extended 100mm 15130 is a practical choice for plumbing and drainage installations requiring an expansion joint.

The extended adjustment range can help simplify installation where additional movement allowance is required, making it suitable for professional plumbing and drainage applications.

Always ensure the fitting is suitable for the intended application and installed in accordance with relevant plumbing standards and manufacturer recommendations.

Shop the DWV Coupling Expansion Assembly Extended 100mm 15130 at Burdens Bathrooms for your next plumbing and drainage project.
