Sharkbite Female Connector

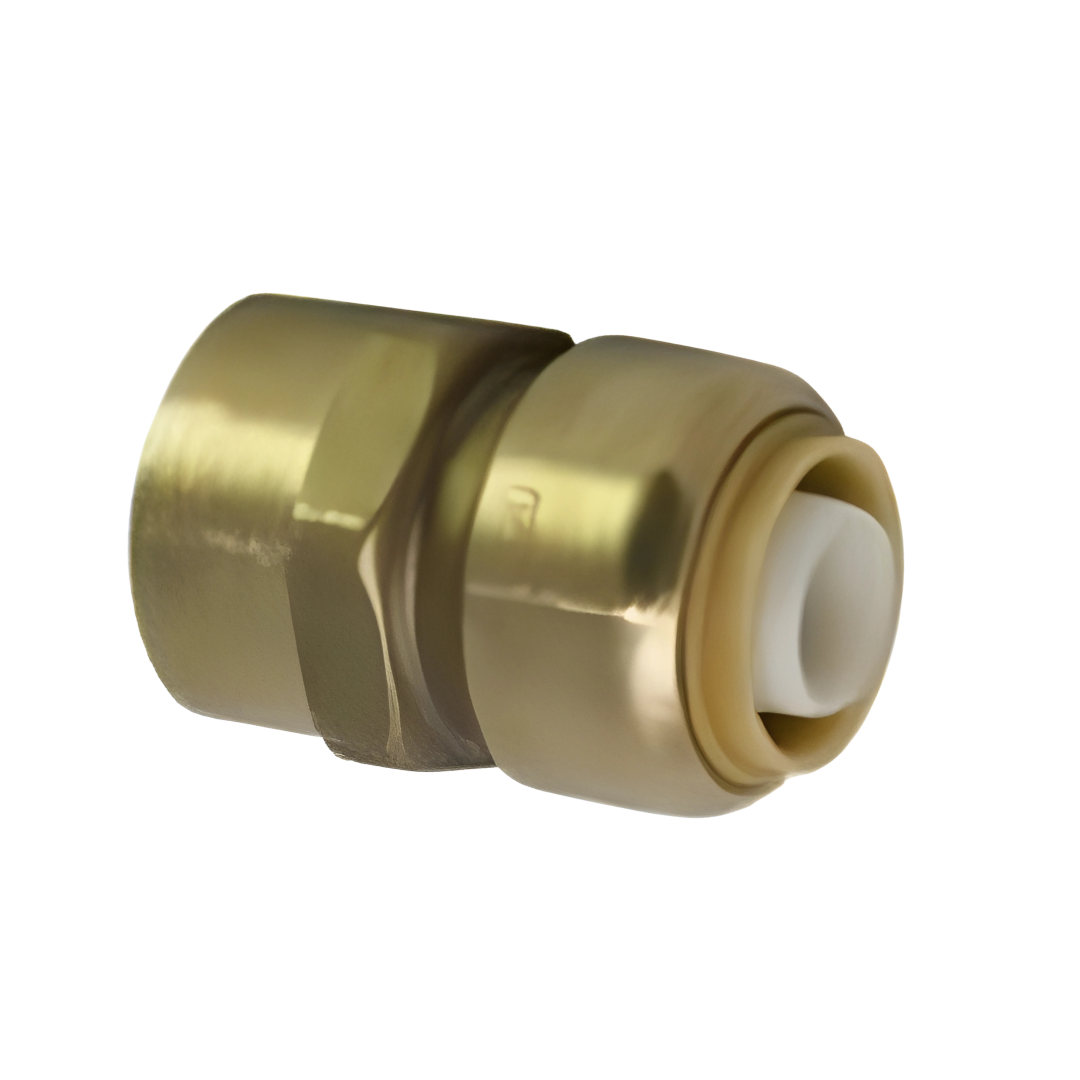

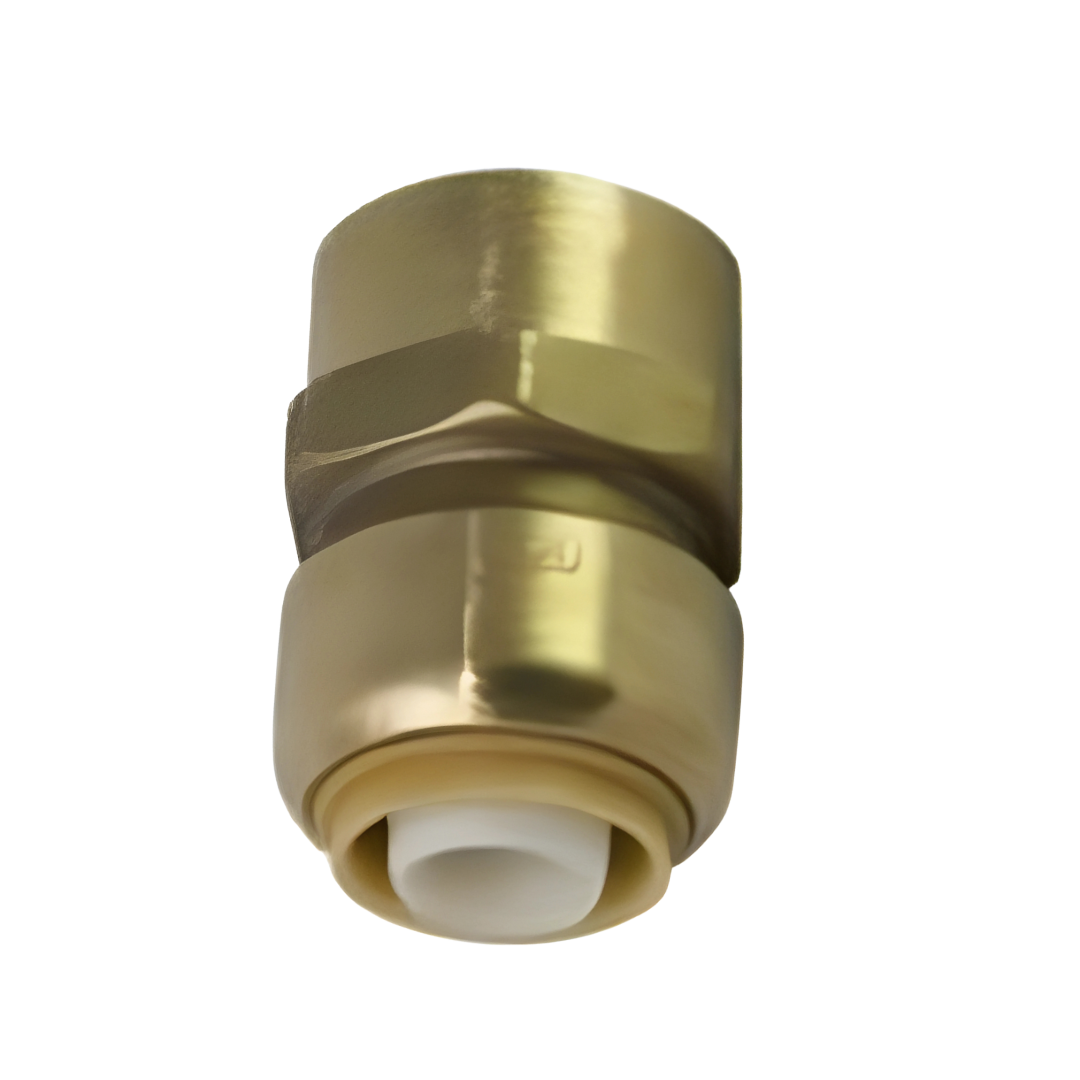

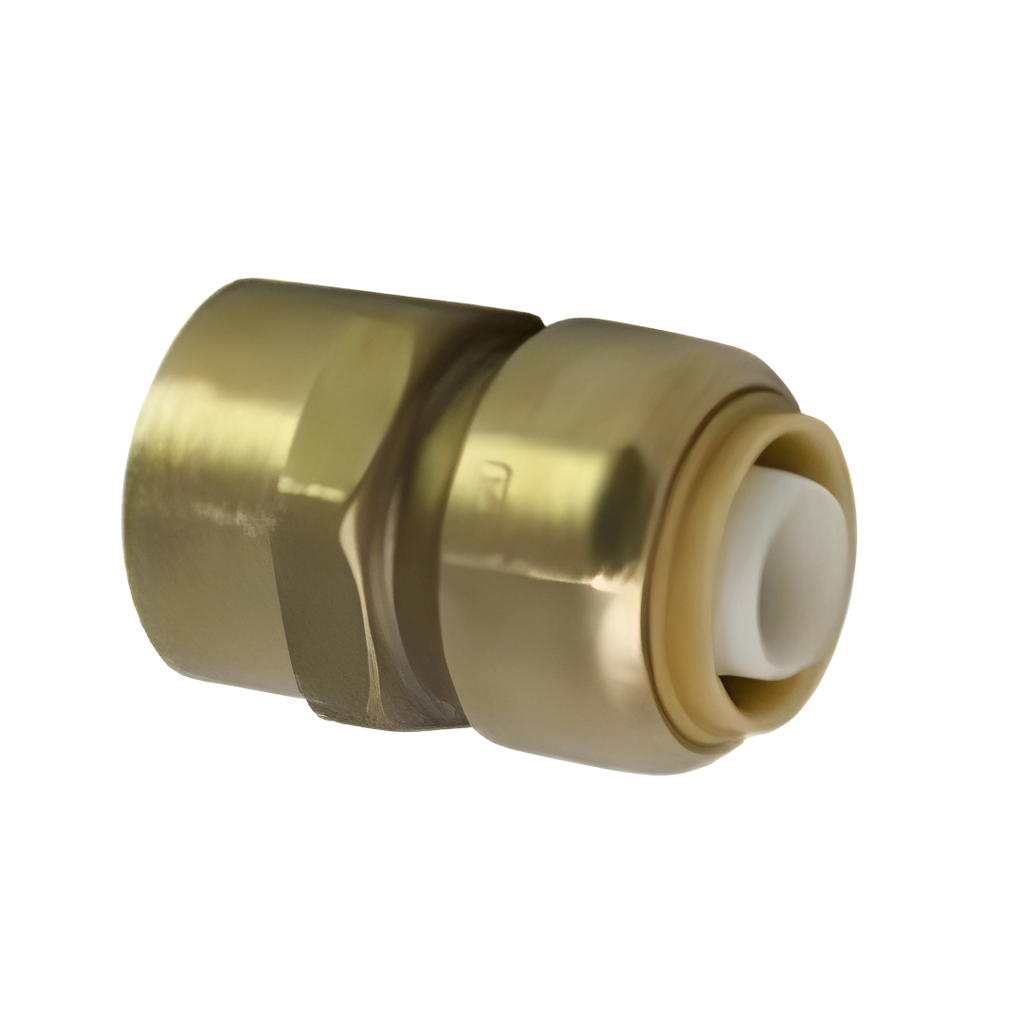

SharkBite® Female Connector (BSP Female Coupling)

The SharkBite® Female Connector is designed to adapt SharkBite® PEX pipe to BSP fittings via a female thread. Also known as Yorkflex, SharkBite FI Union, or SharkBite FI Coupling, this fitting provides a reliable and secure push-to-connect solution without the need for soldering, clamps, unions, or glue.

Constructed from solid forged DZR brass, the female connector is corrosion-resistant, durable, and certified to Australian standards. The integral tube liner ensures a secure connection for PEX pipes, and the fittings can be rotated after assembly for easier installation in tight spaces.

Key Features:

• Adapts SharkBite® PEX pipe to BSP fittings via female thread
• Dependable push-to-connect system for quick and easy installation
• Reusable and rotatable fittings for flexibility
• Solid forged DZR brass body for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS4020 standards
• Approved for potable water, hydronic heating, underground use, and behind walls
• Working pressure: 1600 kPa at 20°C / 800 kPa at 95°C
• Compatible with various plastic systems and copper using conversion connections

Variants Available:

• SYF072 — 16 PEX x 12 FI Dr
• SYF068 — 16 PEX x 20 FI Dr
• SYF088 — 20 PEX x 20 FI Dr
• SYF094 — 25 PEX x 25 FI Dr (also suits 25 Cu)
