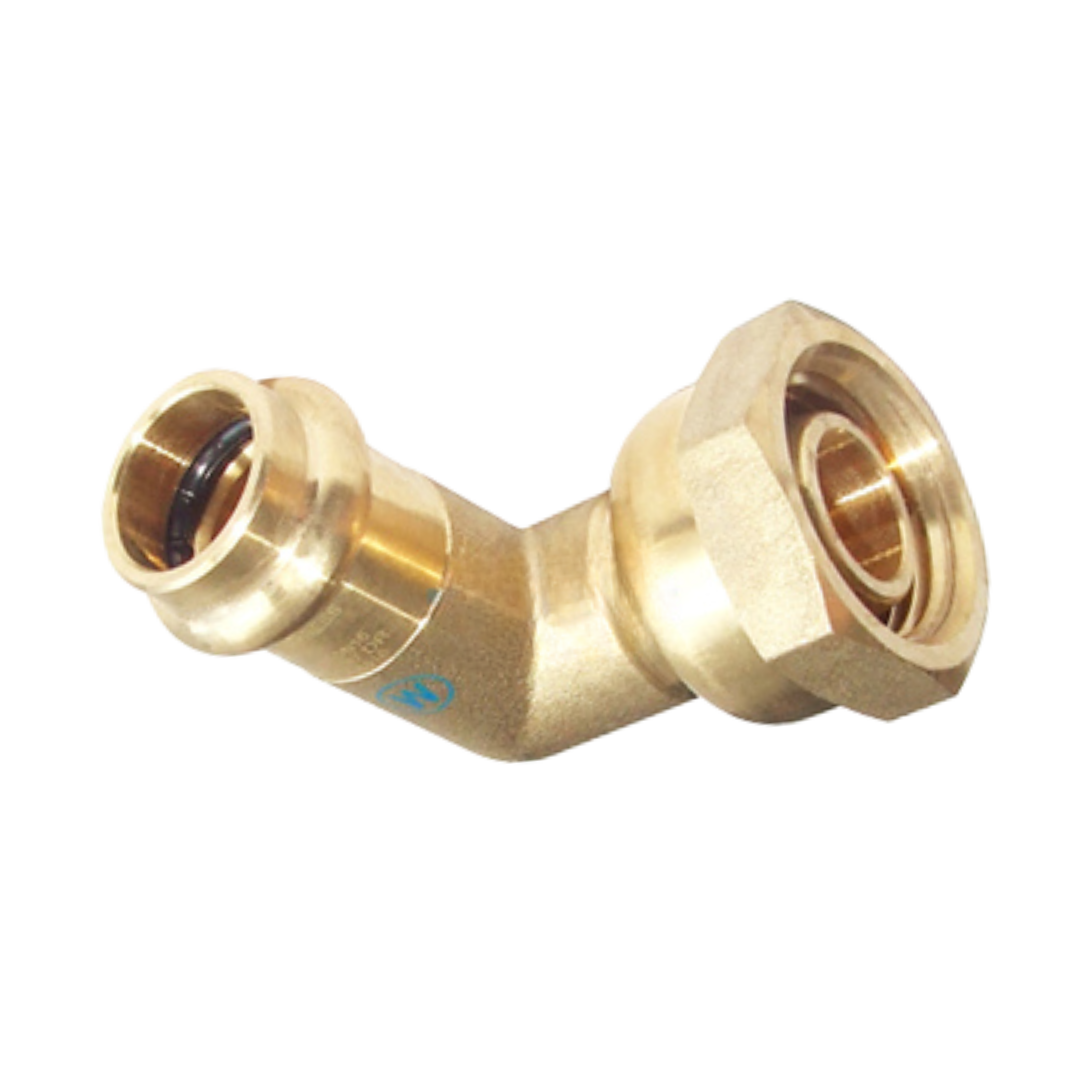

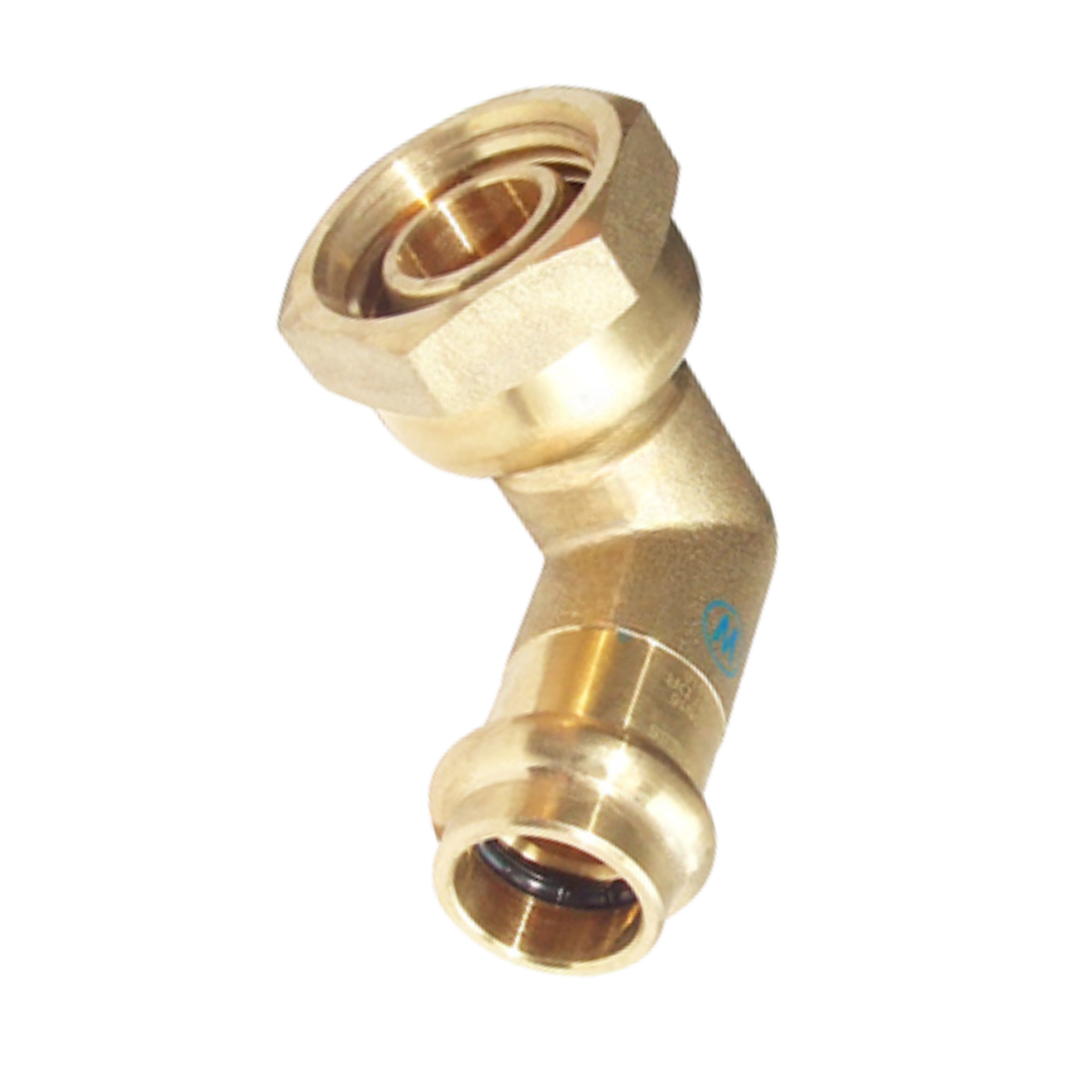

Copper Press Female Elbow Swivel - Water

Copper Press Female Elbow Swivel – Water

Elson Press fittings are manufactured by an ISO9001 accredited and certified factory. Elson is an established Australian-owned company with over 25 years of experience. These female elbow swivel adaptors are suitable for Water, Solar, and Gas applications, covering sizes from 12mm to 20mm, ensuring secure and reliable press connections.

Key Features:

• Lead-Free DR Brass (<0.1% Pb)
• V-profile press design for secure and leak-proof connections
• Leak-Before-Press O-ring (will leak if not pressed)
• German-certified high-quality O-ring material
• Swivel female connection for flexible installation
• Compatible with BUSHPEX systems
• Flame-free press installation, no hot works required
• Complete certified and tested tooling range available
• Technical manuals and product information provided
• Nationwide after-sales and technical support

Variants:

• FKP436 — ELSON PRESS WATER FEMALE ELBOW SWIVEL 12 X 12FI BSP EPW

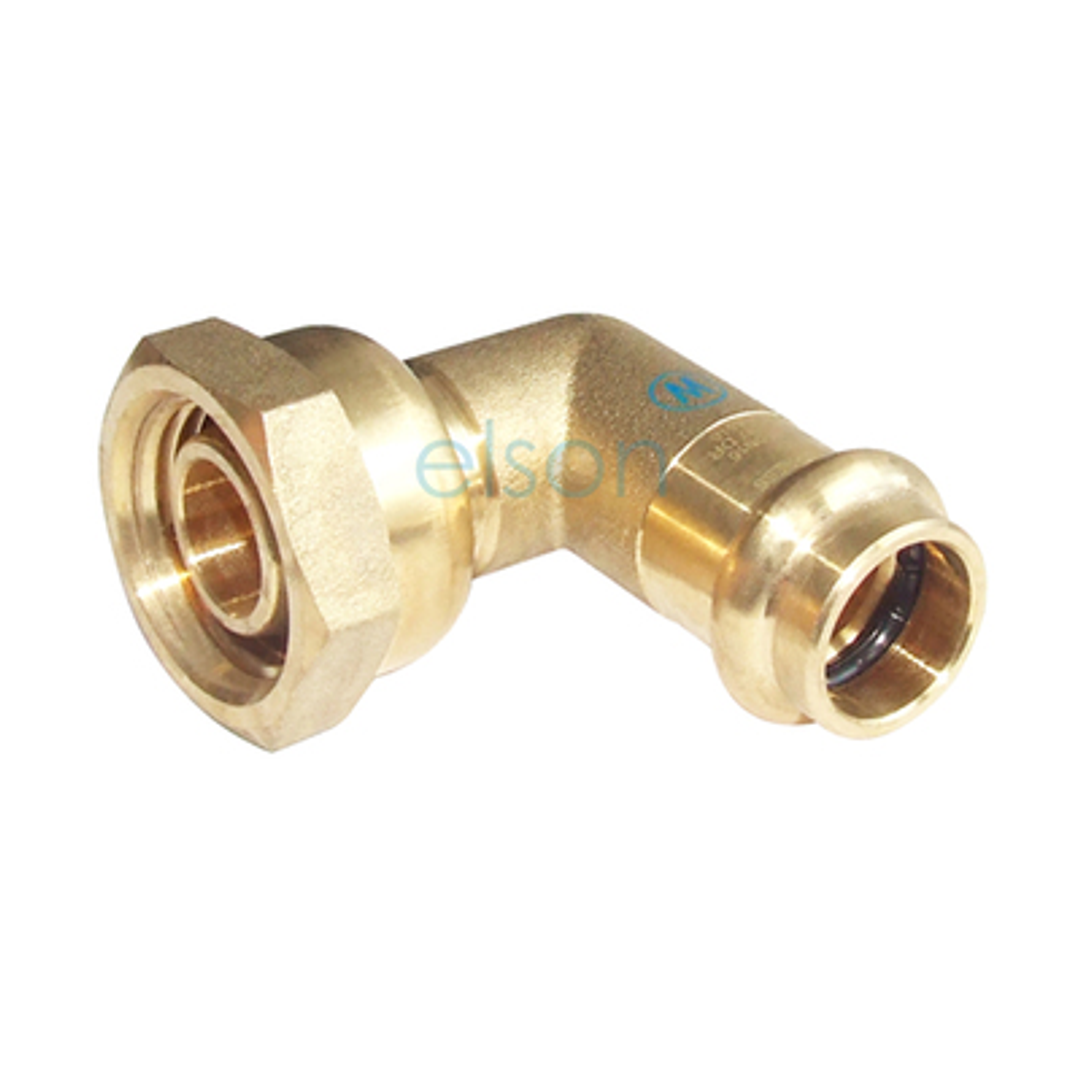

• FKP436A — ELSON PRESS WATER FEMALE ELBOW SWIVEL 20 X 20FI BSP EPW

Specifications:

• Material: Lead-Free DR Brass
• Suitable For: Potable water, water & solar applications
• Max Working Pressure: 1600 kPa
• Max Working Temperature: -20°C to 100°C
• Press Type: V-profile press
• Range: 12mm – 20mm
• Standards: ISO9001 Certified Manufacturing
• Warranty: 25-Year Product Warranty
• Installation: Flame-free press installation, no hot works required
