Lugged Elbow Female

Lugged Elbow Female (12mm to 20mm Range)
Compression x Female BSP Thread – Brass Lugged Elbow for Secure Wall Mounting

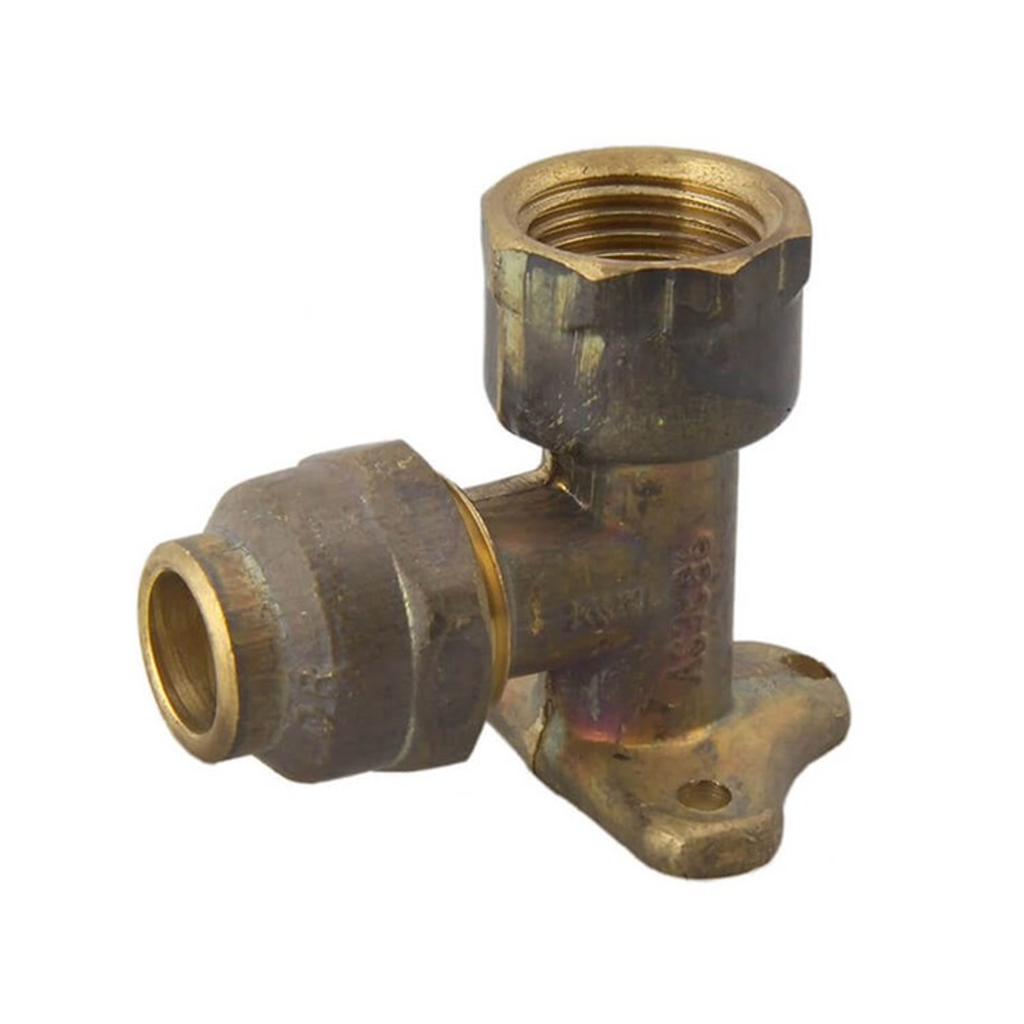

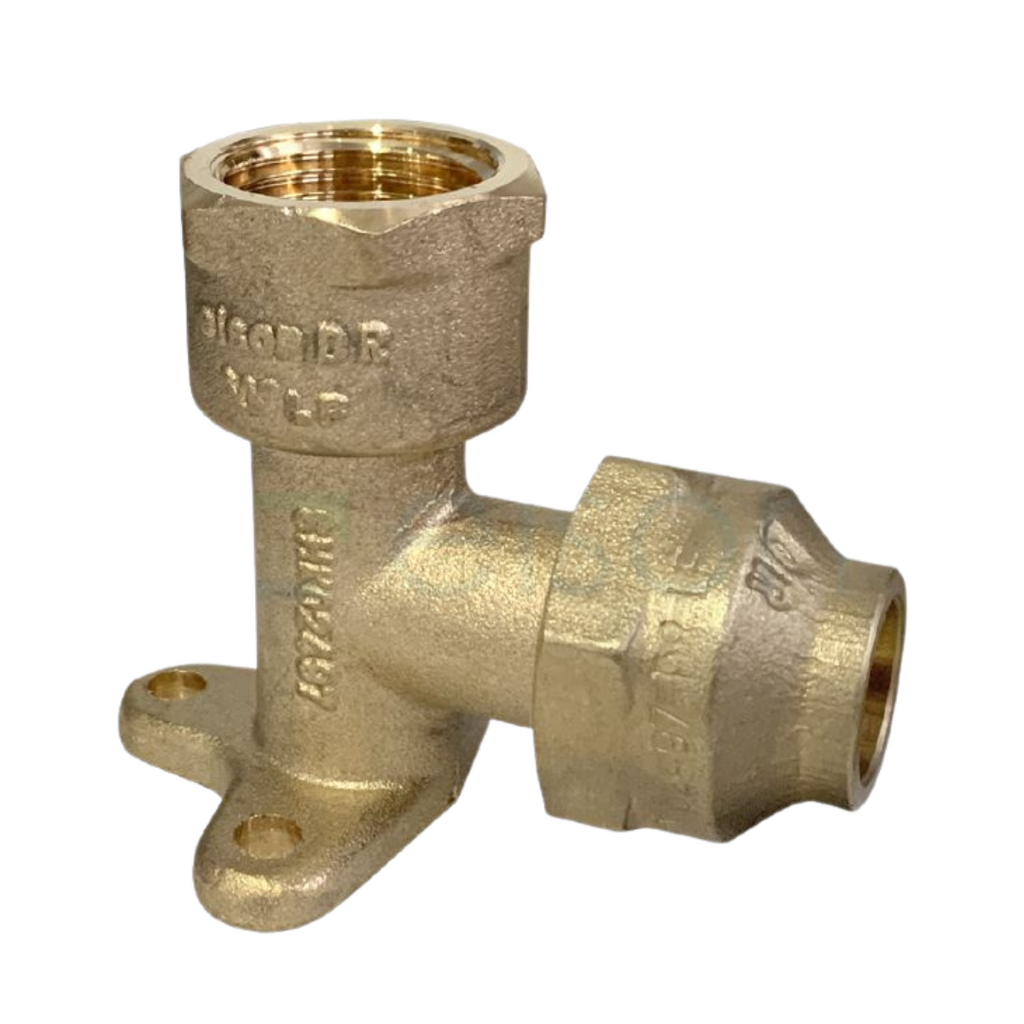

The Lugged Elbow Female is a high-quality 90° brass fitting designed for wall-mounted plumbing installations where a fixed, secure point is needed. With a female BSP thread (FI) on one end and a compression nut (CN) on the other, this elbow allows for easy connection of pipes while ensuring reliable support with integrated mounting lugs.

Constructed from lead-free brass and available in brass or chrome-plated finishes, this fitting is WaterMark approved and tested to AS 3688 standards for safety and performance. It is ideal for use in potable water applications, especially where stability and alignment are key – such as behind bathroom or kitchen walls.

Key Features:

• 90° elbow with compression x female threaded ends
• Integrated lugs for secure wall or bracket mounting

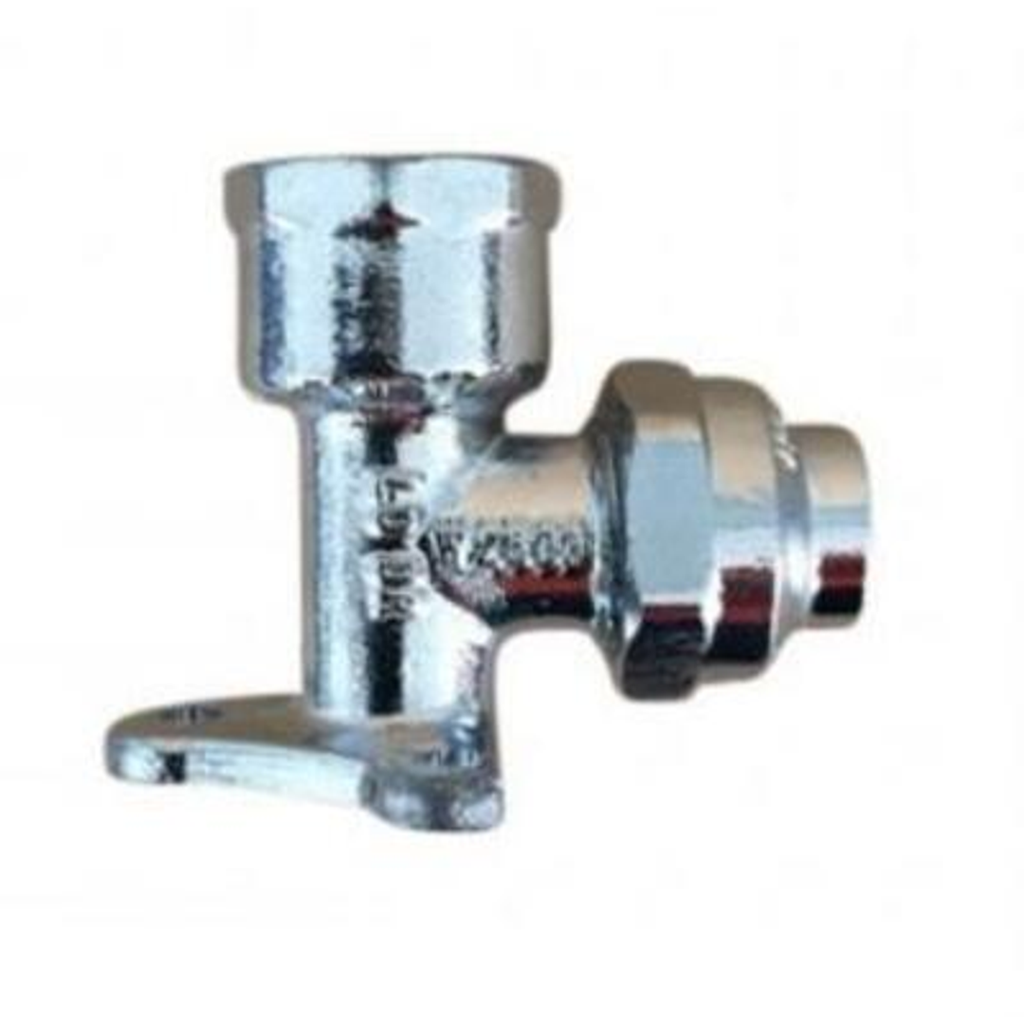

• Available in chrome or natural brass finishes
• WaterMark certified and compliant with AS 3688
• Suitable for potable water systems
• Maximum working temperature: 1°C to 95°C
• Maximum pressure rating: 1600 kPa

Available Variants:

Common Applications:

• Wall-mounted tap connections
• Kitchen, laundry, or bathroom installations
• Secure fitting points in concealed wall cavities
• Compatible with copper and PEX pipes (with inserts)

These Lugged Female Elbows offer durability, versatility, and secure mounting—making them an essential choice for professional plumbing installations where reliability and compliance are non-negotiable.
