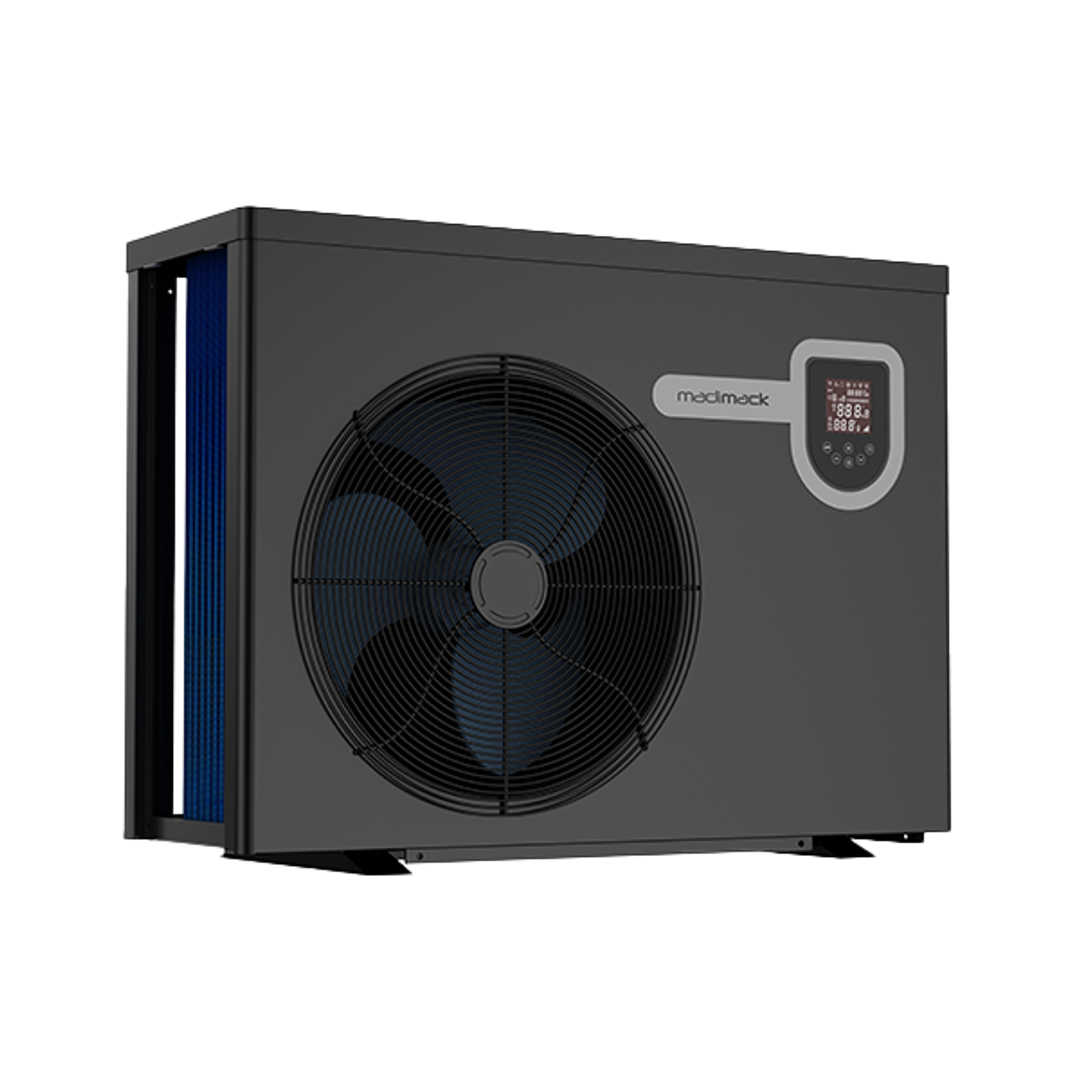

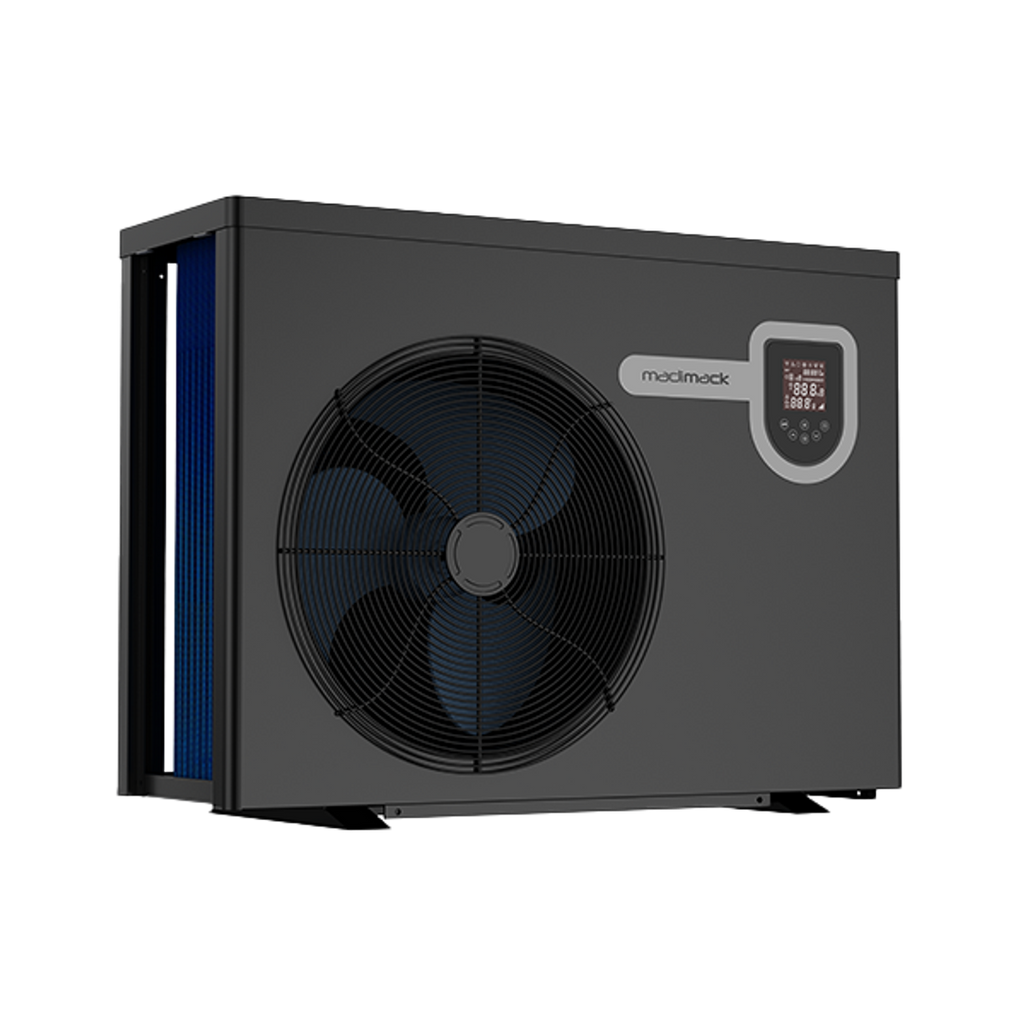

Madimack Heat Pump Eco Plus 90 (Front Discharge - 10A 3 Pin Plug)

Quiet, long-lasting simple to operate. Madimack's InverECO Plus delivers a perfect pool heating and cooling solution for the energy conscious pool owner. This pool heater is fitted with all the necessities required to heat backyard pools. Built with efficiency and simplicity in mind the quiet, long-lasting and easy to use Eco is perfect for energy-conscious minds. With low energy and night time mode, it means efficiency can be increased by up to 20%, and with WiFi as standard, you can change your pool temperature and timers from wherever you are. State of the art anti-corrosion ABS casing means you can be sure your pool stays warm season after season no matter where you live. This electric pool heat pump series is ideal for recreational pool & spa owners.

"Energy efficient with COP up to 11
Full inverter compressor and inverter fan
Six models up to 28 kW in single phase
Quieter operation than on/off technology
Anti-corrosion ABS casing
Easy to use controller
Slim design
WiFi as a standard feature
Titanium heat exchanger with 25-year warranty
Front discharge air outlet
Reverse cycle defrost
Built-in flow switch and safety devices
Latest most eco-friendly R32 Refrigerant
TüV Rheinland certified
Up to 40 degrees set point temperatureDesigned and Engineered for Australian conditions
Market leader in heat pump technology
High quality componentry and heat exchanger for any chemical balance
Small footprint and corrosion resistant casing for high salt areas
Active defrost function to assist operations in cold climates
Operates in cold climates down to 0°C
Energy efficient operation saves up to 66% compared to other forms of pool heating
Renewable energy compatible
High efficiency inverter technologyAdvised Pool Volume (m³): 20–45
Operating Temp (°C): 0–43
Temperature set point range (°C): 12-40
Heat Exchanger: Twisted Titanium Heat Exchanger
Compressor: Full Stepless DC Compressor
Power Supply: 230V 1Ph
Rated Input Power (kW): 0.28 - 1.55
Input Power @ 50% (kW): 0.53
Rated Input Current (A): 1.21 - 6.73
Sound Level 1m dB(A): 41.6 - 53.5
Sound @ 50% Speed 1m dB(A): 46.8
Sound Level 10m dB(A): 21.6 - 33.5
Advised water Flow (m³/h): 3-5
Water connection (m m): 40
Net Dimensions LxWxH (m m): 864×359×648
Net Weight (kg): 46
Max Input Current (A): 8
Power Cord (mm²): 3×1.5
Gross Weight (kg): 52

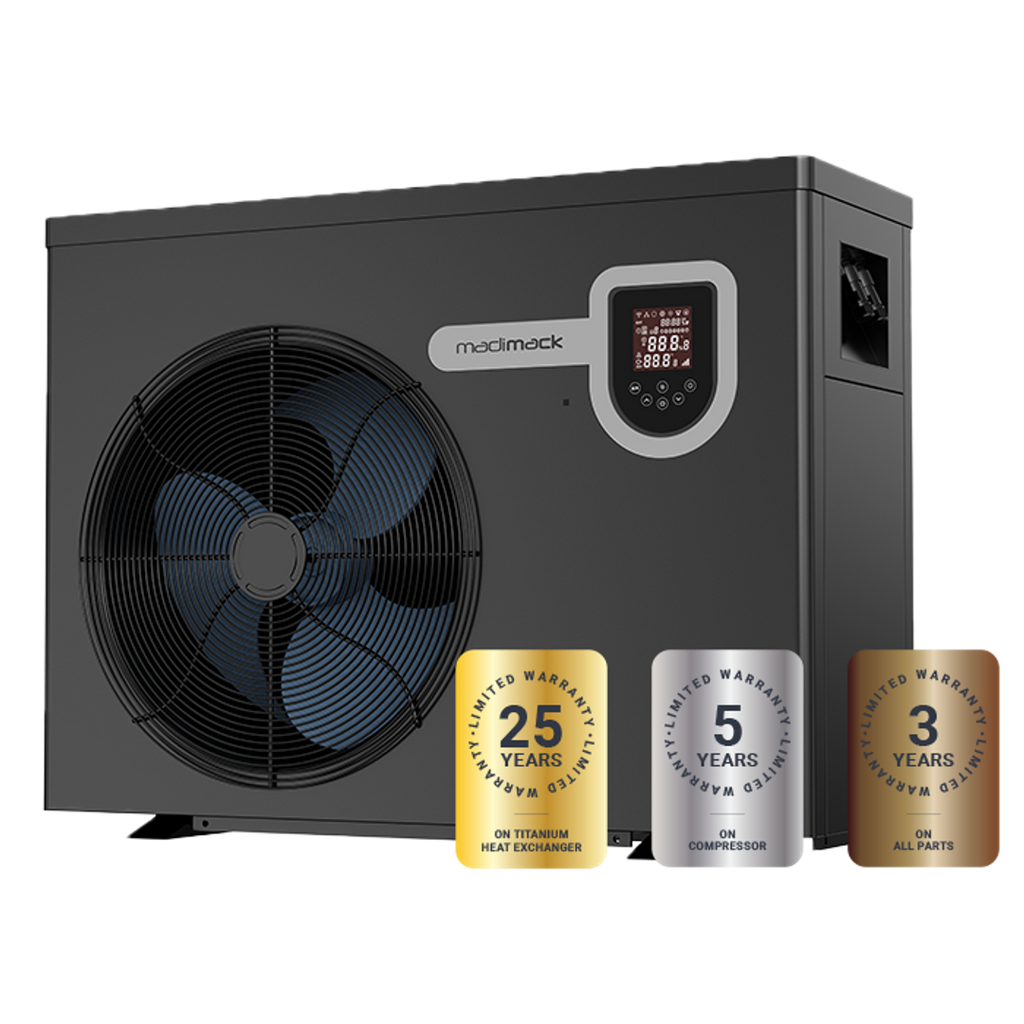

Packaging Dimensions LxWxH (m m): 950×375×675Heat Exchanger: 25 years
Compressor: 5 years
Parts: 3 years
Labour: 1 year"
