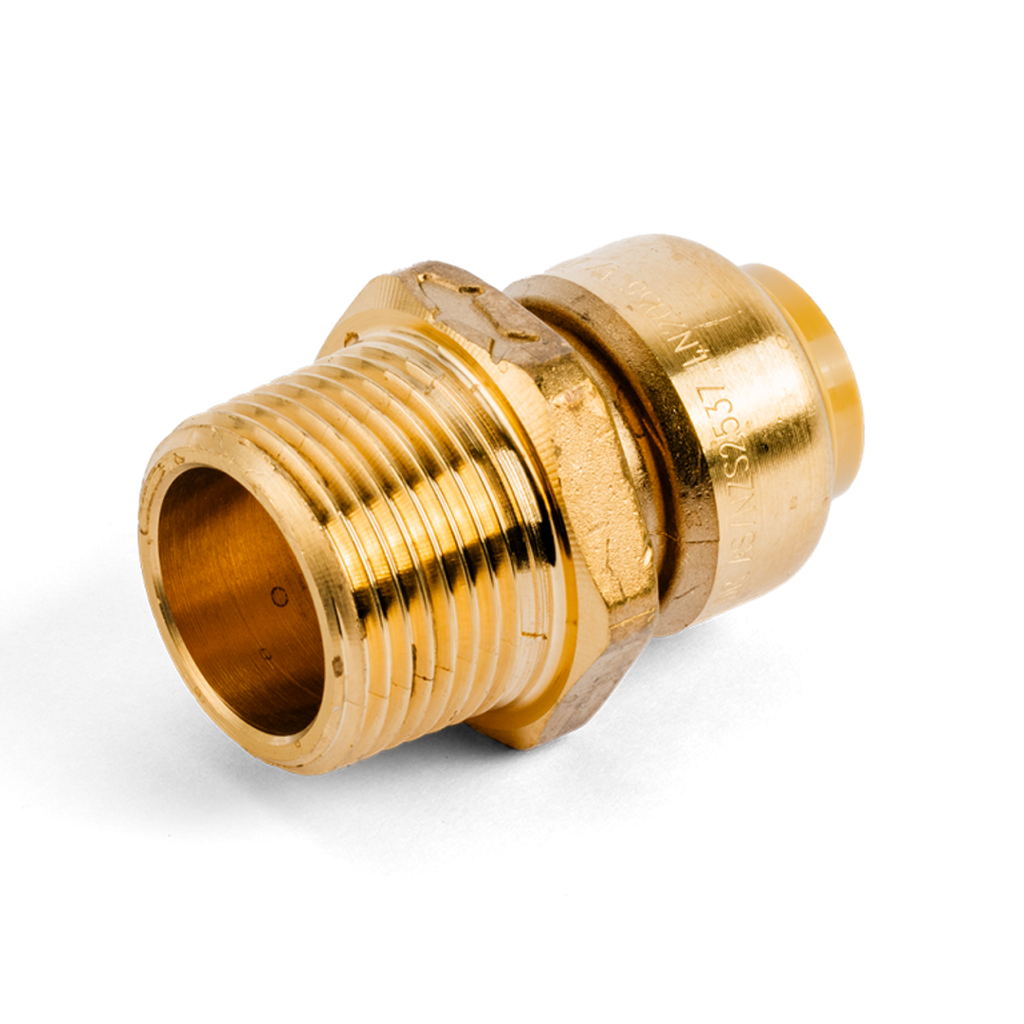

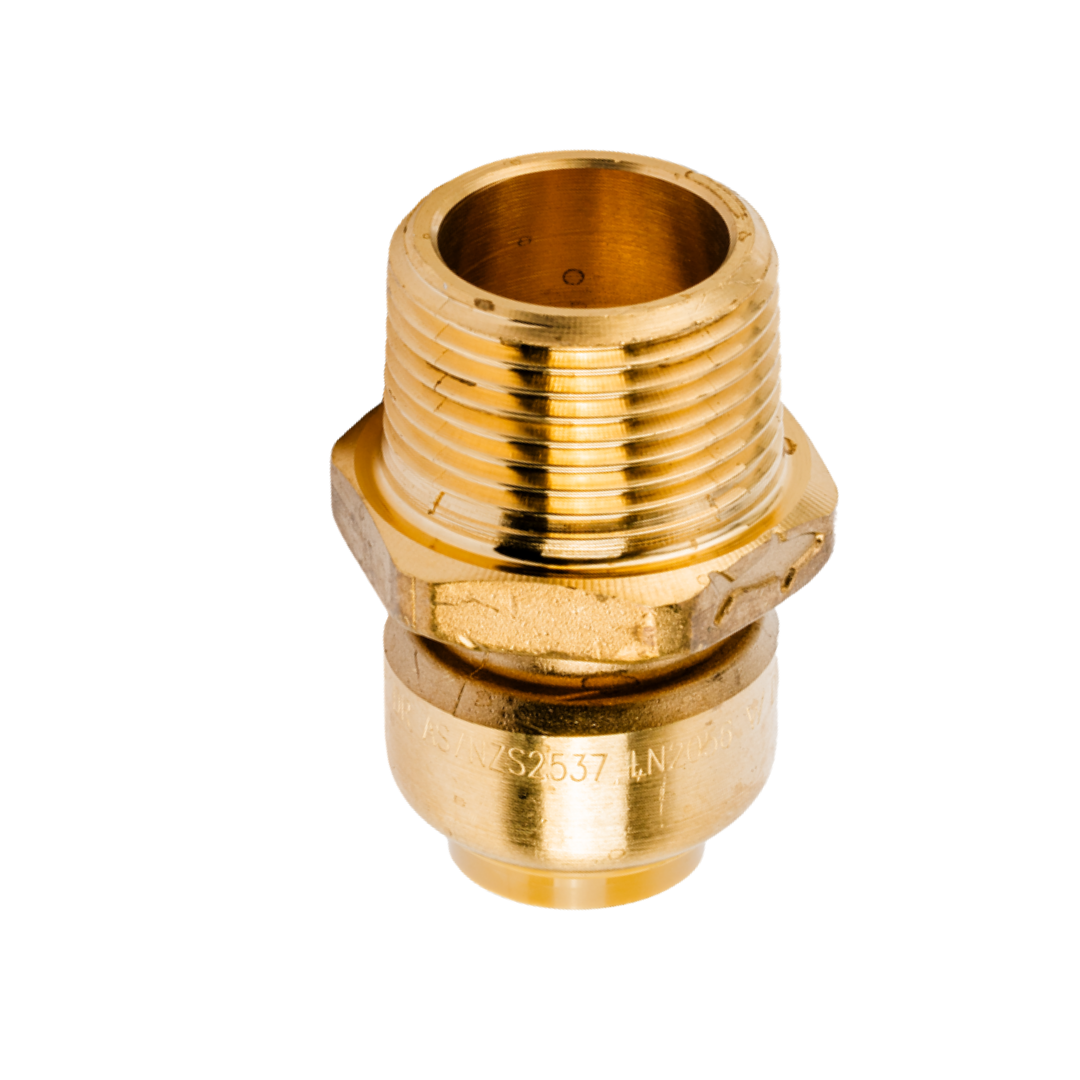

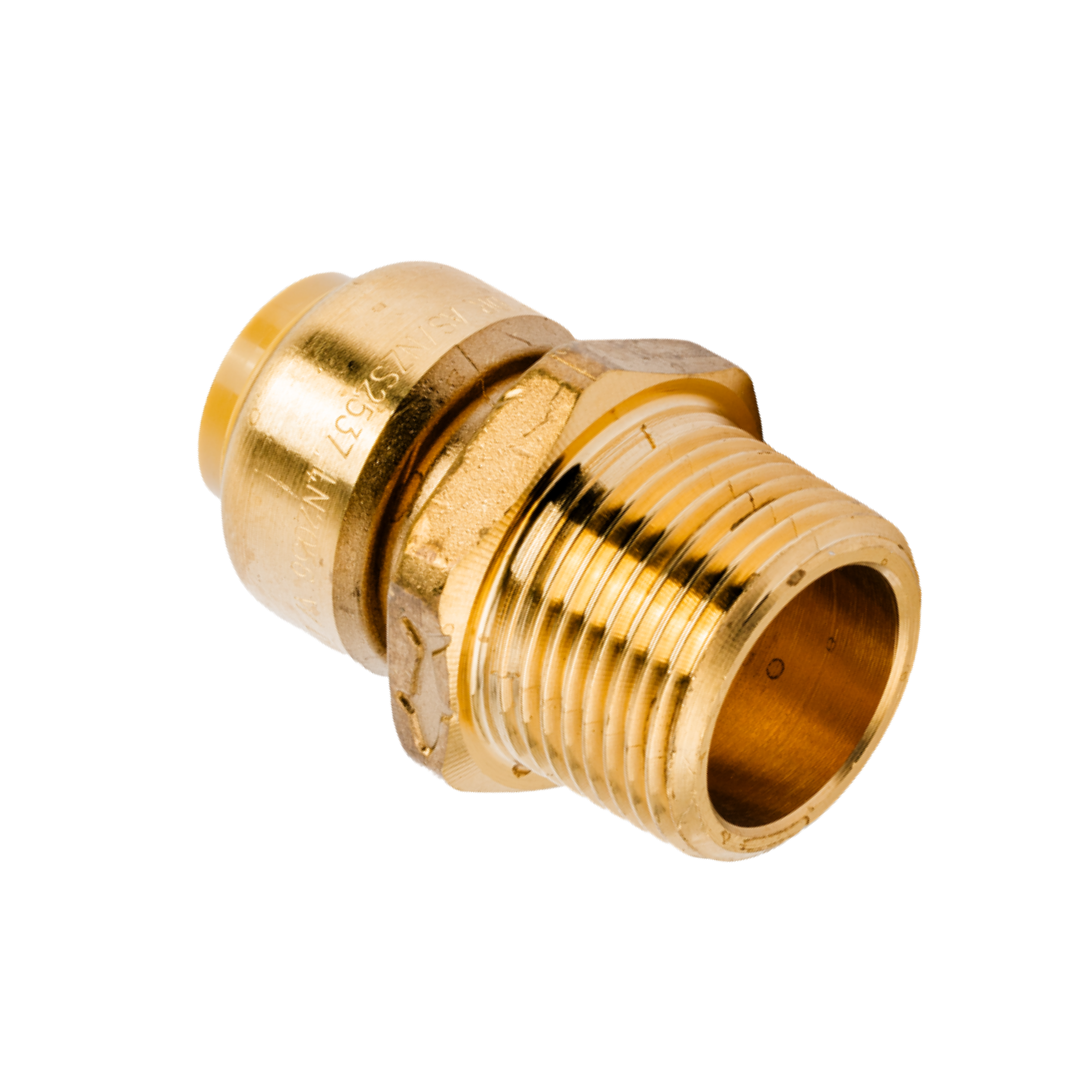

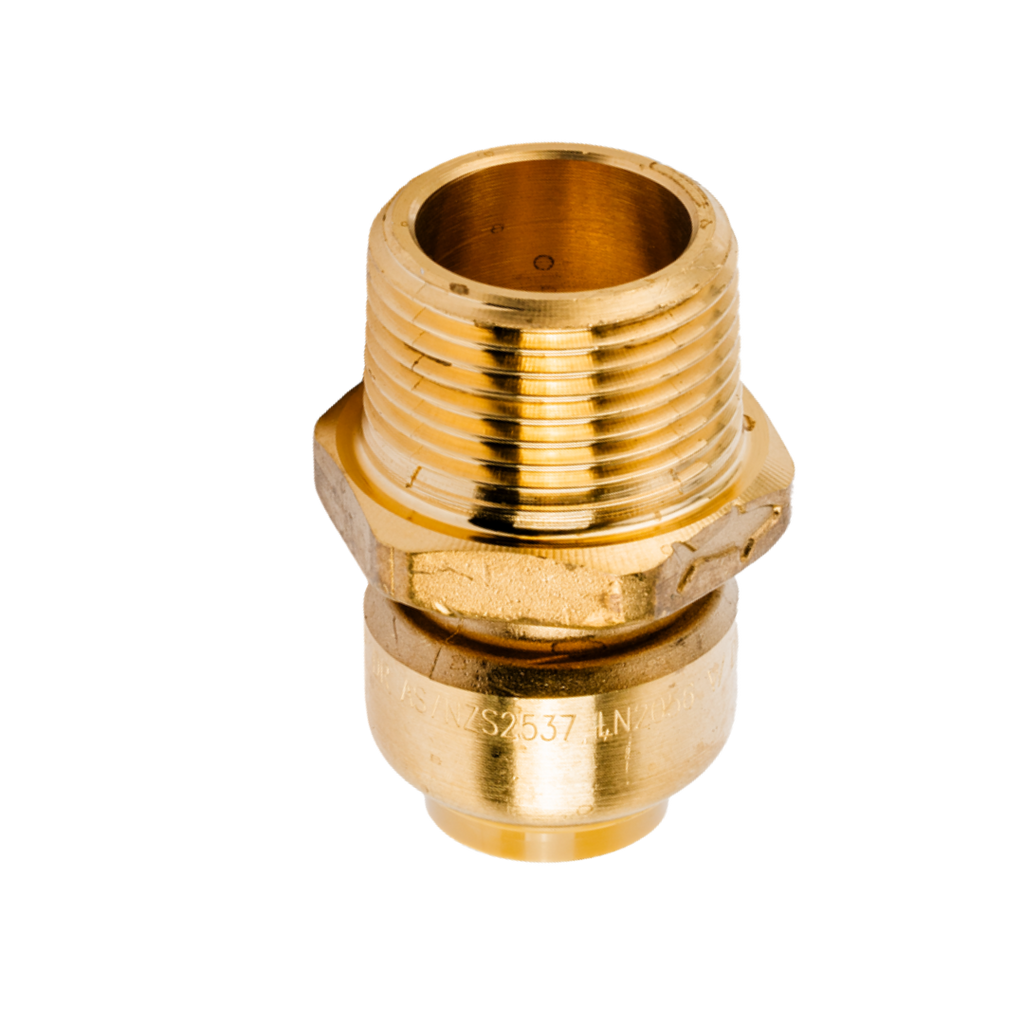

Sharkbite Male Connector

SharkBite® Male Connector (BSP Male Coupling)

The SharkBite® Male Connector is designed to adapt SharkBite PEX pipe to BSP fittings via a reliable male thread connection. Also known as Yorkflex, SharkBite MI Union, or SharkBite MI Coupling, this fitting offers a simple and dependable solution for connecting PEX systems with threaded pipework.

Built from solid forged DZR brass, the SharkBite Male Connector is corrosion-resistant, durable, and fully compliant with Australian standards. It provides a secure push-to-connect installation with no need for soldering, clamps, unions, or glue.Key Features:

Adapts SharkBite® PEX pipe to BSP fittings via male thread

Dependable push-to-connect system for quick installation

• Rotatable and reusable fittings for flexibility
• Integral tube liner for PEX ensures a secure connection without loose parts
• Constructed from solid forged DZR brass for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS 4020 standards
• Approved for potable water, hydronic heating, underground use, and behind walls without access panels
• Working pressure: 1600 kPa at 20°C or 800 kPa at 95°C

Why Choose SharkBite®?
The SharkBite® push-to-connect system is one of the most dependable ways to join copper and PEX pipe. Stainless steel teeth grip the pipe tightly, while a specially formulated O-ring creates a perfect seal. Fittings can be disconnected with a simple tool and reused as needed, making installation efficient and flexible — even in tight spaces.

Variants Available:

• SYF120 — 16 PEX x 12mm BSP Male
• SYF116 — 16 PEX x 20mm BSP Male
• SYF138 — 20 PEX x 12mm BSP Male
• SYF134 — 20 PEX x 20mm BSP Male
• SYF142 — 25 PEX x 20mm BSP Male (also suits 25 Cu)
• SYF140 — 25 PEX x 25mm BSP Male (also suits 25 Cu)
