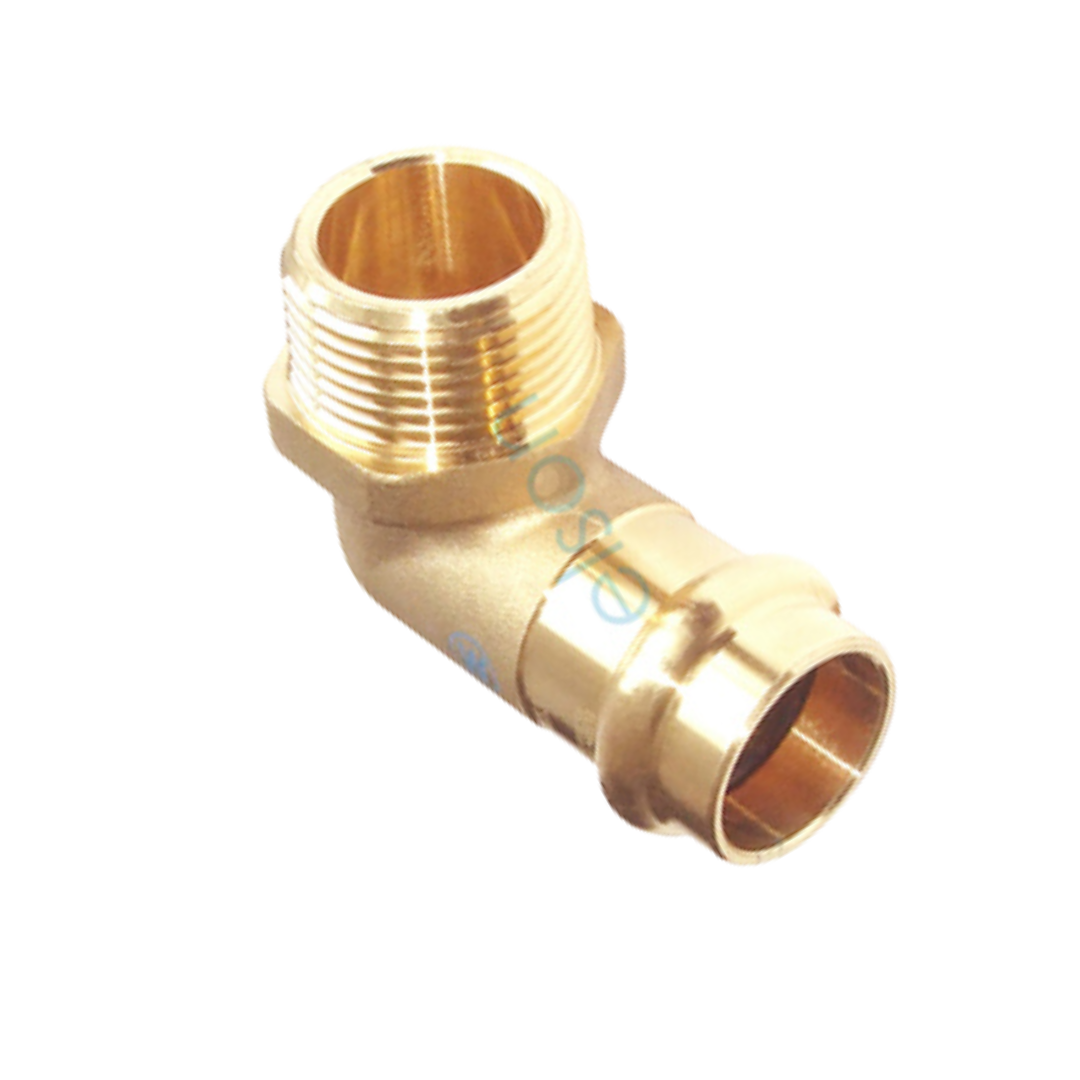

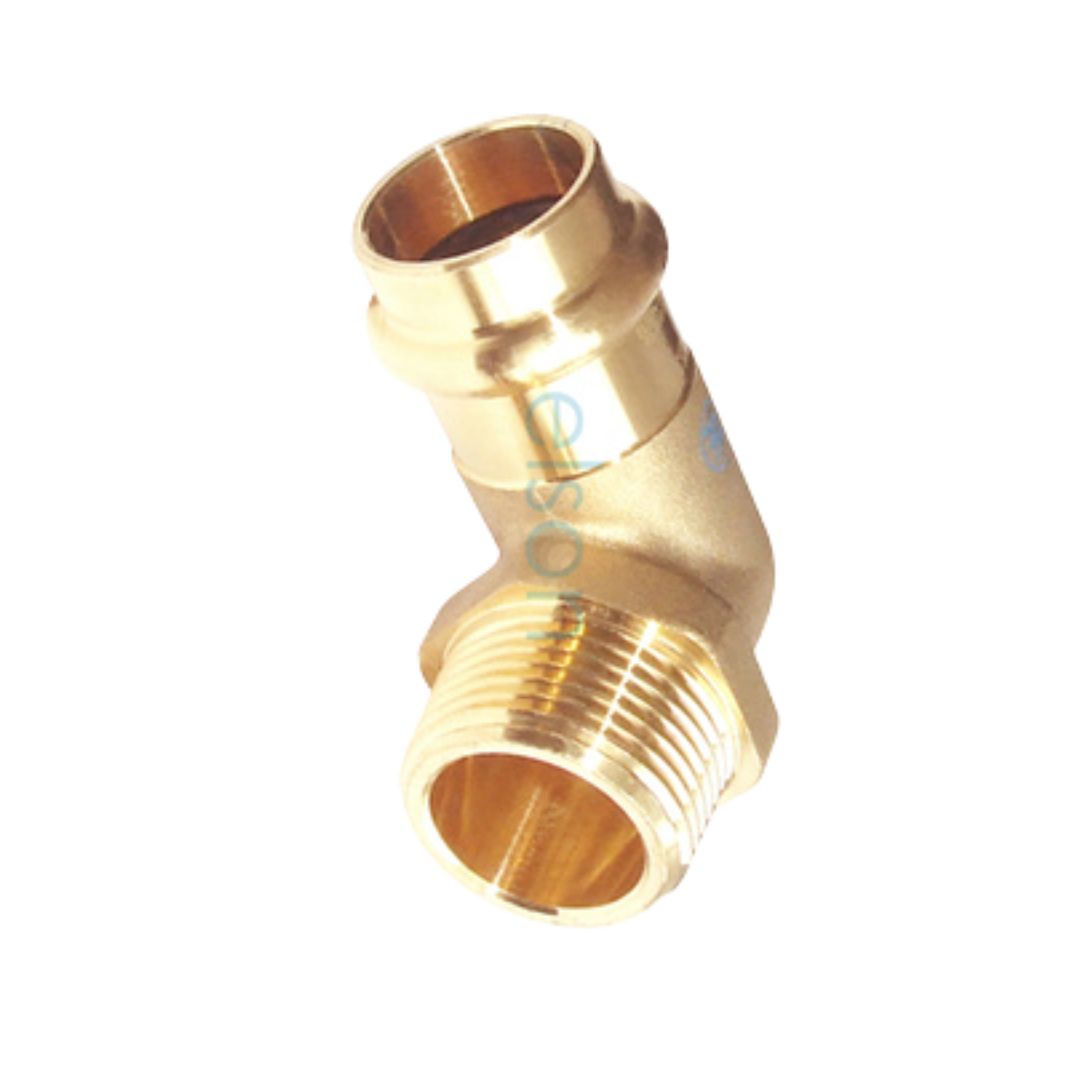

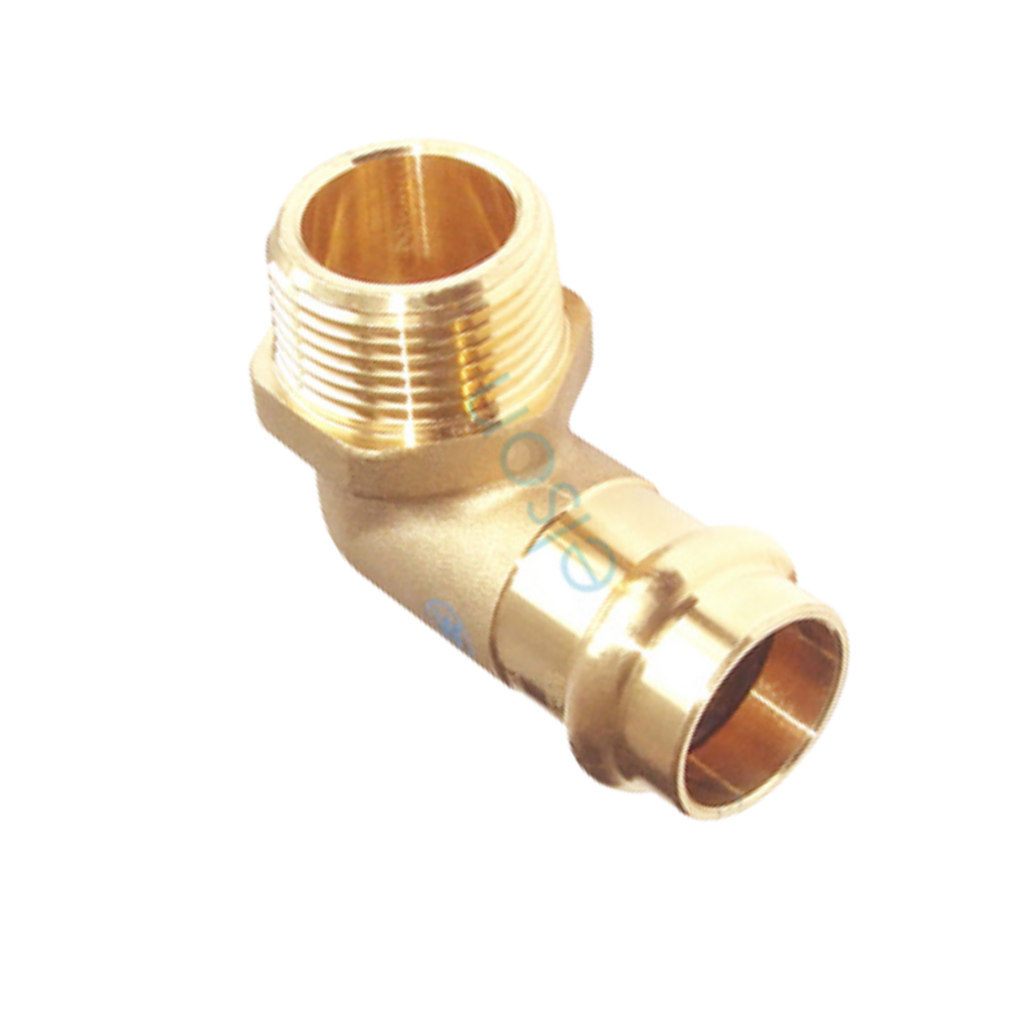

Copper Press Male Elbow - Water

Copper Press Male Elbow – Water

Elson Press fittings are manufactured by an ISO9001 accredited and certified factory, providing high-quality, leak-proof connections for water systems. These male elbows are designed for easy press installation and reliable performance.

Key Features:

• Lead-Free DR Brass (<0.1% Pb)
• V-profile press design with Leak-Before-Press O-ring
• German-certified high-quality O-ring material
• Flame-free press installation — no hot works required
• Compatible with BUSHPEX systems
• Original Novopress tooling resulting from collaborative R&D
• Nationwide technical and after-sales support

Variants:

• FKP463 — ELSON PRESS WATER ELBOW 12 X 12MI BSP (NO.13) EPW

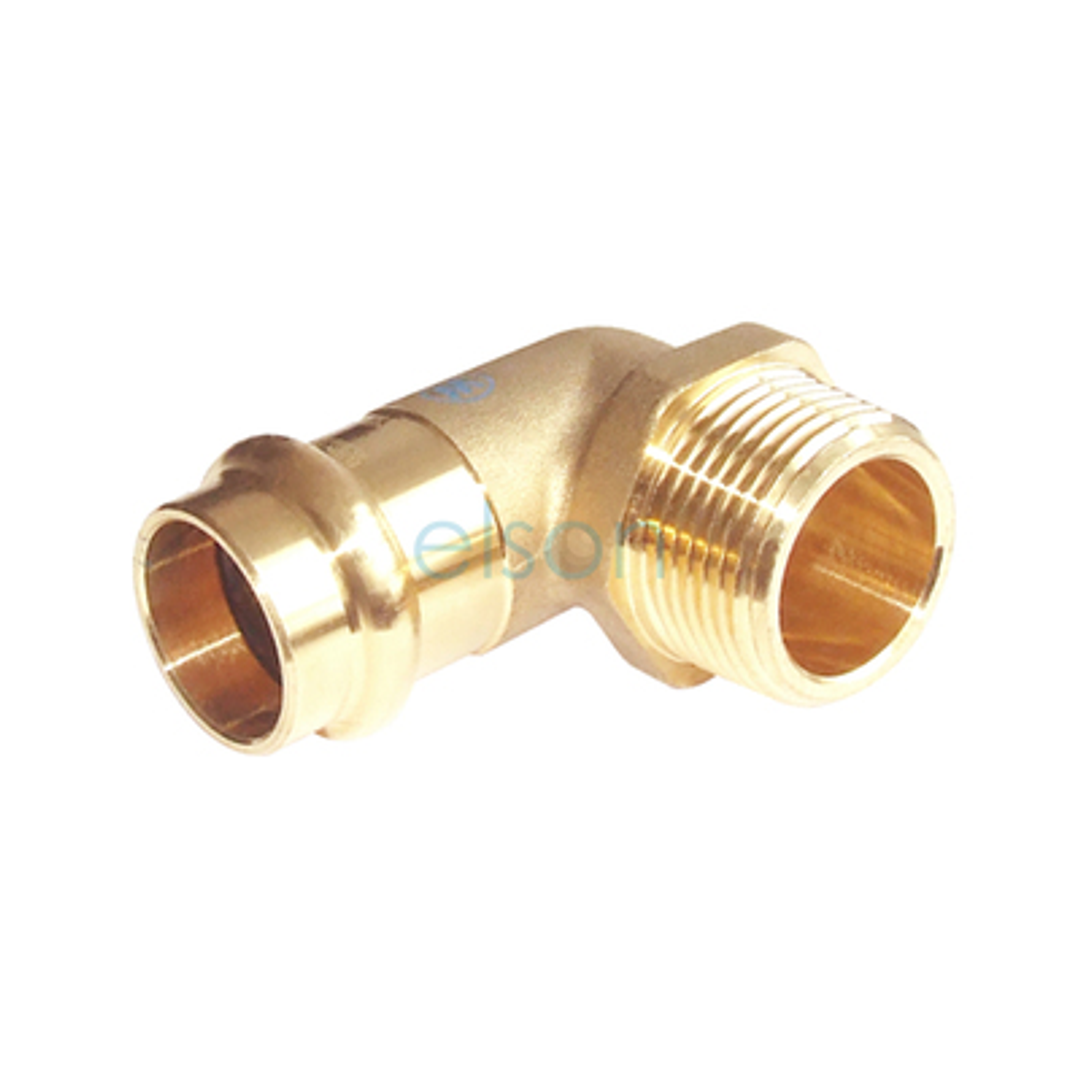

• FKP464 — ELSON PRESS WATER ELBOW 20 X 20MI BSP (NO.13) EPW

Specifications:

• Material: Lead-Free DR Brass
• Suitable For: Potable water, water & solar applications
• Max Working Pressure: 1600 kPa
• Max Working Temperature: -20°C to 100°C
• Press Type: V-profile press
• Connection Type: Male BSP
• Range: 12mm–20mm
• Standards: ISO9001 Certified Manufacturing
• Warranty: 25-Year Product Warranty
• Installation: Flame-free press installation, no hot works required
