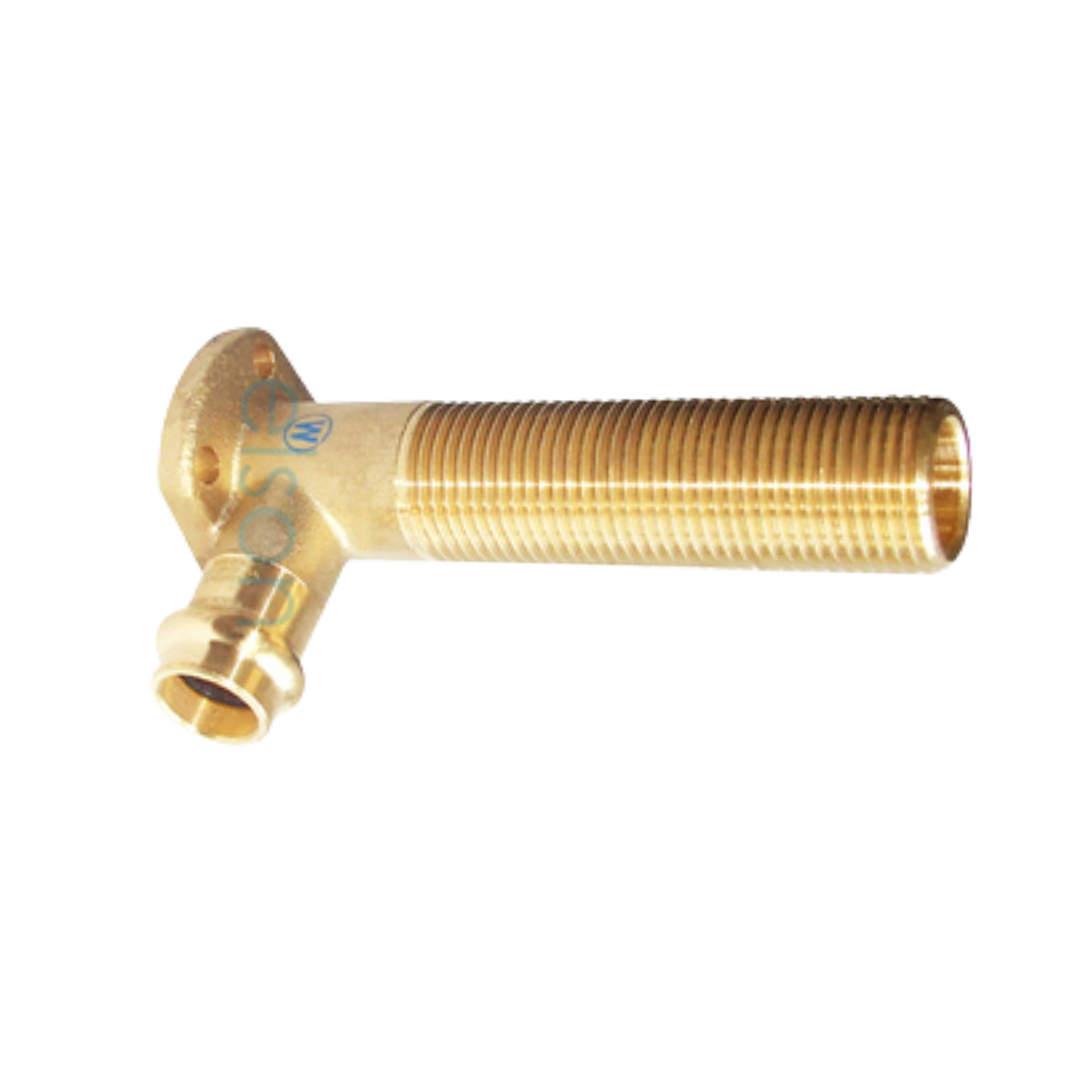

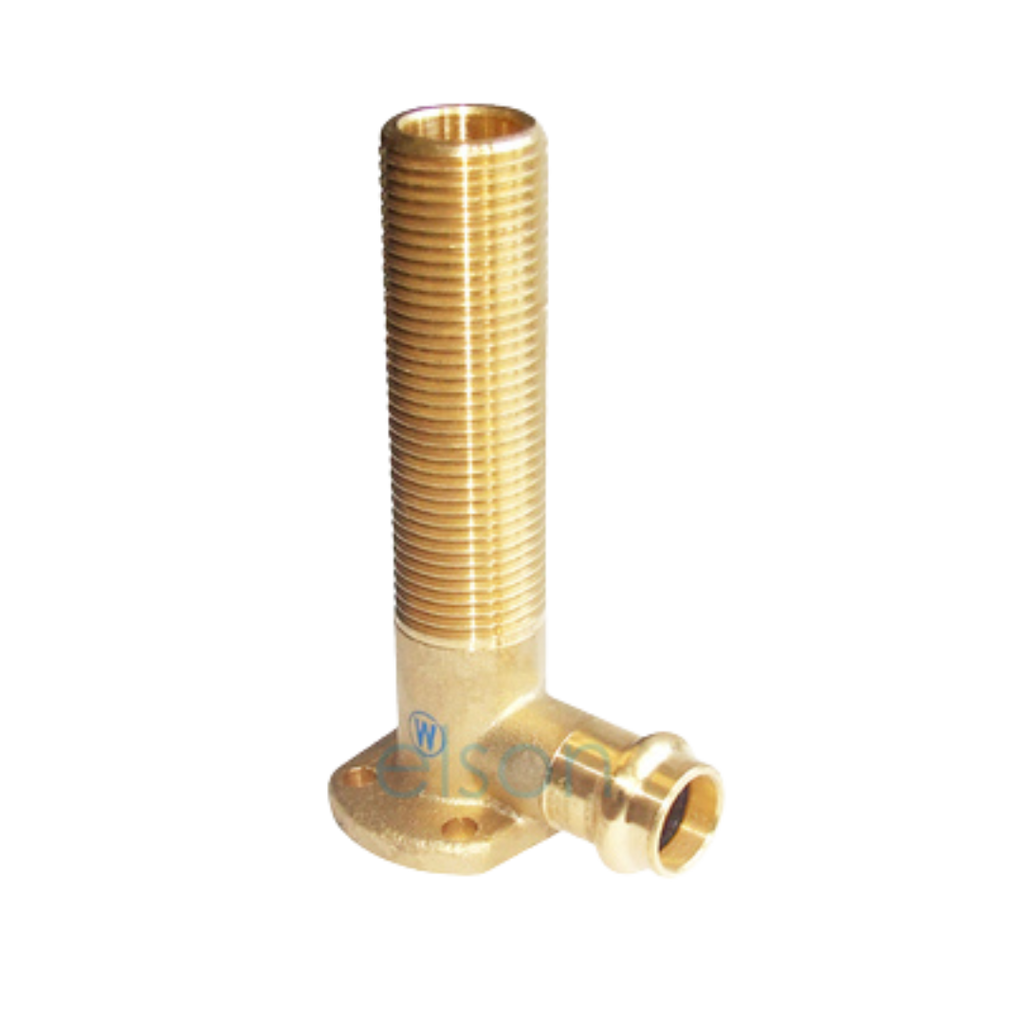

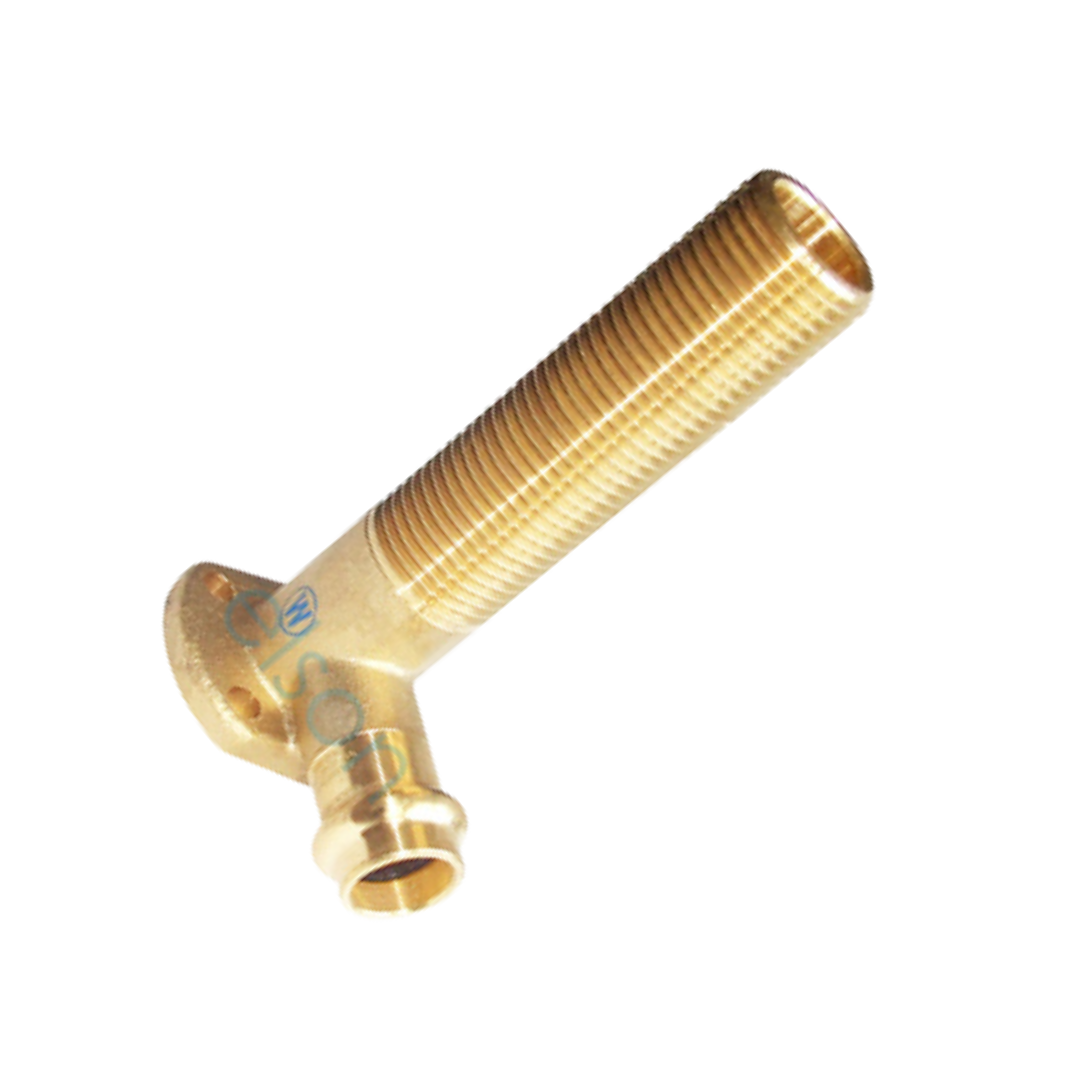

Copper Press Male Lugged Elbow - Water

Copper Press Male Lugged Elbow – Water

Elson Press fittings are manufactured by an ISO9001 accredited and certified factory. Designed for secure water connections, these male lugged elbows provide a reliable and leak-free press connection with back-plated design for added stability.

Key Features:

• Lead-Free DR Brass (<0.1% Pb)
• V-profile press design with Leak-Before-Press O-ring
• Back-plated (19BP) for increased stability
• German-certified high-quality O-ring material
• Flame-free press installation — no hot works required
• Compatible with BUSHPEX systems
• Complete certified and tested tooling range available
• Technical manuals and product information provided
• Nationwide after-sales and technical support

Variants:

• FKP450 — ELSON PRESS WATER 19BP BACK PLATED ELBOW 12 X 12MI 75MM 19BP EPW
• FKP462 — ELSON PRESS WATER 19BP BACK PLATED ELBOW 12 X 12MI 95MM 19BP EPW

Specifications:

• Material: Lead-Free DR Brass
• Suitable For: Potable water, water & solar applications
• Max Working Pressure: 1600 kPa
• Max Working Temperature: -20°C to 100°C
• Press Type: V-profile press
• Range: 12mm connections
• Standards: ISO9001 Certified Manufacturing
• Warranty: 25-Year Product Warranty
• Installation: Flame-free press installation, no hot works required
