Maxisave Hyjet 750 Watt Cast Iron Vortex Sump Pump With Float Switch

Performance Range Flow rate up to 60 l/min (4.23m³/h) Head up to 60m Installation and Use JCRM-1A-EP1 self-priming pump is designed to draw water and liquids that contain air. This pump includes an Easy press 2 pressure controller. They are reliable and easy to operate. They are a favourite for domestic use, particularly effective for water distribution with small to medium-sized tanks, and suitable for irrigation.

Application Limits Manometric suction head up to 9m (HS) Liquid temperature between -10ºC and +40ºC Ambient temperature up to +40ºC Maximum working pressure 6 bar

Performance Range

• Flow rate up to 60 l/min (4.23m³/h)
• Head up to 60m


Installation and Use

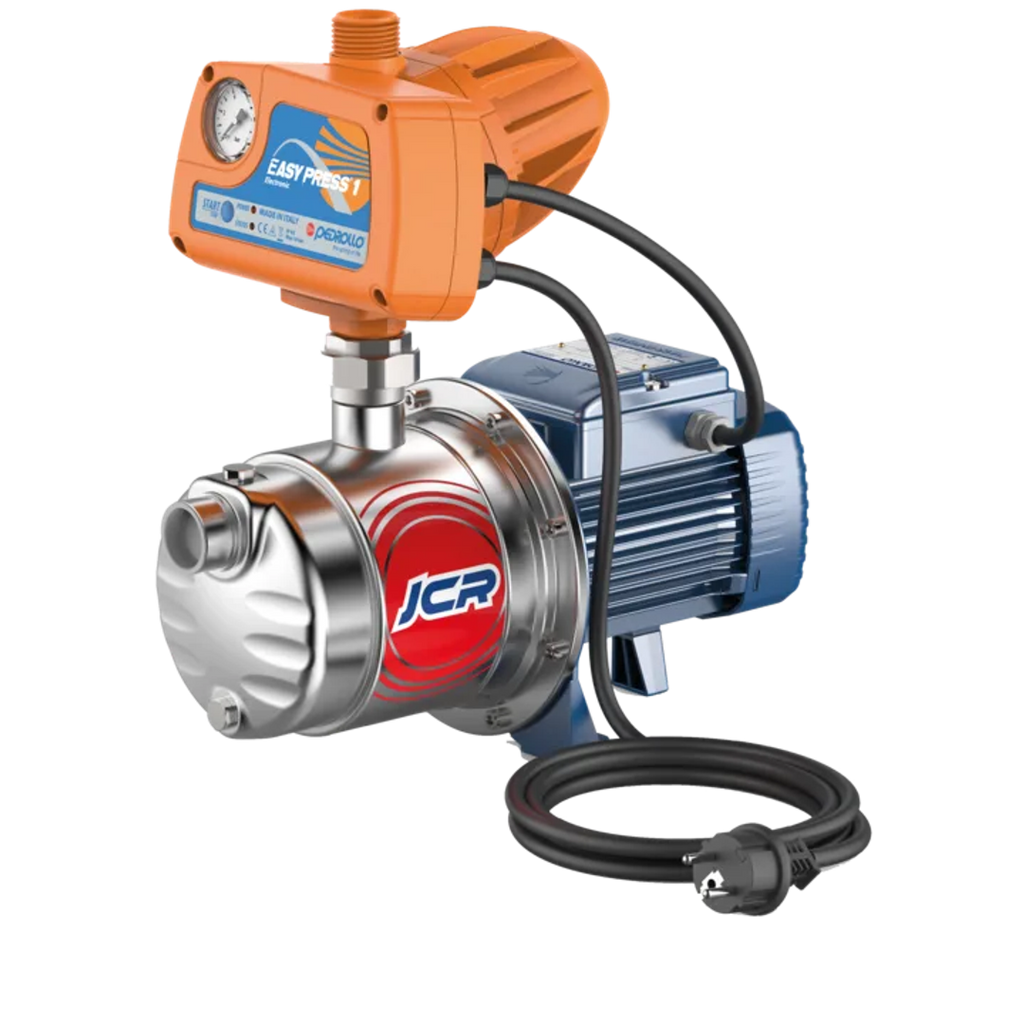

JCRM-1A-EP1 self-priming pump is designed to draw water and liquids that contain air.  This pump includes an Easy press 2 pressure controller.

They are reliable and easy to operate. They are a favourite for domestic use, particularly effective for water distribution with small to medium-sized tanks, and suitable for irrigation.

Application Limits

• Manometric suction head up to 9m (HS)
• Liquid temperature between -10ºC and +40ºC
• Ambient temperature up to +40ºC
• Maximum working pressure 6 bar

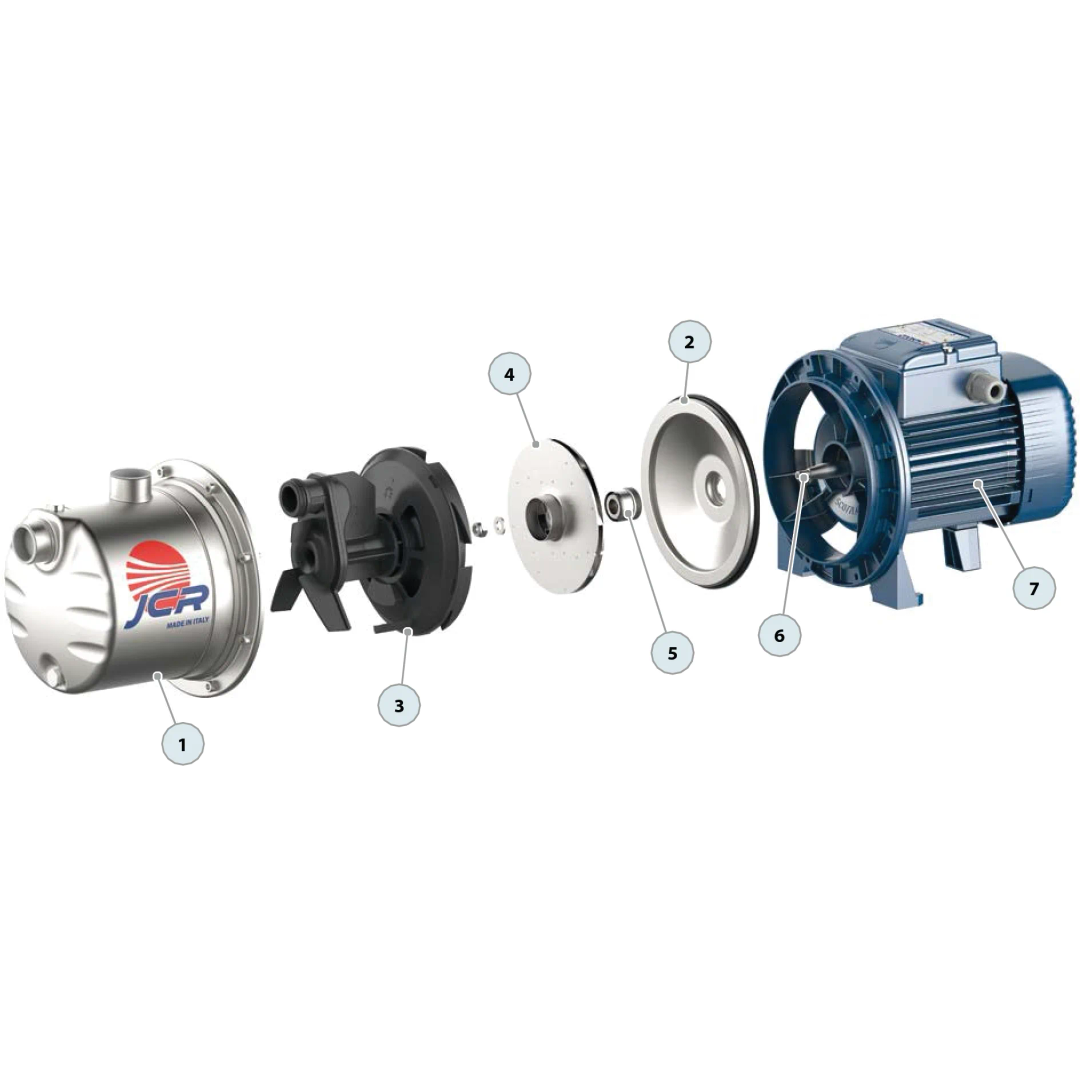

Materials and Components

• Pump Body: Stainless steel AISI304, provided with ISO 228/1 threaded ports
• Cover: Stainless Steel AISI304 Ejector Unit: Noryl Impeller:
• Stainless Steel AISI304 Mechanical
• Seal: Water Pump Seal Shaft Materials JCR1 AR-12 ø12mm Ceramic/Graphite/NBR
• Motor Shaft: Stainless Steel AISI431
• Electric Motor: single phase 230V-50Hz with winding integrated thermal motor protection
• Insulation: Class F Protection Rating: IP X4
