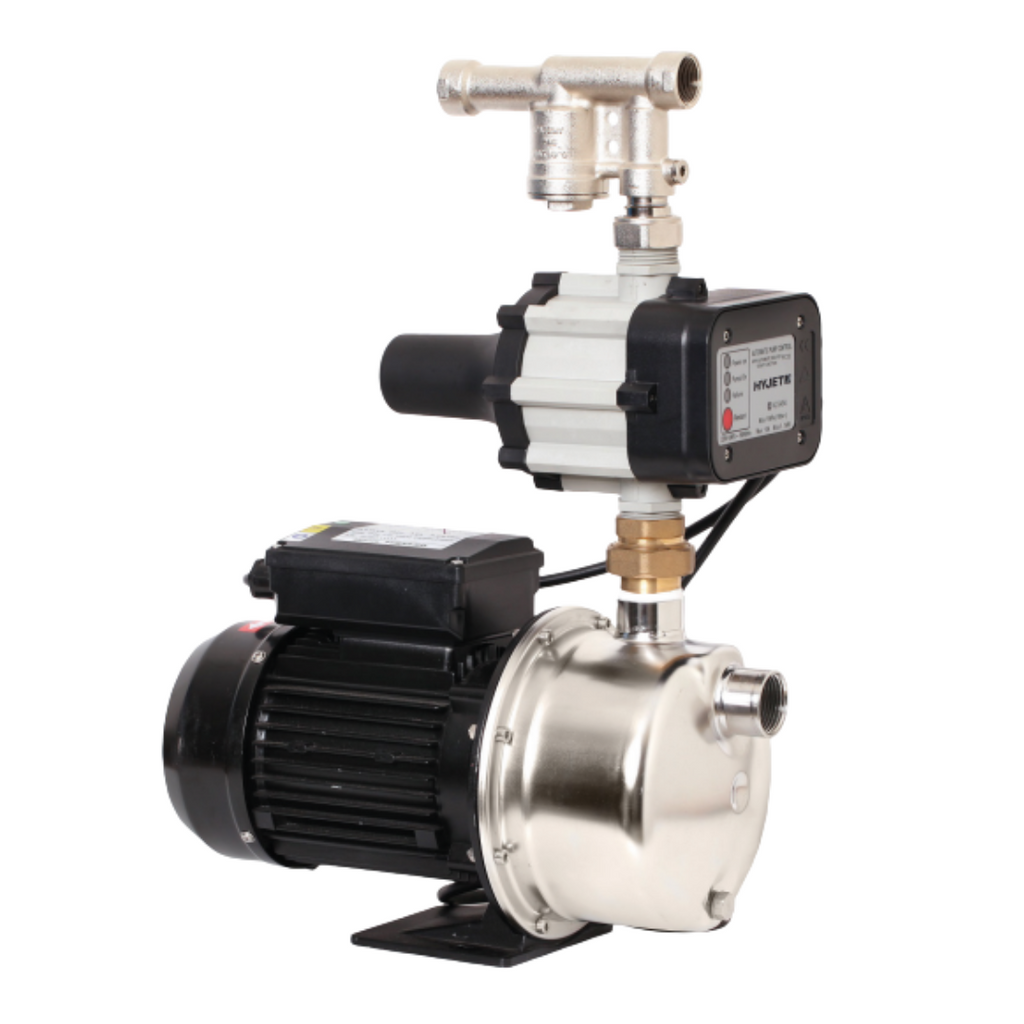

Mhrs1 Maxisave Mhr25 Rain/Mains Valve With Hyjet Hsm370-PC Pressure Pump

The MHRS1 MaxiSAVE MHR25 is a fully automatic hydraulic rainwater-to-mains water changeover valve designed for use with pressure pump systems. Ideal for domestic and commercial water-saving applications such as toilet flushing, laundry, and general household use, the MHR25 seamlessly switches to mains water when rainwater is unavailable.

Paired with the Hyjet HSM370-PC Pressure Pump, this system ensures consistent water pressure and reliable performance without the need for a float switch. It operates with an electronic pressure controller featuring auto-restart functionality, making installation easy and maintenance minimal. The unique dual 1” BSP outlets make the MaxiSAVE system especially versatile for both residential and commercial setups.

• Fully automatic rain/mains water changeover valve with pressure pump – no float switch required
• Key Features
  Fully automatic hydraulic rain-to-mains changeover
• No float switch required – compatible with electronic pressure controllers
• Dual 1” BSP outlets for high flow and easy connection
• Solid brass construction – durable and weatherproof
• No electricity or electronics required – zero power consumption
• Easy installation – can be mounted in any position
• Maintenance-free design
• Certified dual check valve for effective backflow prevention
• Patented design, ideal for both domestic and commercial use

Specifications

• Max Mains Pressure: 1050 kPa
• Max Pump Pressure: 1050 kPa
• Maximum Flow Rate: >200 L/min
• Maximum Water Temperature: 50°C
• Rainwater Inlet: 25mm (1” BSP Female)
• Mains Water Inlet: 25mm (1” BSP Female)
• Outlets: 25mm (1” BSP Female)
• Weight: 1.9 kg
