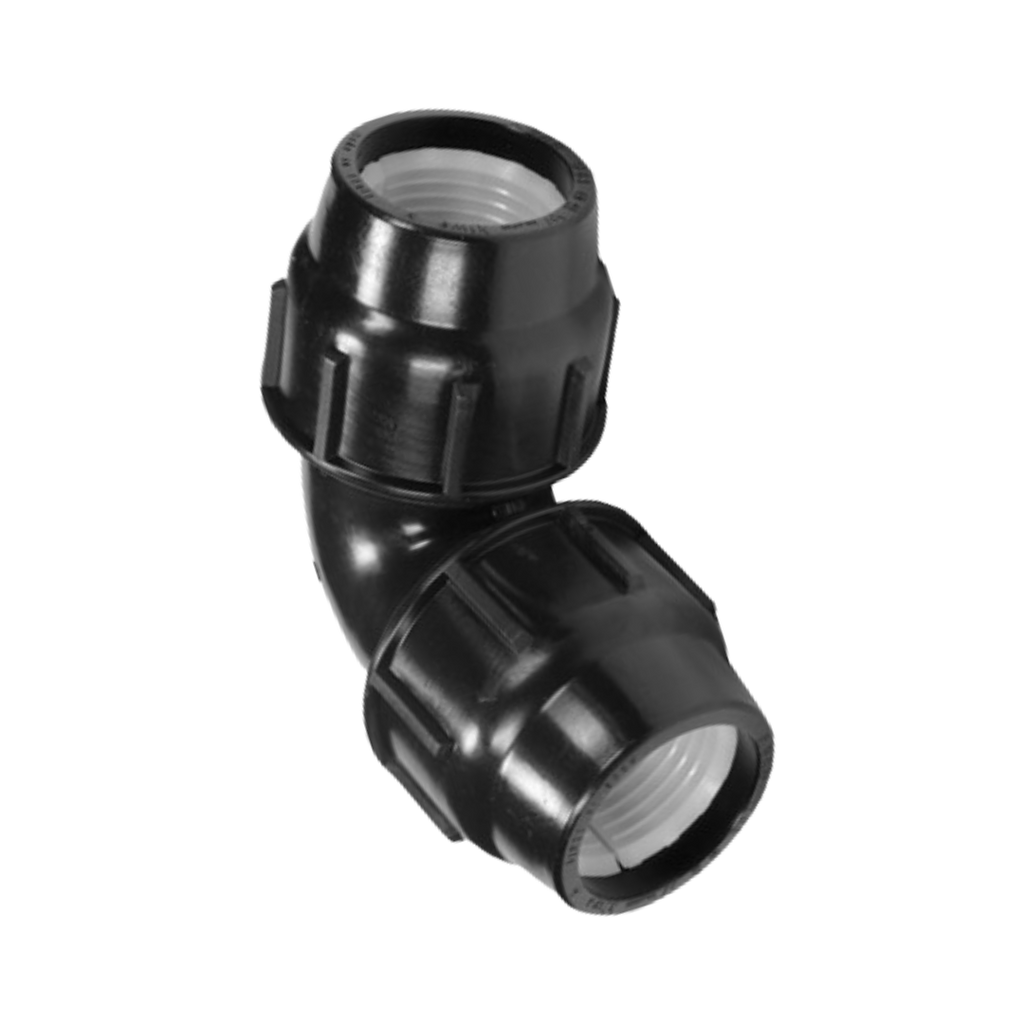

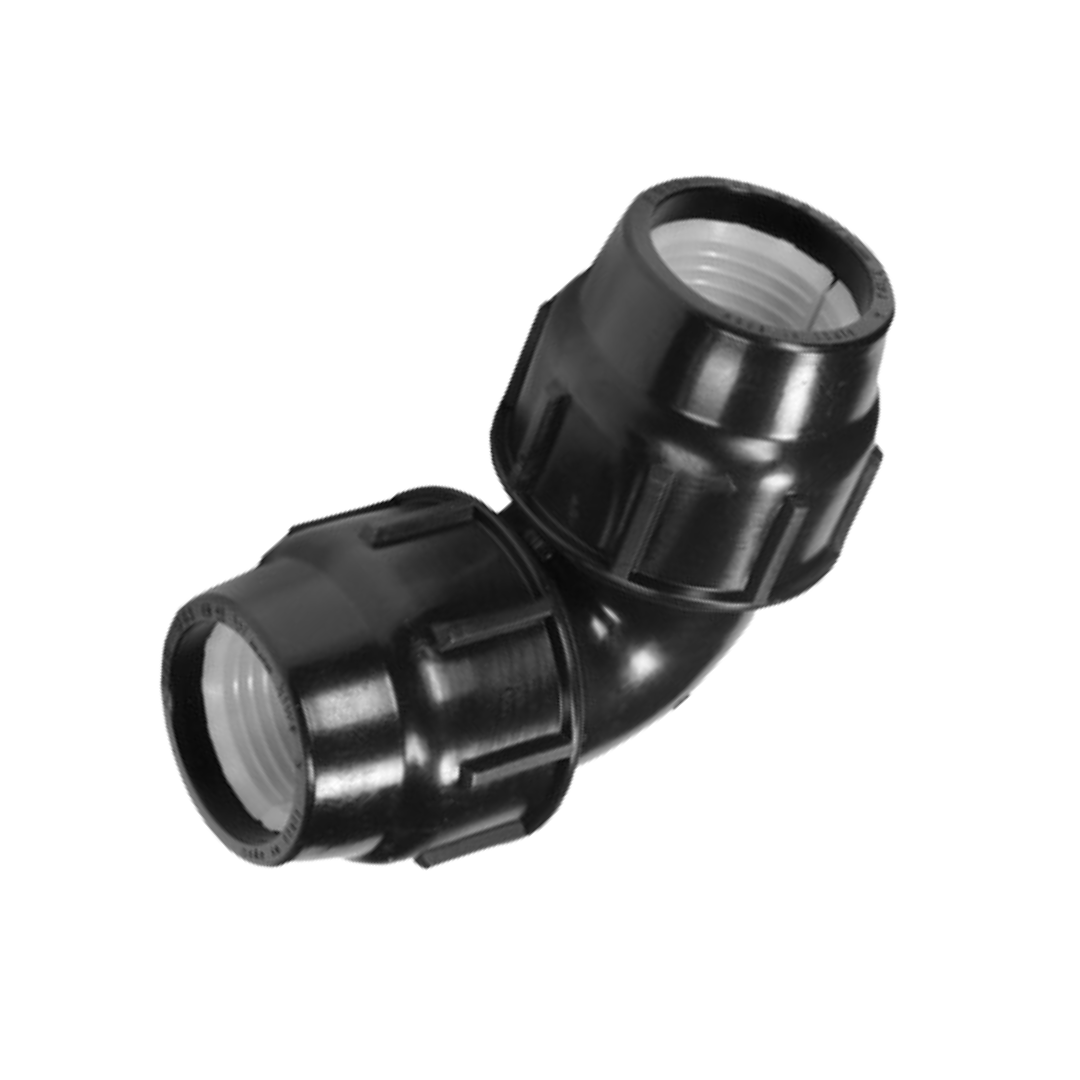

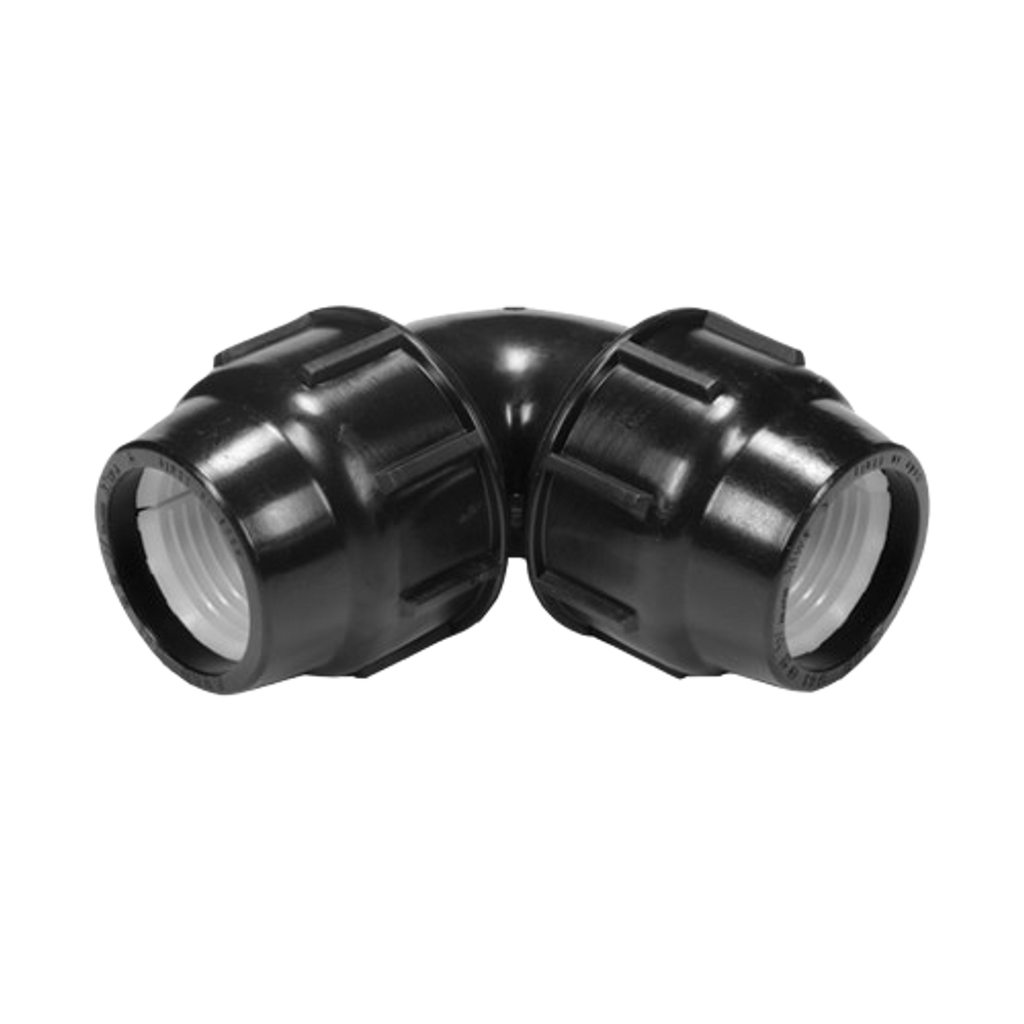

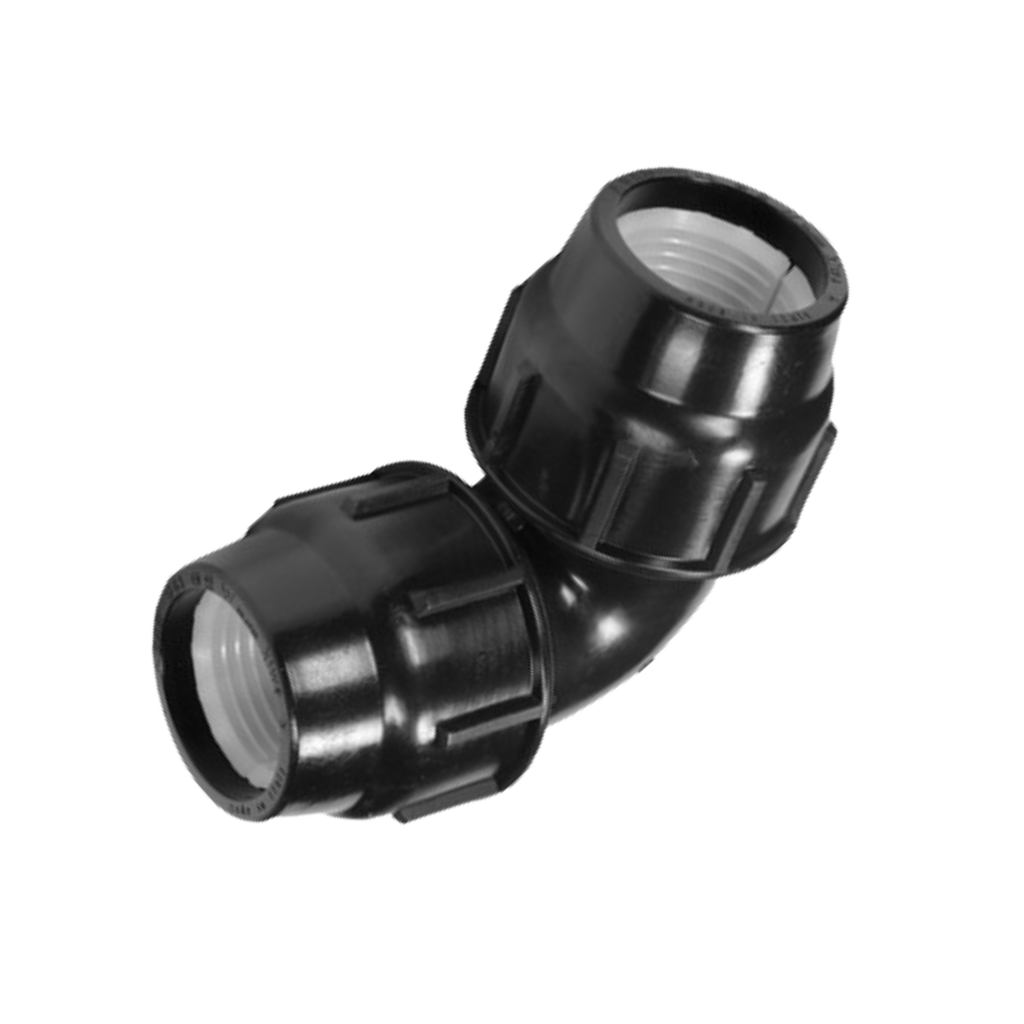

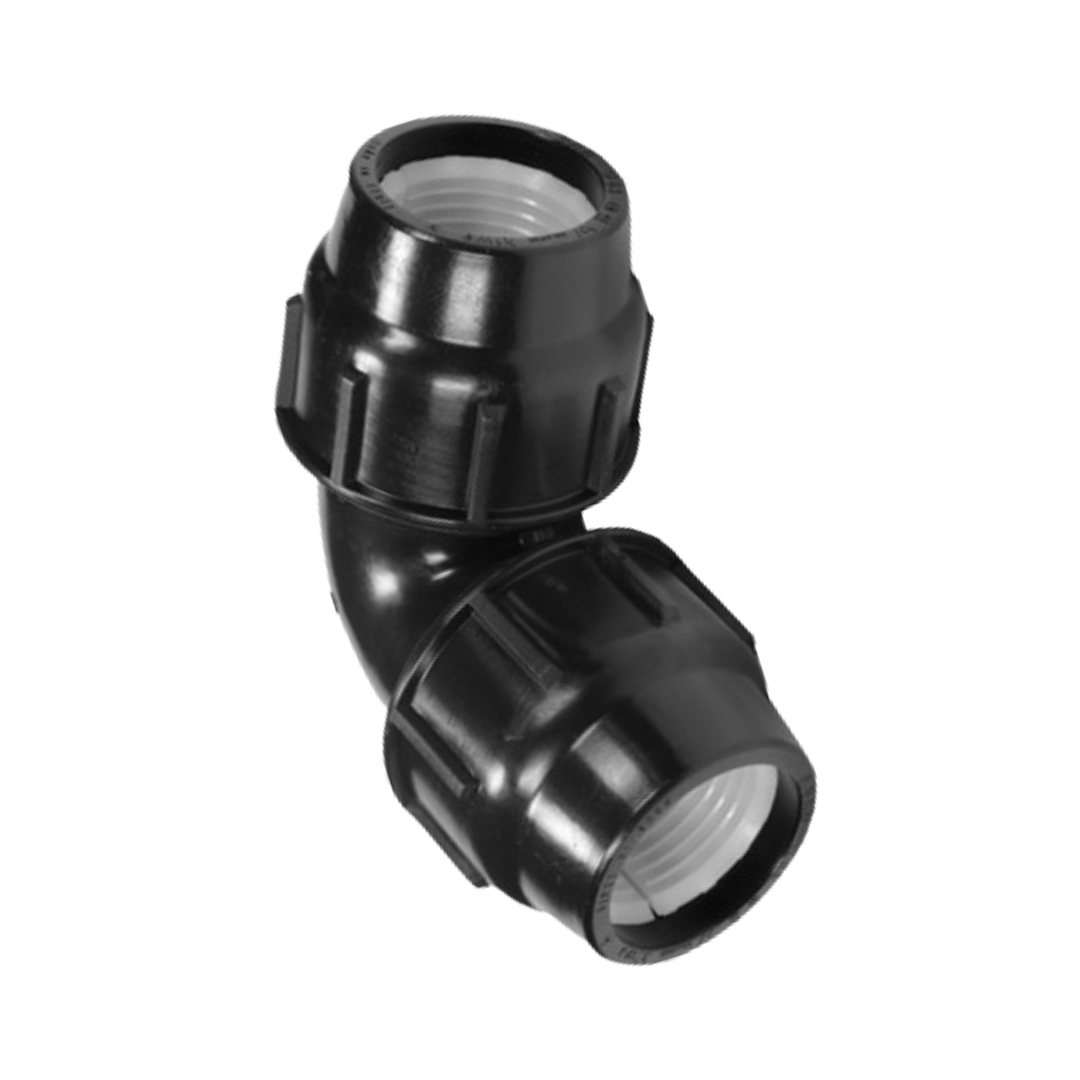

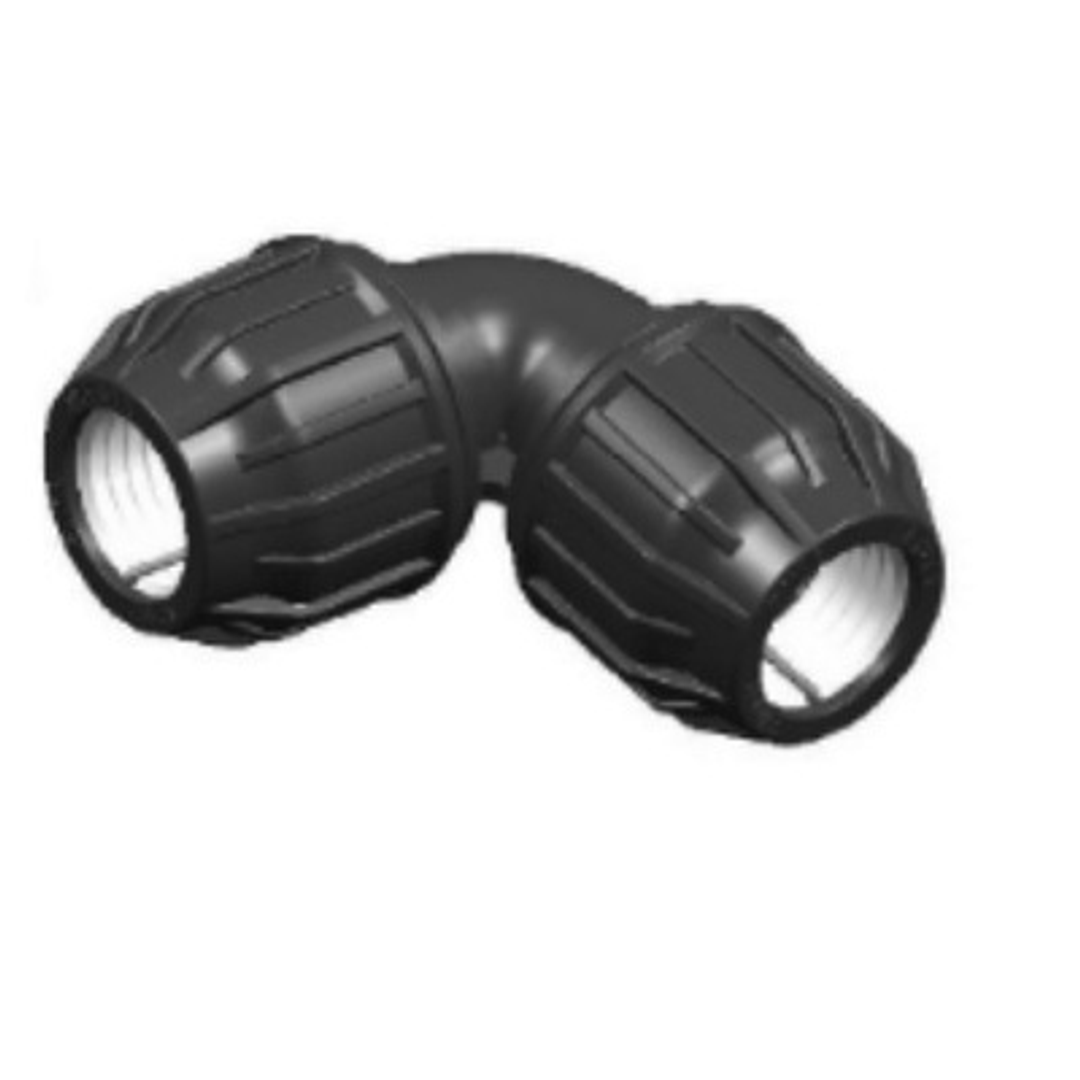

Poly Metric Elbow

Poly Metric Elbow

The Poly Metric Elbow is a durable compression fitting designed to change the direction of PE (polyethylene) pipework while maintaining a strong, watertight seal. Ideal for both domestic and commercial plumbing as well as irrigation systems, this elbow is manufactured from high-quality polyethylene that provides long-lasting reliability in demanding conditions.

With a simple compression grip and O-ring sealing mechanism, installation is quick, secure, and tool-friendly. Perfect for high-pressure water systems, it complies with Australian and international standards for potable water use.

Key Features:

• Durable black PE construction with excellent chemical, corrosion, and UV resistance.
• Compression fitting design with O-ring ensures leak-free performance.
• Designed to change direction of pipe runs while maintaining high flow.
• Equal size ends – suitable for connecting same-size poly pipe.
• Quick & easy installation without the need for adhesives or special tools.
• Suitable for potable water systems (AS/NZS4020 certified).
• Made to AS/NZS4129 & ISO14236 standards for PE pressure pipe systems.
• Maximum working pressure: PN16 (1600 kPa / 235 psi).
• Reliable in both residential and irrigation applications.

Note: A licensed plumber must be used when installing into mains-connected pipework.

Specifications:

• Material: High-strength polyethylene (PE)
• Standards: AS/NZS4129, ISO14236, AS/NZS4020
• Working Pressure: Up to PN16 (1600 kPa / 235 psi)
• Sizes Available: 16mm to 110mm (recommended: 25mm+)
• Applications: Domestic water supply, irrigation systems, commercial plumbing

Variants:

• PBM261 — Metric 7050 Elbow 20P x 20P (PEL)(EQ)
• PBM262 — Metric 7050 Elbow 25P x 25P (PEL)(EQ)
• PBM263 — Metric 7050 Elbow 32P x 32P (PEL)(EQ)
• PBM264 — Metric 7050 Elbow 40P x 40P (PEL)(EQ)
• PBM265 — Metric 7050 Elbow 50P x 50P (PEL)(EQ)
• PBM266 — Metric 7050 Elbow 63P x 63P (PEL)(EQ)
