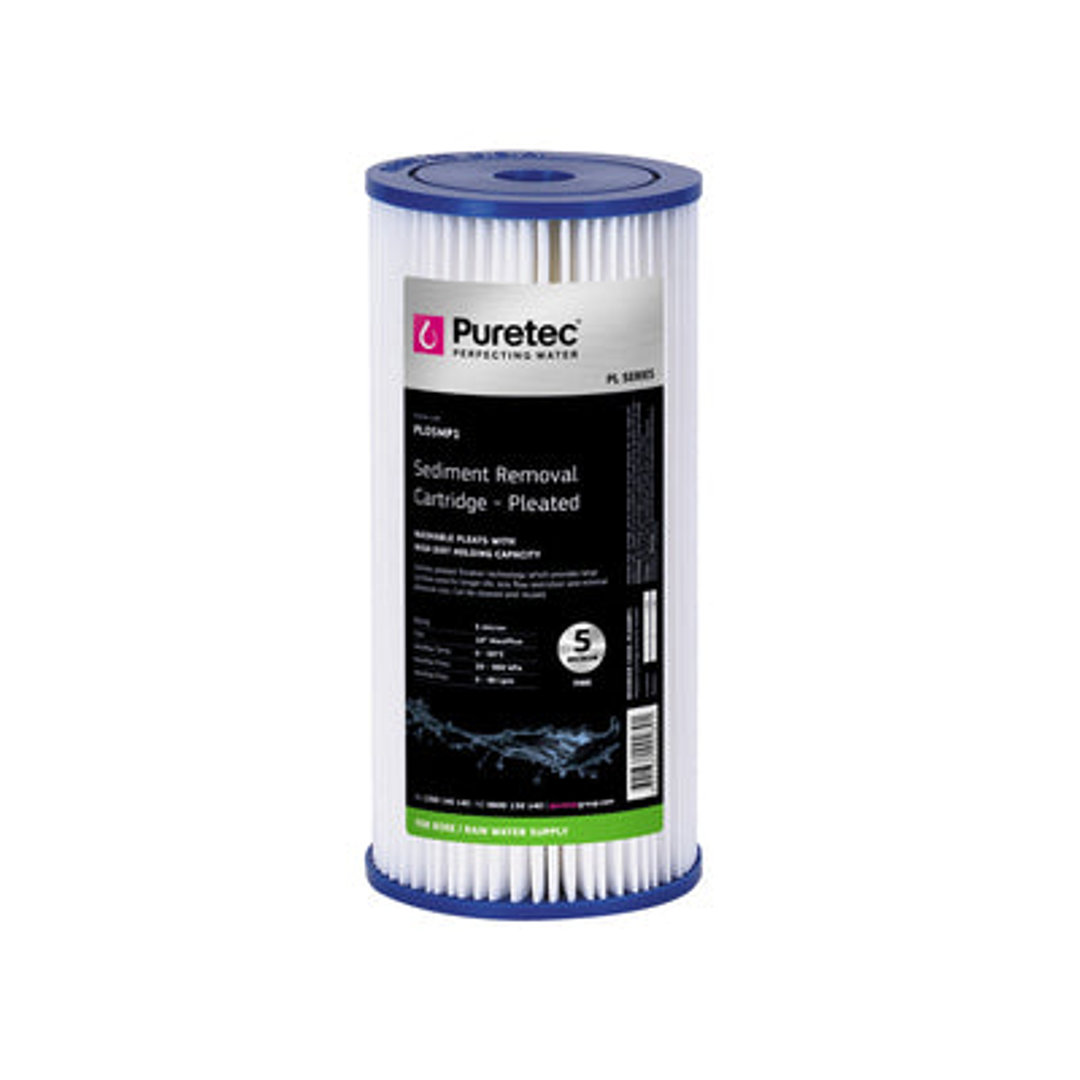

Puretec Pleated Sediment Maxi Plus Cartridge 10' 5Um Pl05Mp1

Puretec Pleated Sediment MaxiPlus Cartridge 10" 5µm PL05MP1

The Puretec PL05MP1 is a 5-micron pleated cartridge in the larger MaxiPlus™ 4.5" x 10" format, effectively removing sediment including sand, rust and debris while supporting higher flow rates than a standard-diameter cartridge.

Pleated Depth Filtration in a MaxiPlus Format

The media is pleated around a polypropylene core for added strength, with the ends immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this way fuses the three components together to form a unitized end cap and gasket. The overlap seam is sonically welded to reduce internal bypass and improve filtration efficiency, while the pleated design maximises dirt-holding capacity and extends the time between changes or cleaning.

Key Features

• Washable and reusable pleated cartridge
• 5-micron sediment filtration rating
• MaxiPlus™ 4.5" x 10" format for higher flow and capacity
• Large surface area for sediment removal
• Durable polyester media, bacteria and chemical resistant

Why Choose the Puretec PL05MP1?

The larger MaxiPlus format of the PL05MP1 suits whole-house and higher-demand systems where more sediment-holding capacity and flow are needed than a standard 2.5" cartridge can provide.

Installation and Replacement

Fits compatible MaxiPlus 4.5" x 10" filter housings. Confirm housing compatibility before installation.
