PVC Pressure Female Tee

PVC Pressure Female Tee (Cat 21)

Description:

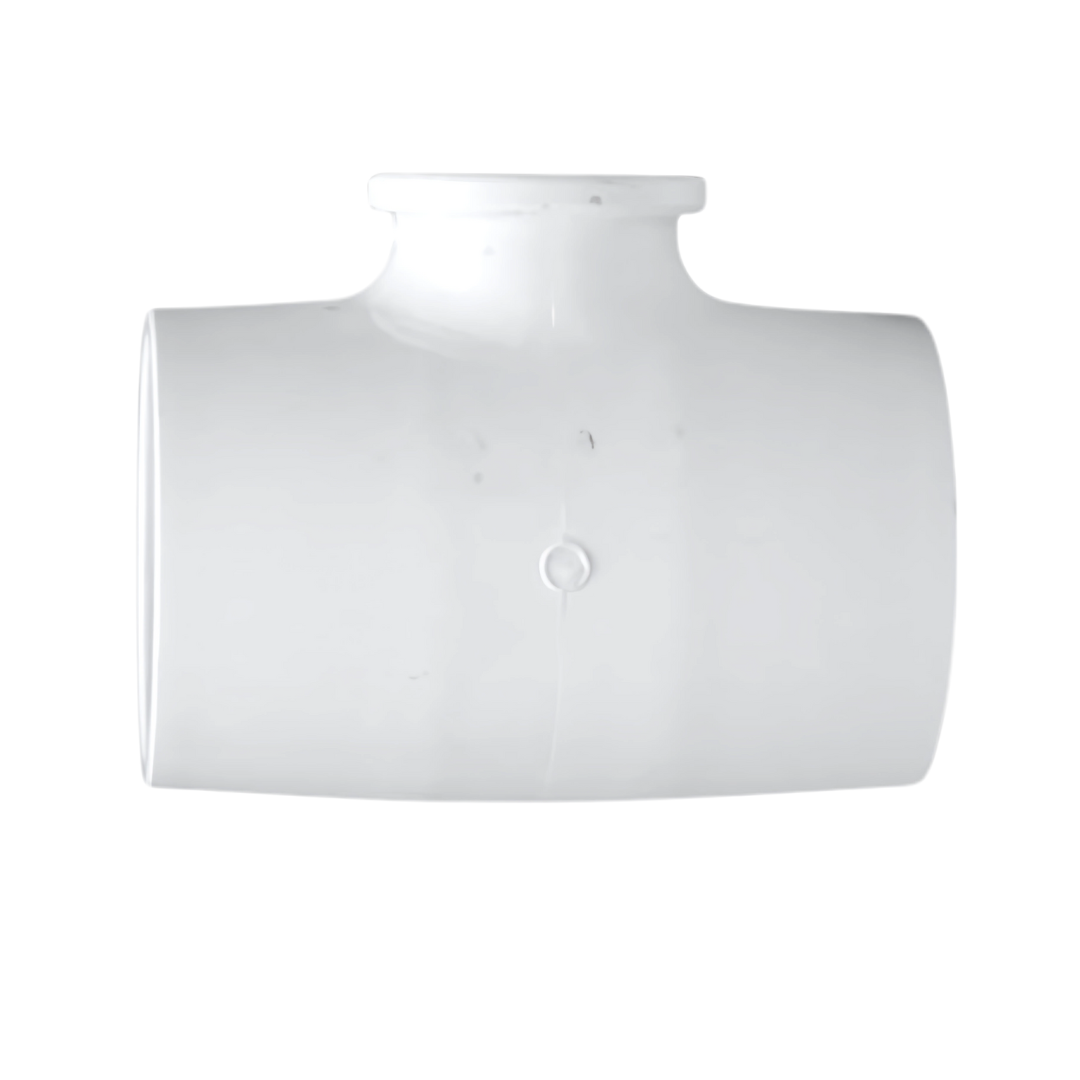

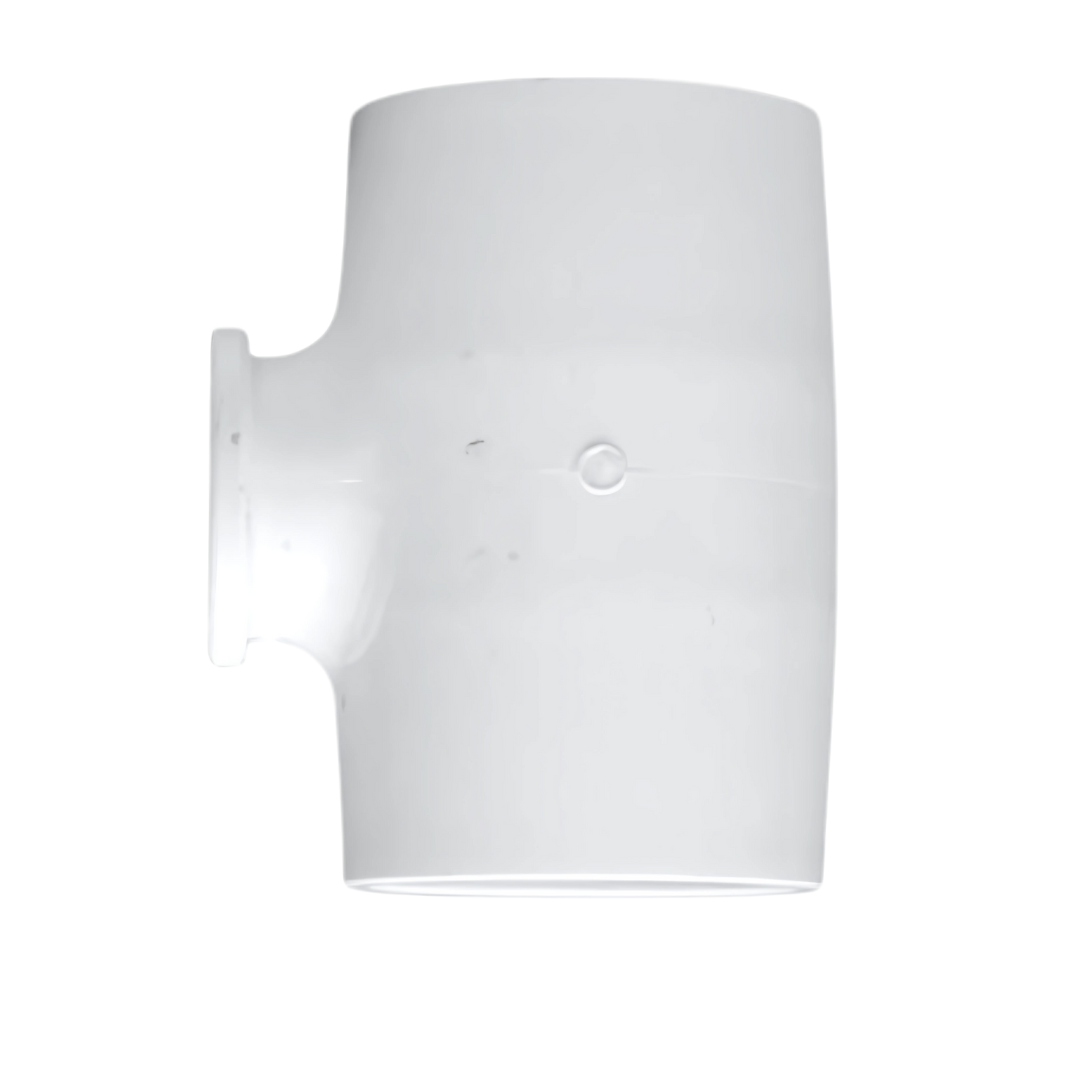

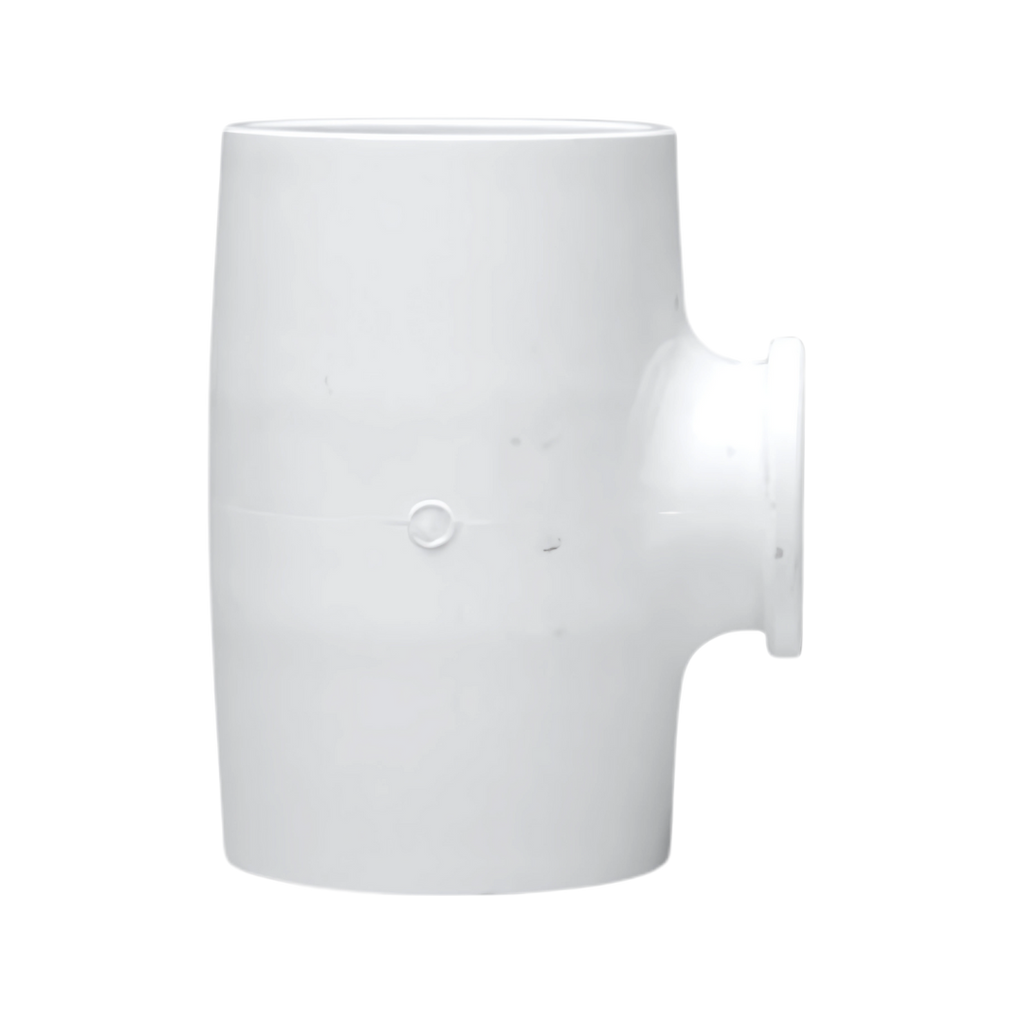

The PVC Pressure Female Tee (Cat 21) is designed to create a 90° branch in PVC pressure pipelines while adapting the branch outlet to a female threaded connection. The main run of the tee is solvent-welded to PVC pipe of equal size, while the centre branch is fitted with a female BSP thread, allowing secure connection to threaded fittings such as risers, valves, or sprinkler heads.

Made from high-quality PVC-U (unplasticised polyvinyl chloride), these tees are strong, reliable, and resistant to corrosion and chemicals, making them suitable for long-term use in pressure-rated systems.

Key Features:

• Creates a 90° branch with a female-threaded outlet
• Main run: solvent weld ends (equal size)
• Branch outlet: female BSP thread (same or reduced size)
• Manufactured from durable PVC-U
• Corrosion, chemical, and UV resistant
• Easy installation with solvent cement jointing (SCJ)
• White or off-white finish
• Available in a wide size range for versatile applications

Applications:

• Potable water distribution
• Pumped sewerage and effluent systems
• Irrigation and turf watering (ideal for sprinkler risers)
• Slurry transport
• Pressure sewerage networks
• Recycled water
• Gas applications (with yellow PVC pipe only)

Specifications:

• Material: PVC-U (rigid)
• Type: Female Tee (Cat 21)
• Connection: Solvent weld socket × Female BSP thread (branch)
• Pressure Rating: PN18 (1800 kPa)
• Pipe Compatibility: PN4.5–PN18 rated pipes
• Temperature Range: 0°C to 50°C (special considerations outside this range)
• Standards:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Products for use in contact with drinking water
• Compliance: WaterMark certified
• Cure Time: 24 hours before pressurisation
• Performance Notes:
• Suitable for above-ground and underground installations
• Not typically used in domestic housing systems
• Provides a reliable threaded take-off point for irrigation, risers, and accessories

Variants (Sizes):

• PPF280 — 12mm × 12mm FI (Equal)
• PPF281 — 20mm × 12mm FI
• PPF283 — 25mm × 12mm FI
• PPF284 — 25mm × 20mm FI
• PPF285 — 25mm × 25mm FI (Equal)
• PPF286 — 32mm × 12mm FI
• PPF288 — 32mm × 25mm FI
• PPF291 — 40mm × 25mm FI
• PPF293 — 50mm × 20mm FI
