DWV Socket Reducer

DWV Socket Reducer
Sizes: 50mm to 225mm

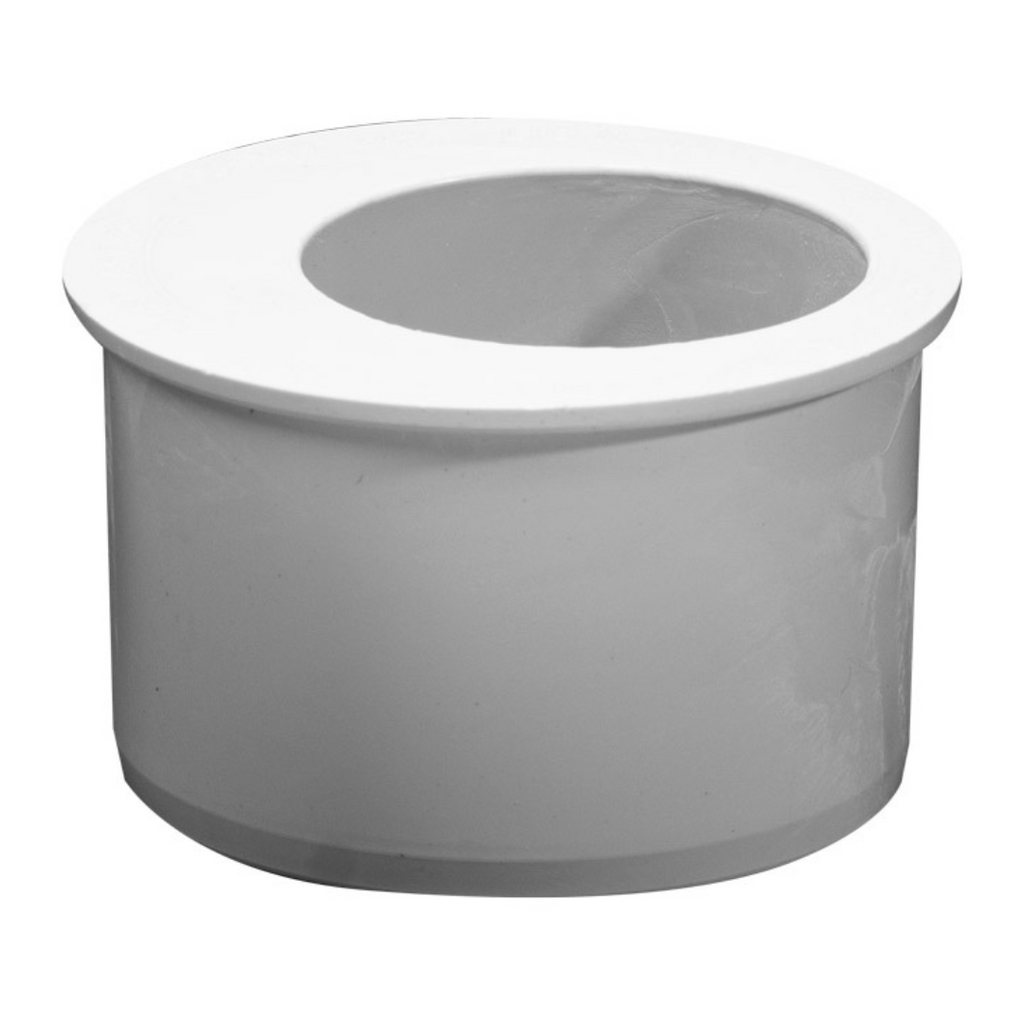

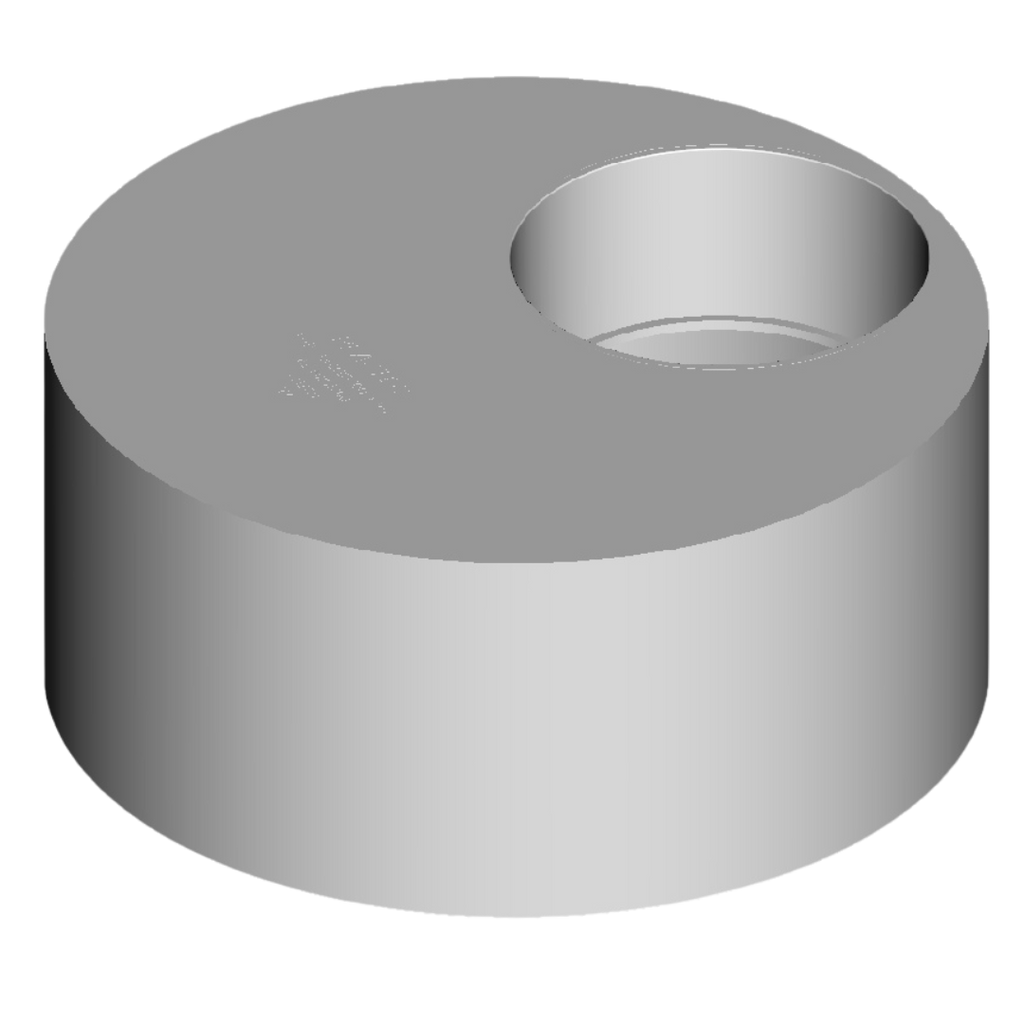

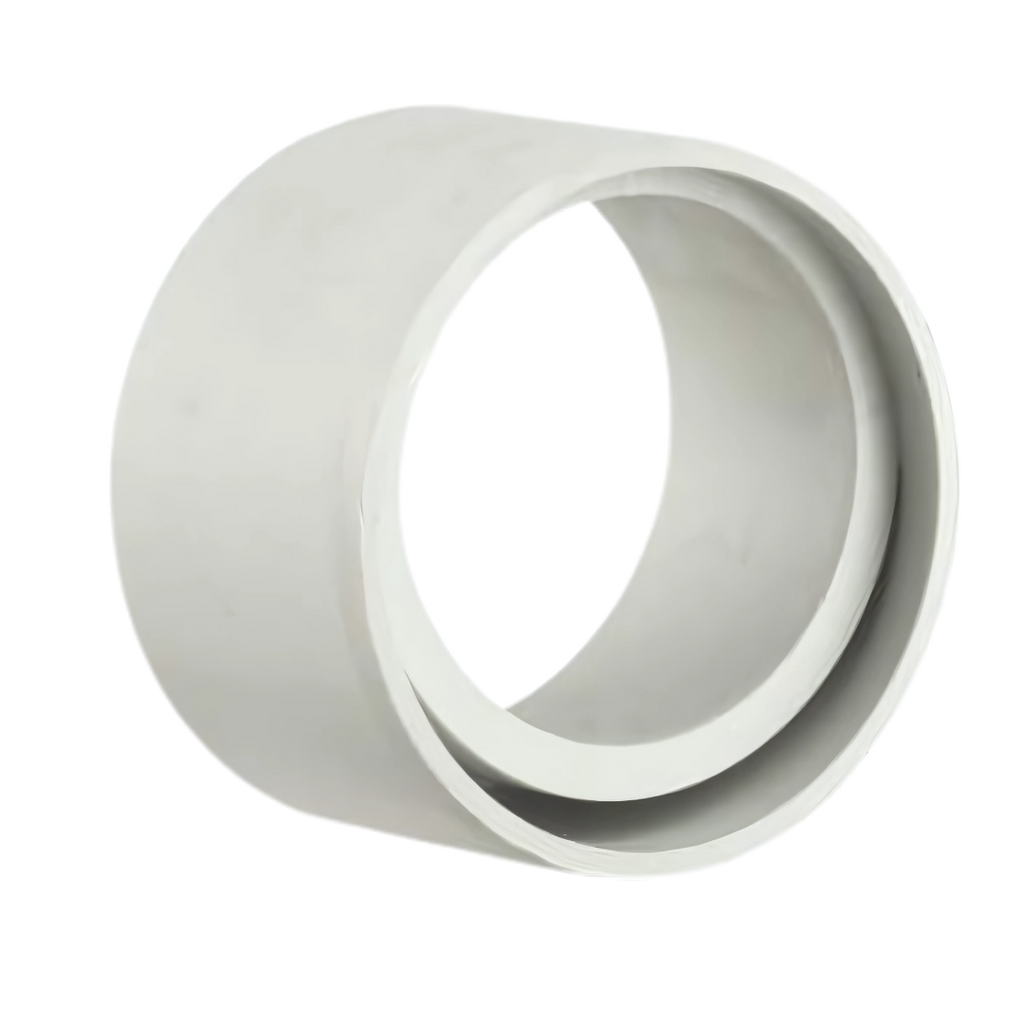

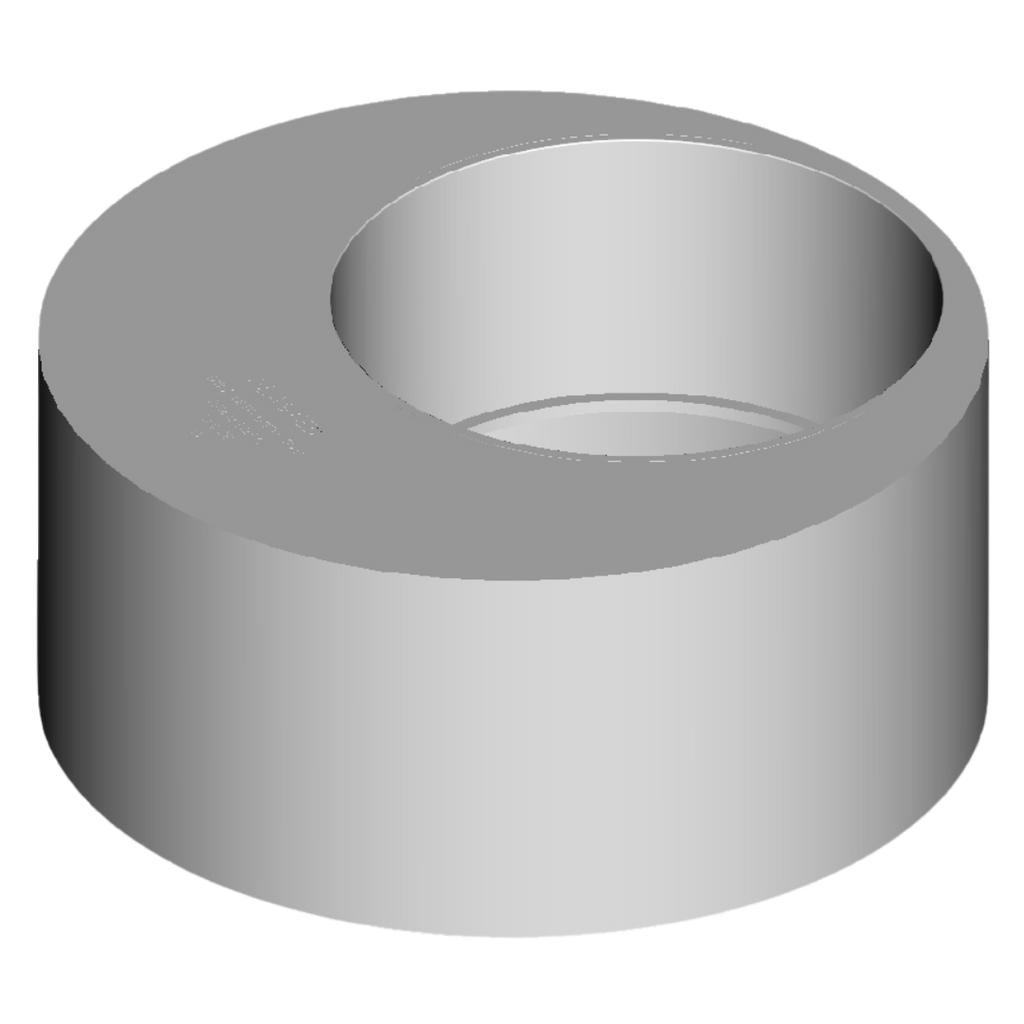

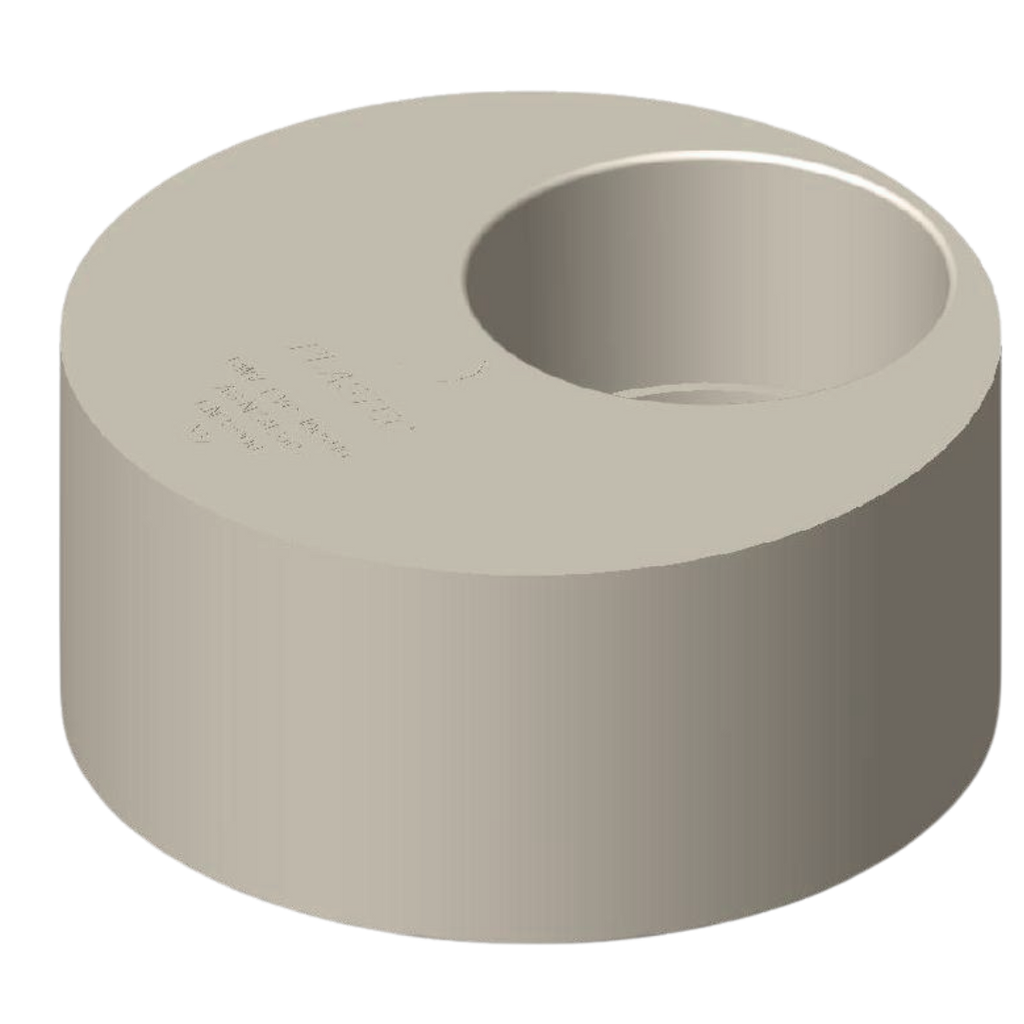

The DWV Socket Reducer is a key component in any Drainage, Waste, and Vent (DWV) system, designed to effectively reduce pipe size within a run. It provides a seamless transition from a larger to a smaller pipe diameter, ensuring a reliable and efficient flow of wastewater in domestic or commercial plumbing applications.

Key Features:

• Socket reducer design – the larger end fits inside an existing pipe, while the smaller end accepts a pipe fitting inside it
• Available in a range of sizes from 50mm to 225mm
• Designed specifically to accommodate proper ventilation and flow — always ensure vent points are appropriately installed
• Pale-grey colour for standard DWV system identification

Manufactured for compatibility with other DWV components including pipe reducers and LITs (Level Invert Tapers) – each has a distinct application

Material & Construction:
Made from PVC-U (unplasticised polyvinyl chloride), this socket reducer offers:

• High resistance to corrosion and chemical degradation
• Excellent hydraulic performance
• Resistance to biological fouling (micro- and macro-organisms)
• Toughness, durability, and light handling weight
• Simple, solvent cement (SCJ) jointing for secure installation

Installation Notes:

• Use solvent cement joints (SCJ) for strong, watertight connections
• Allow 24 hours for joints to fully cure and reach maximum mechanical strength
• Always follow the PVC-U installation guide for best results

Applications:

• Sewer and waste pipe systems
• Greywater and blackwater drainage
• Sink, basin, and vent lines
• Stormwater networks (with appropriate adapters)
• Suitable for both above-ground and underground installations

Note: While traditionally called "90-degree" fittings, most DWV fittings are manufactured at 85–88 degrees to promote proper flow and prevent stagnation in drainage systems.

Performance:

• Suitable for temperatures between 0°C and 50°C
• Conforms to AS/NZS 1260 – PVC-U pipes and fittings for DWV applications

The DWV Socket Reducer is essential for adapting pipe sizes while maintaining system integrity and flow. Be sure to compare this with other reducers such as LITs and Pipe Reducers to ensure the correct application.
