Stormwater 90 Degree Classic Downpipe Bend

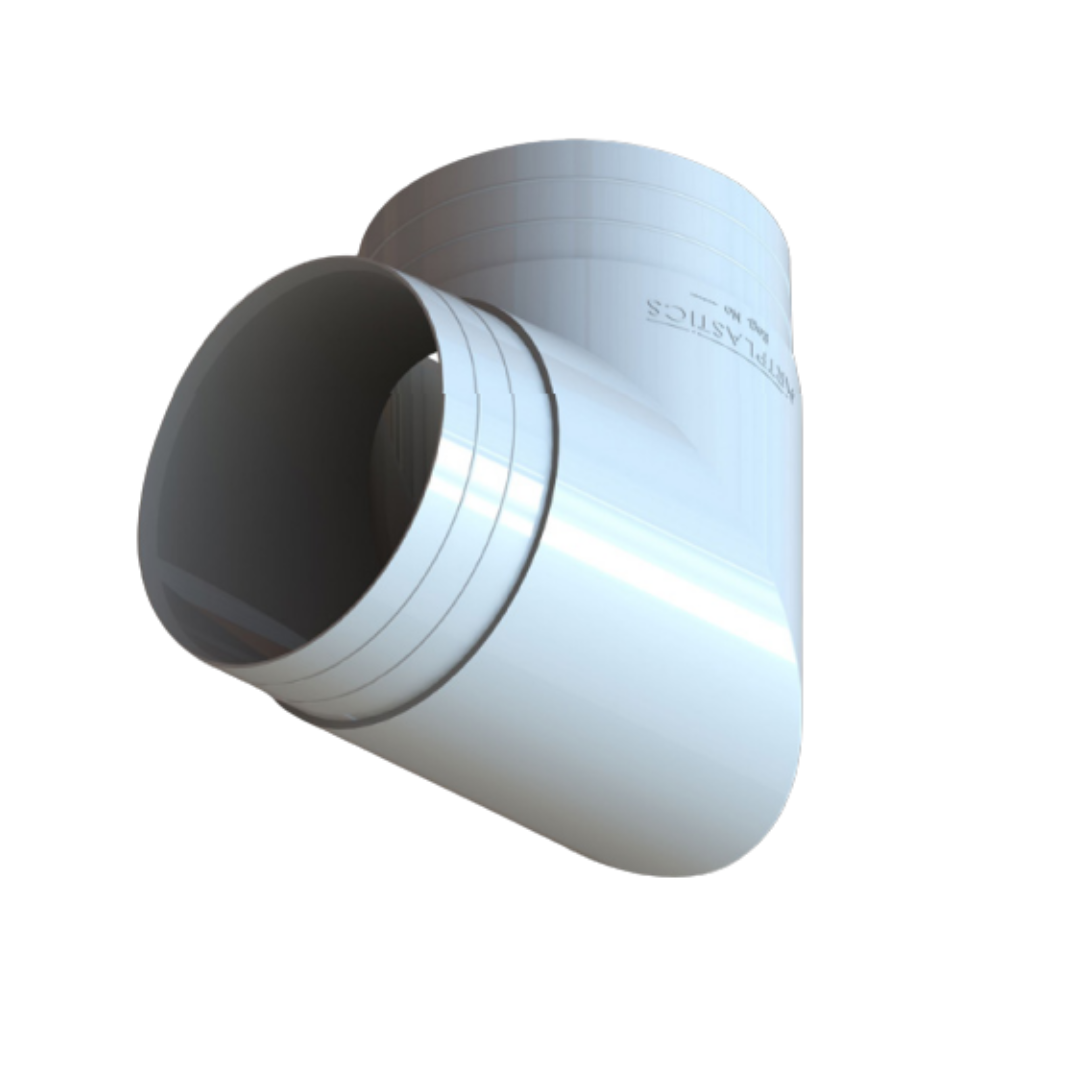

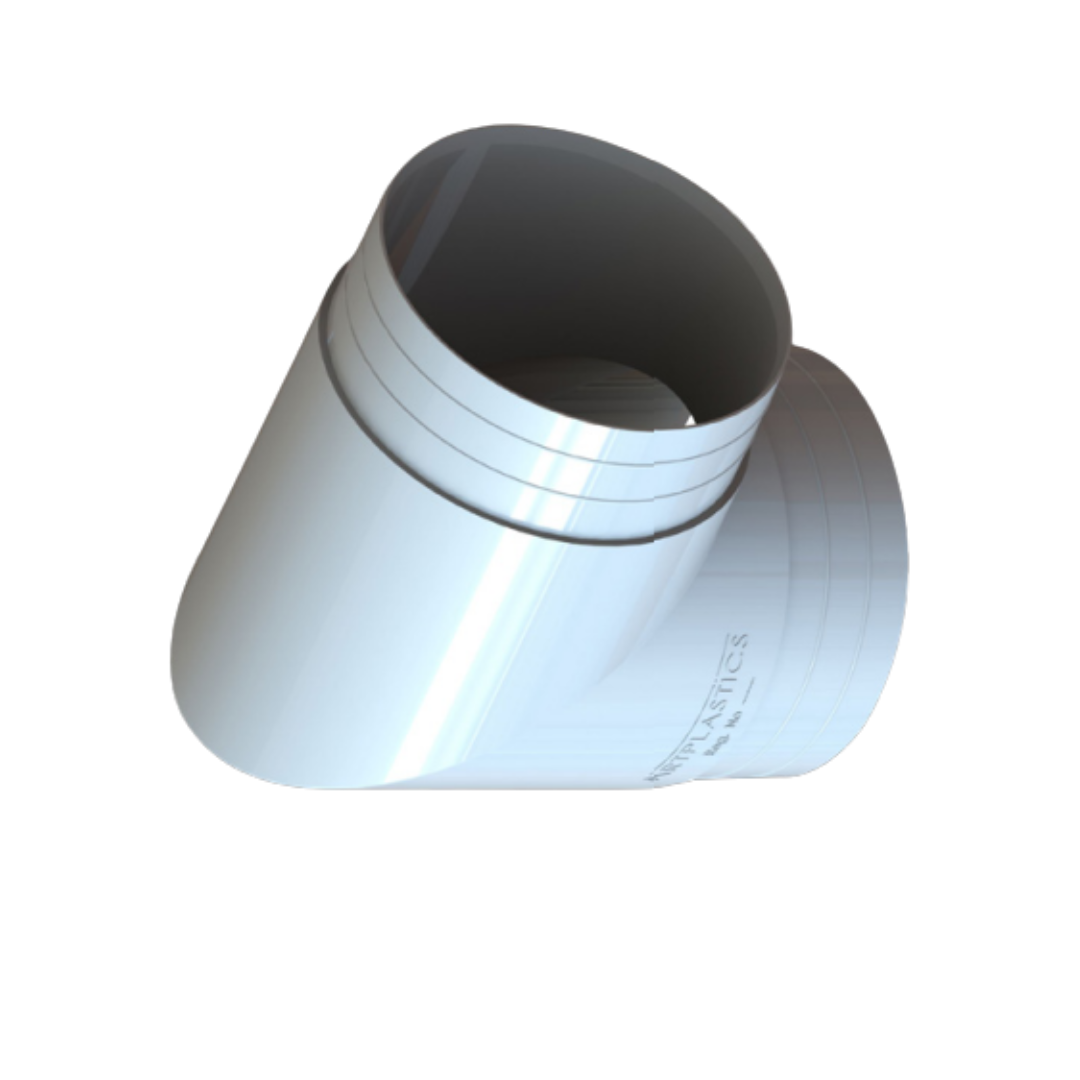

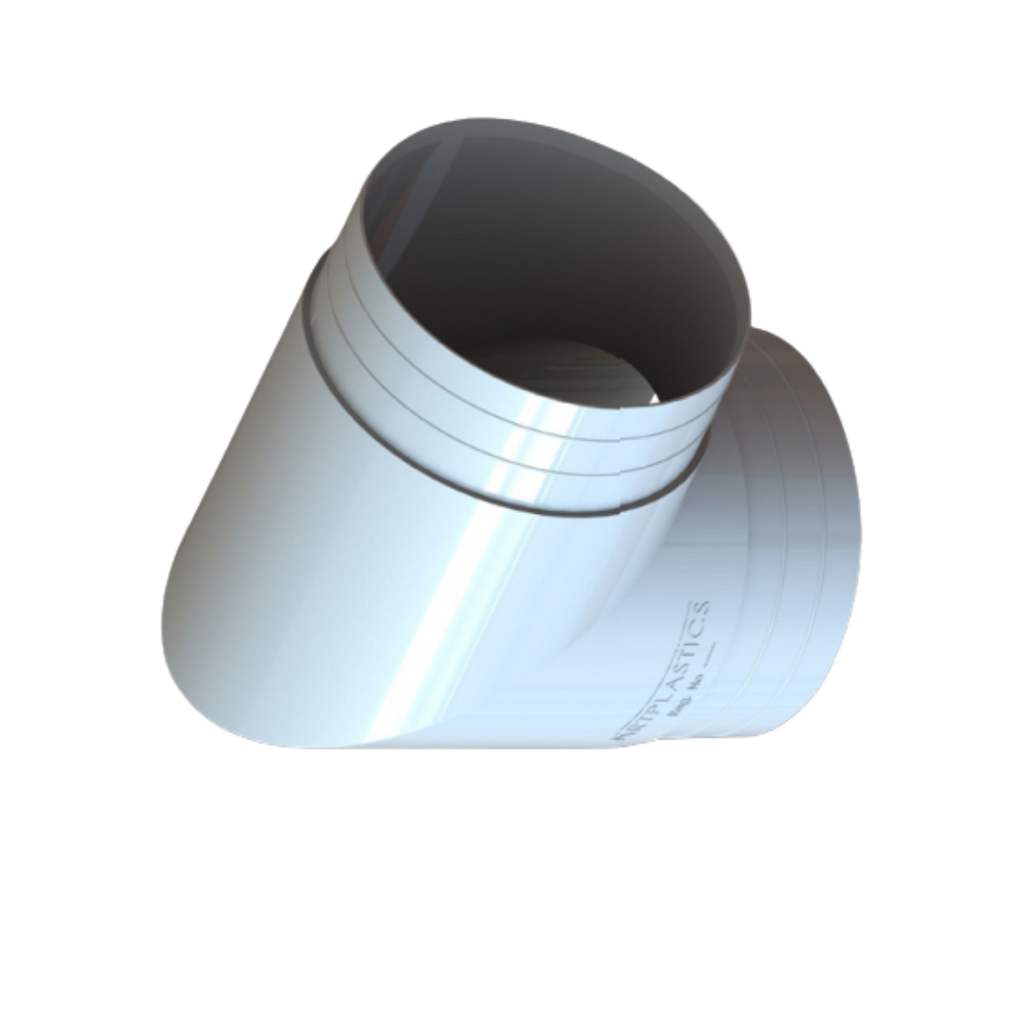

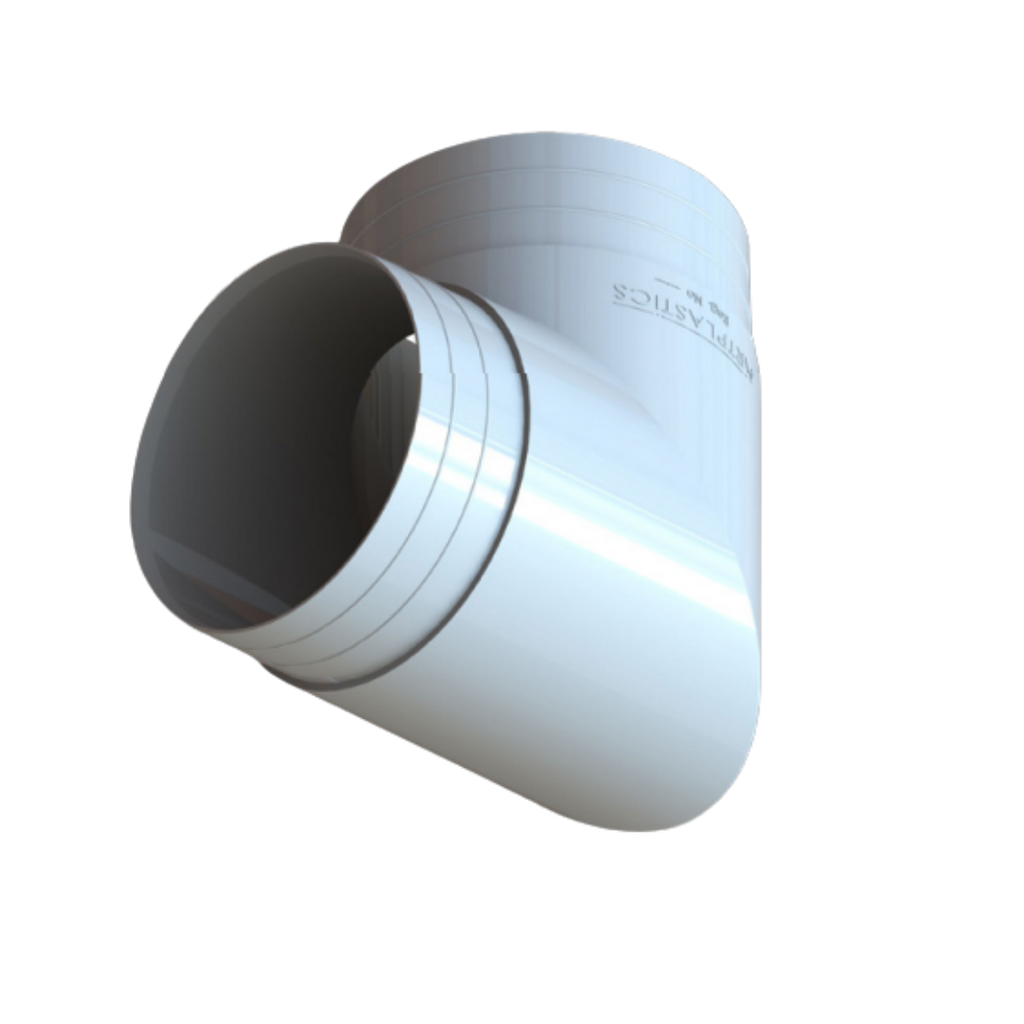

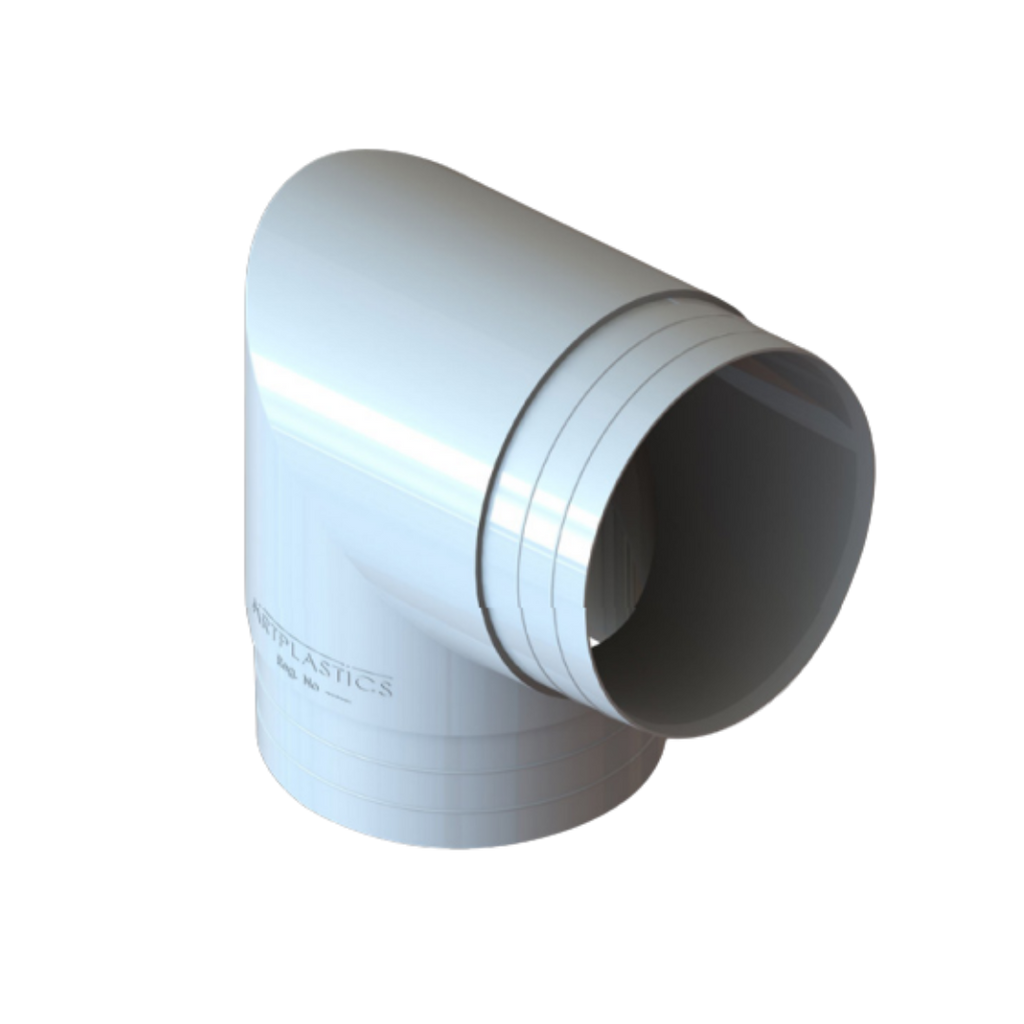

Stormwater 90° Classic Downpipe Bend – PVC-U

The Stormwater 90° Classic Downpipe Bend is specially designed for downpipe connections only, providing a smooth directional change from vertical downpipes to stormwater drainage systems. Its unique classic design ensures water is efficiently guided while maintaining aesthetic appeal.

Made from rigid PVC-U, this bend is corrosion-resistant, durable, and suitable for both domestic and commercial downpipe applications.

Key Features

• Classic Downpipe Design – Specifically for use with downpipes, ensuring smooth water flow.
• Durable PVC-U Construction – Resistant to corrosion, chemicals, and biological growth.
• Female-Female (FF) or Standard Connection – Allows secure pipe insertion for reliable, leak-free joins.
• Precision Angle – Typically 85–95°, engineered for downpipe water flow optimization.
• UV & Temperature Resistant – Suitable for above-ground installation; temperature range 0–50°C.
• Compliance – Made to AS/NZS 1254 standards.

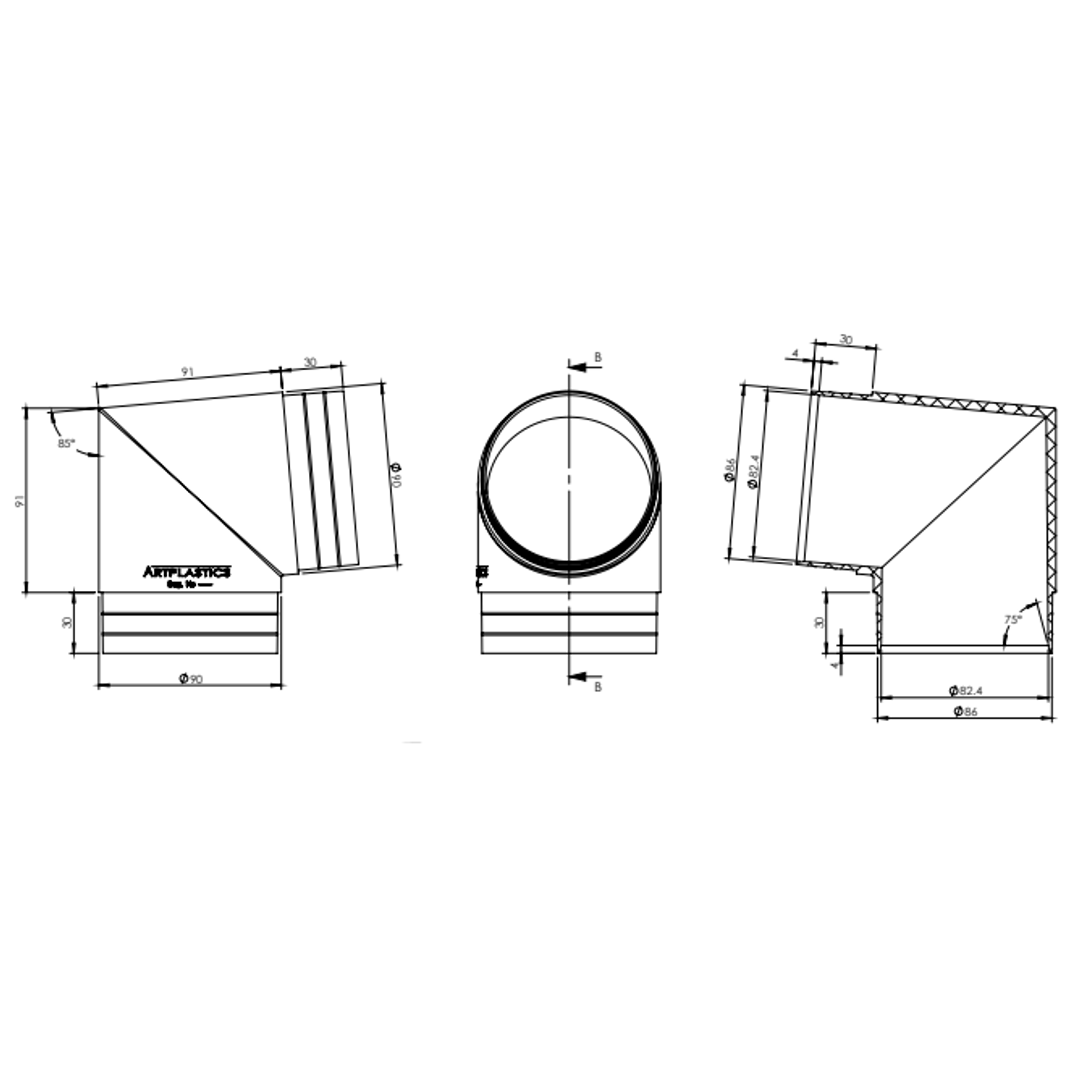

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Female-Female (FF) or standard (check variant)
• Bend Angle: 85–95° (classic downpipe angle)
• Installation: Solvent Cement Joint (SCJ), allow 24 hours for full strength
• Applications: Downpipe connections to stormwater systems

Variants (SKU – Size)

• PSW0096 — 90mm Classic Downpipe Bend, 95° (Downpipe use only)
• PSW0099 — 100mm Classic Downpipe Bend, 85° F&F (Art Plastics)

Note: Designed exclusively for downpipe applications. Join with solvent cement (SCJ) and allow 24 hours for full mechanical strength. Not intended for general stormwater pipe directional changes.
