Stormwater 90 Degree Junction

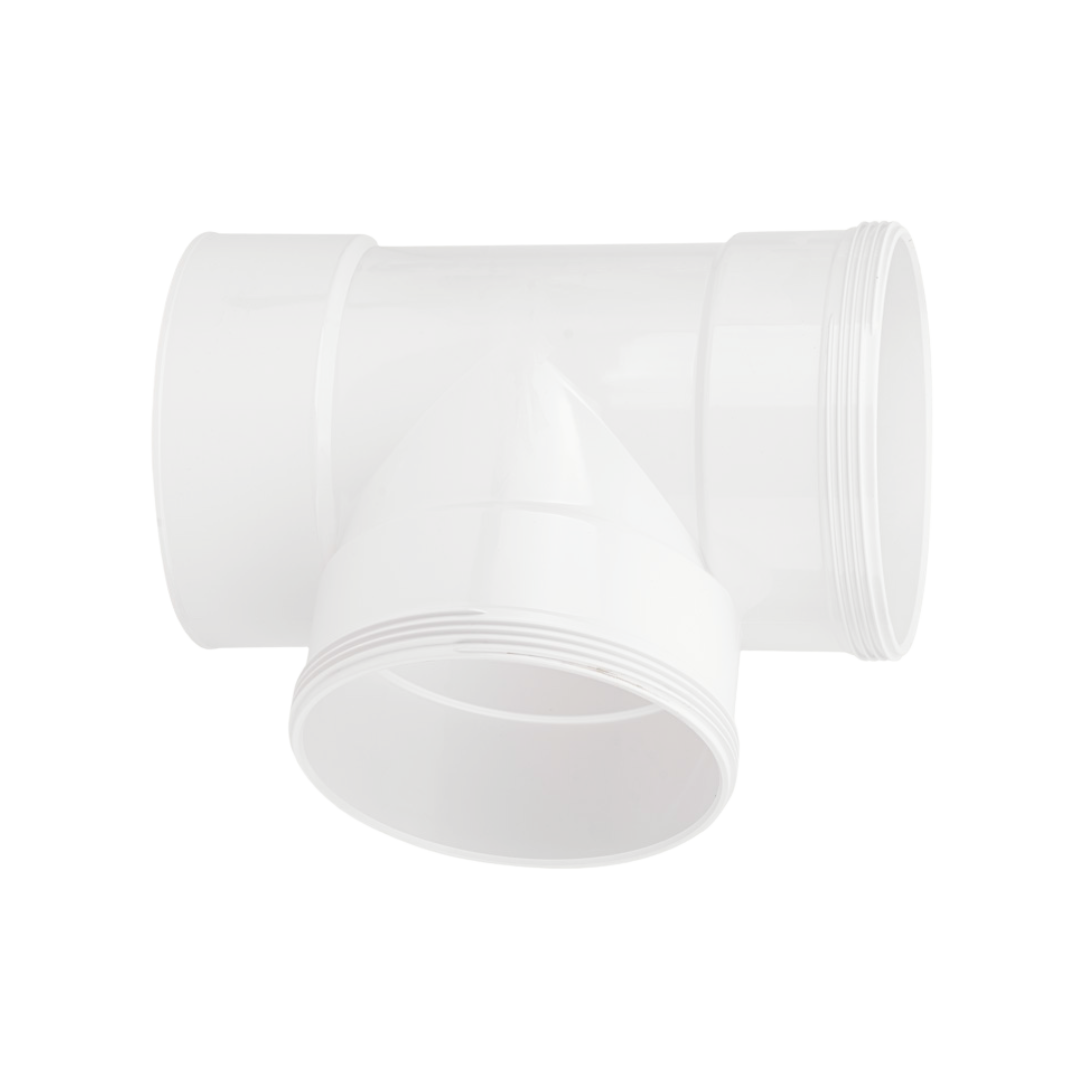

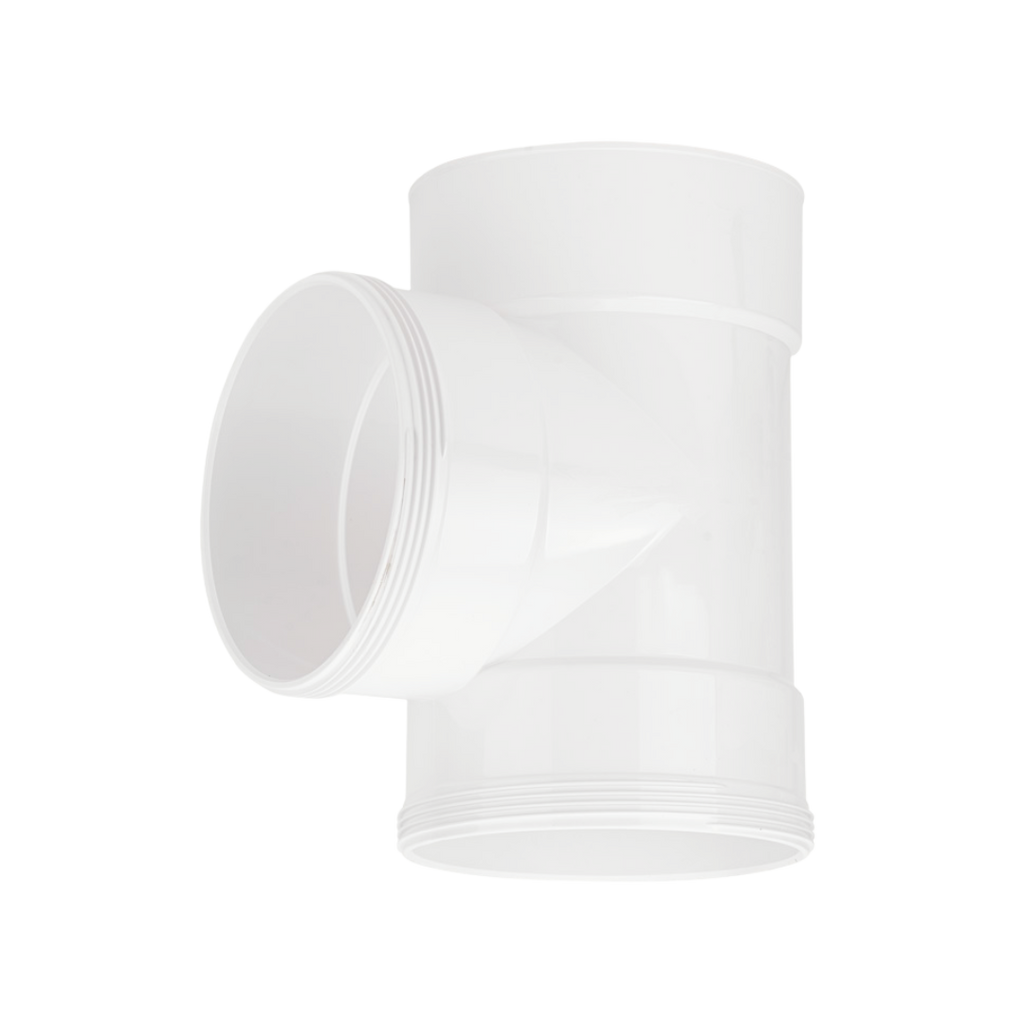

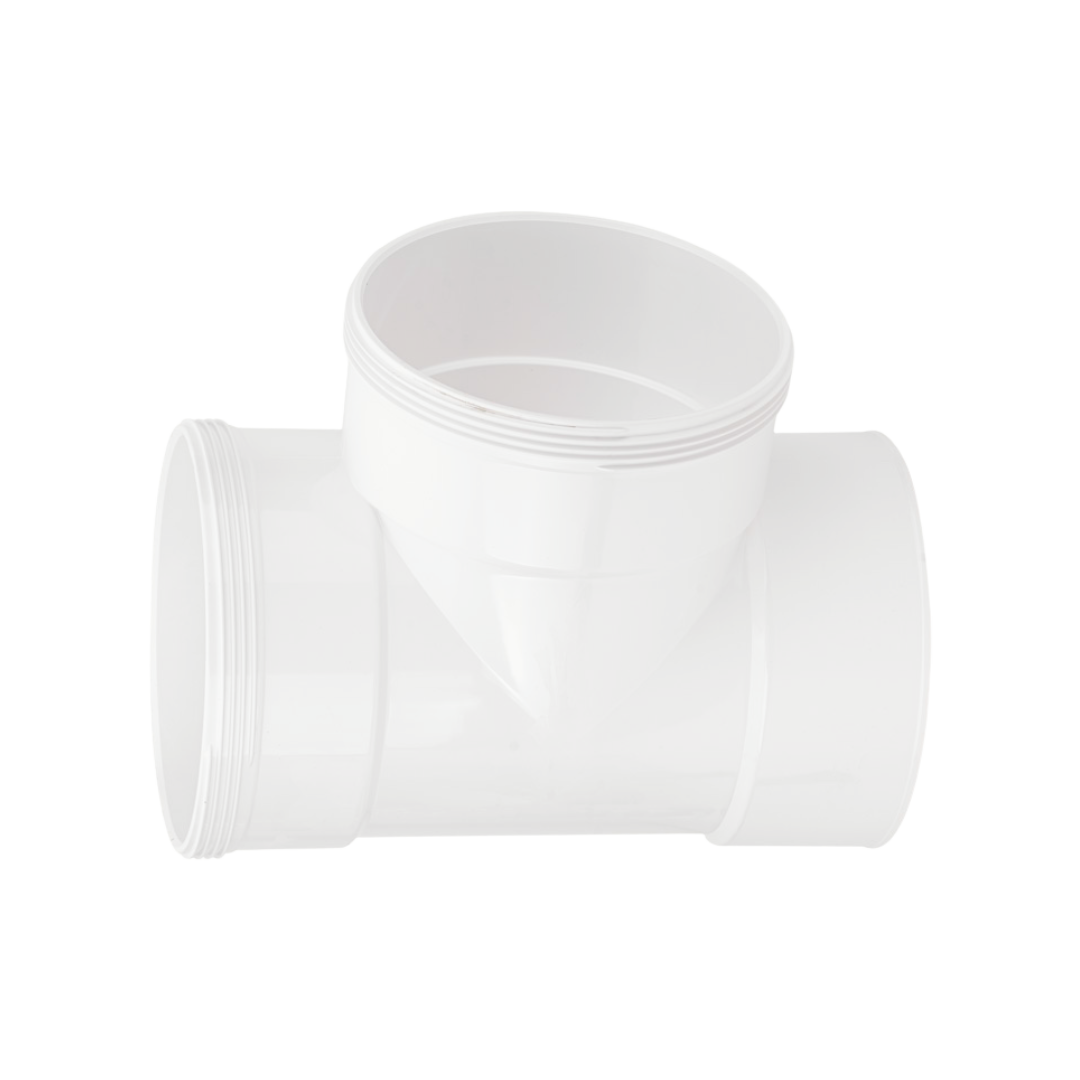

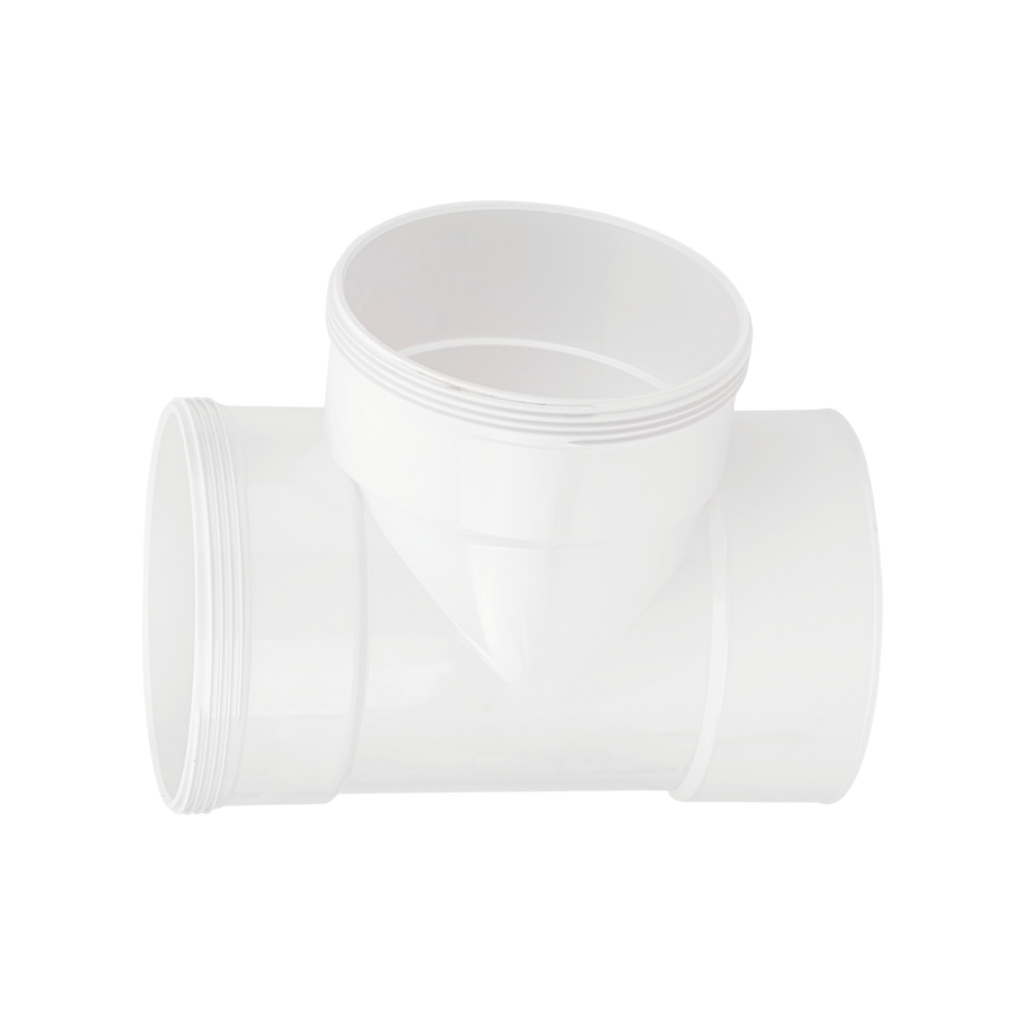

Stormwater 90° Junction – PVC-U

Stormwater 90° Junctions (Tee) are designed to create branch connections in stormwater pipe systems, allowing water to be diverted or joined efficiently. Manufactured from rigid PVC-U, these junctions are strong, durable, and corrosion-resistant, making them suitable for domestic, commercial, and civil stormwater drainage applications.

These junctions are compatible with standard PVC-U stormwater pipes and can be used for both above-ground and underground installations. Each fitting allows seamless integration into a gravity-fed stormwater system, ensuring proper water flow and drainage compliance.

Key Features

• Durable PVC-U Construction – Rigid, corrosion- and chemical-resistant for long-lasting performance.
• 90° Branch Connection – Creates a T-shaped junction for stormwater pipe networks.
• Multiple Sizes – Available in standard stormwater pipe diameters from 75mm to 375mm.
• Plain or Slotted Options – Some variants are compatible with slotted pipes for garden drainage.
• Solvent Cement Jointing – Uses SCJ system for strong, leak-proof connections.
• Above-Ground or Underground Use – Suitable for all stormwater installations.
• UV & Temperature Resistant – Can be exposed to sunlight; long-term exposure should be limited.
• Compliance – Manufactured to AS/NZS 1254 standards for stormwater systems.

Specifications

• Material: PVC-U (unplasticised PVC)
• Connection Type: Tee / 90° junction
• Pipe Compatibility: Standard stormwater pipes (75mm – 375mm)
• Angle: 90° (some fittings slightly less, 85–88°, to promote drainage)
• Installation: Solvent Cement Joint (allow 24-hour setting)
• Applications: Domestic and commercial stormwater systems, garden drainage, gutter connections

Variants (SKU – Size)

• PSW031 — 75mm 90° Tee
• PSW033 — 90mm 90° Tee
• PSW035 — 150mm 90° Tee
• PSW037 — 225mm 90° Plain Tee
• PSW039H — 300mm 88° Plain Tee
• PSW039J — 375mm 90° Plain Tee

Note: Pipes and fittings must be joined using solvent cement (SCJ) with a 24-hour setting period for full mechanical strength. Designed for stormwater (rainwater) systems only.
