Stormwater 22.5 Degree Bend FF

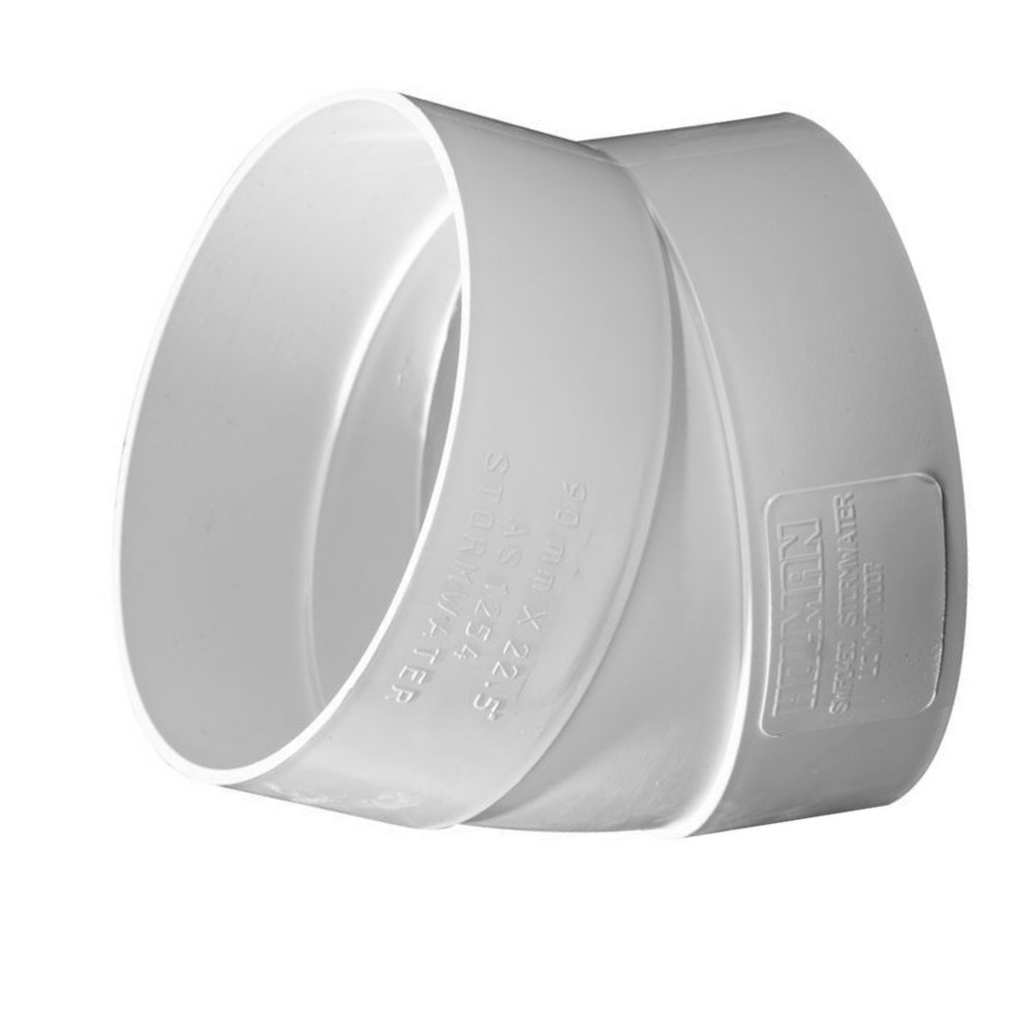

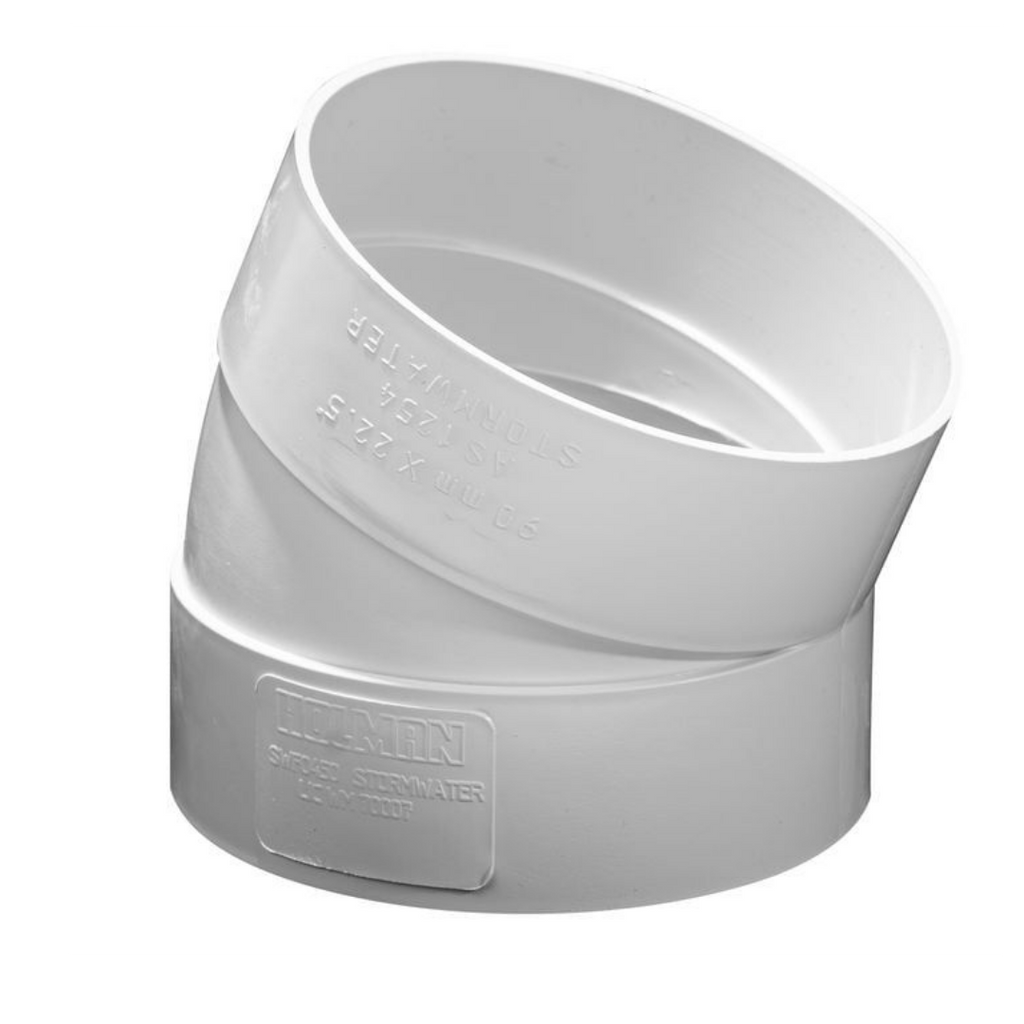

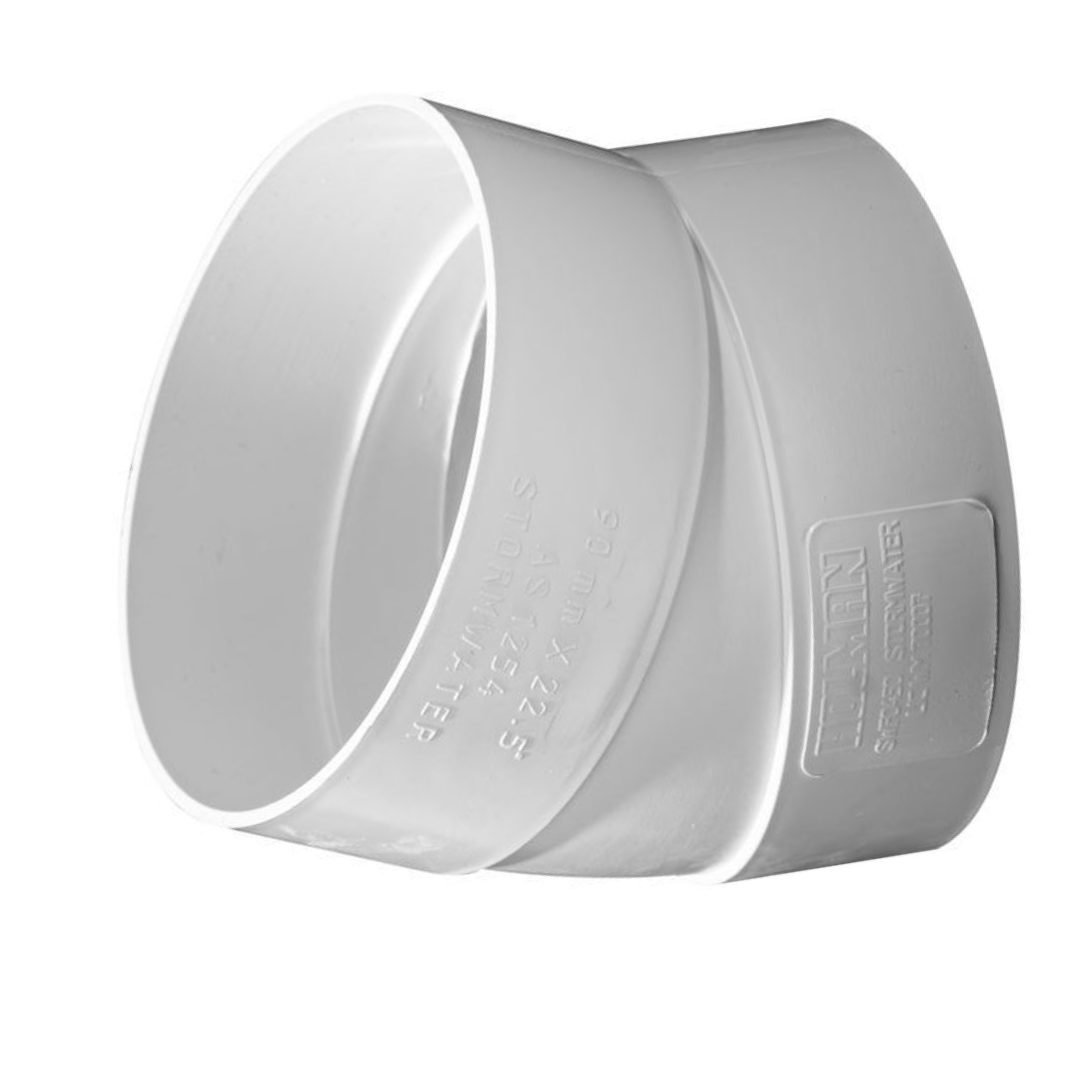

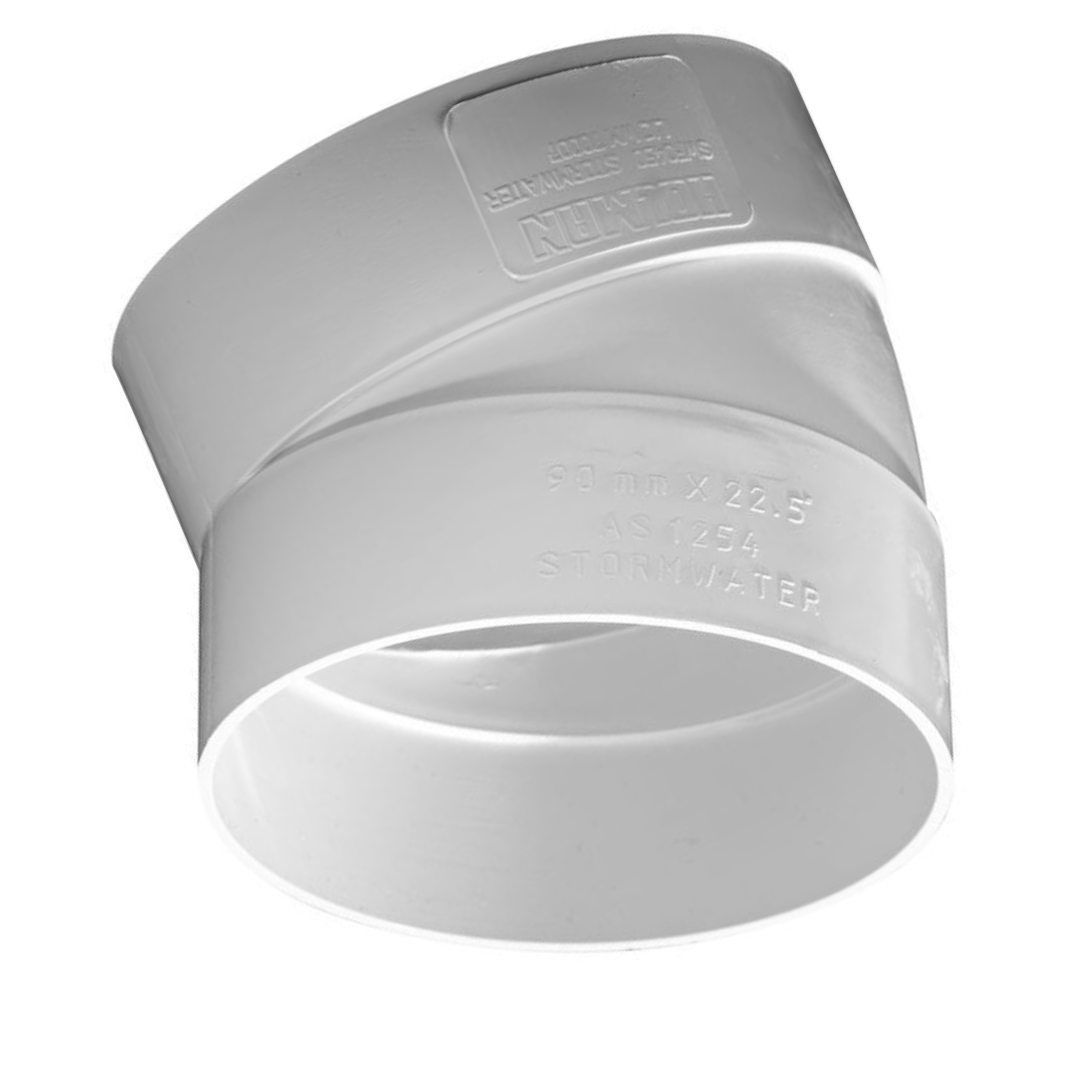

Stormwater 22.5° Bend FF – PVC-U

The Stormwater 22.5° Bend FF (Female-Female) is designed for precise directional changes in stormwater pipelines, allowing smooth water flow while minimizing turbulence and pressure loss. Both ends are female, enabling secure pipe insertion for reliable, leak-free connections.

Manufactured from rigid PVC-U, this fitting is ideal for domestic and commercial stormwater systems, including gutter and downpipe drainage.

Key Features

• Accurate 22.5° Angle – Ensures efficient water flow in stormwater systems.
• Durable PVC-U Material – Resistant to corrosion, chemicals, and biological growth.
• Female-Female (FF) Connection – Both ends accept pipes for easy installation.
• UV & Temperature Resistant – Suitable for above-ground and underground use (0–50°C).
• Smooth Internal Surface – Minimizes friction and reduces blockages.
• Compliant – Manufactured to AS/NZS 1254 standards.

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Female-Female (FF)
• Bend Angle: 22.5°
• Installation: Solvent Cement Joint (SCJ), allow 24 hours for full strength
• Applications: Stormwater drainage, gutter and downpipe connections
• Pipe Length Compatibility: Works with standard 6m PVC-U pipes

Variants (SKU – Size)

• PSW021 — 75mm 22.5° Bend FF
• PSW023 — 90mm 22.5° Bend FF
• PSW026 — 150mm 22.5° Bend FF
• PSW029 — 225mm 22.5° Bend FF

Note: For secure installation, join with solvent cement (SCJ) and allow 24 hours for full mechanical strength. Suitable for rainwater/stormwater systems only.
