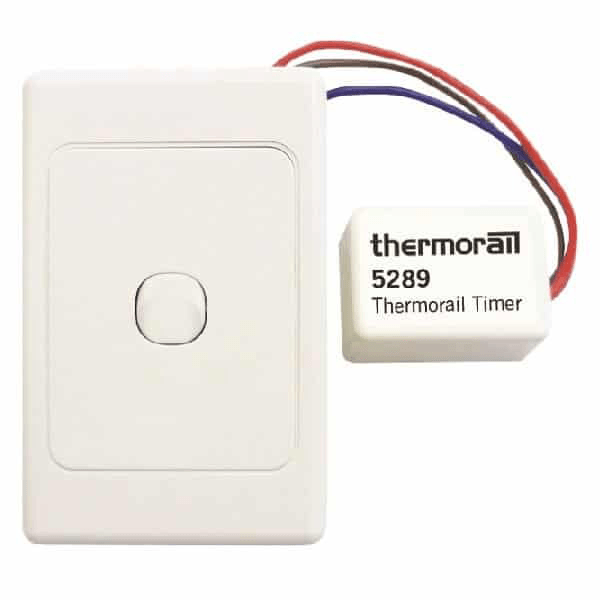

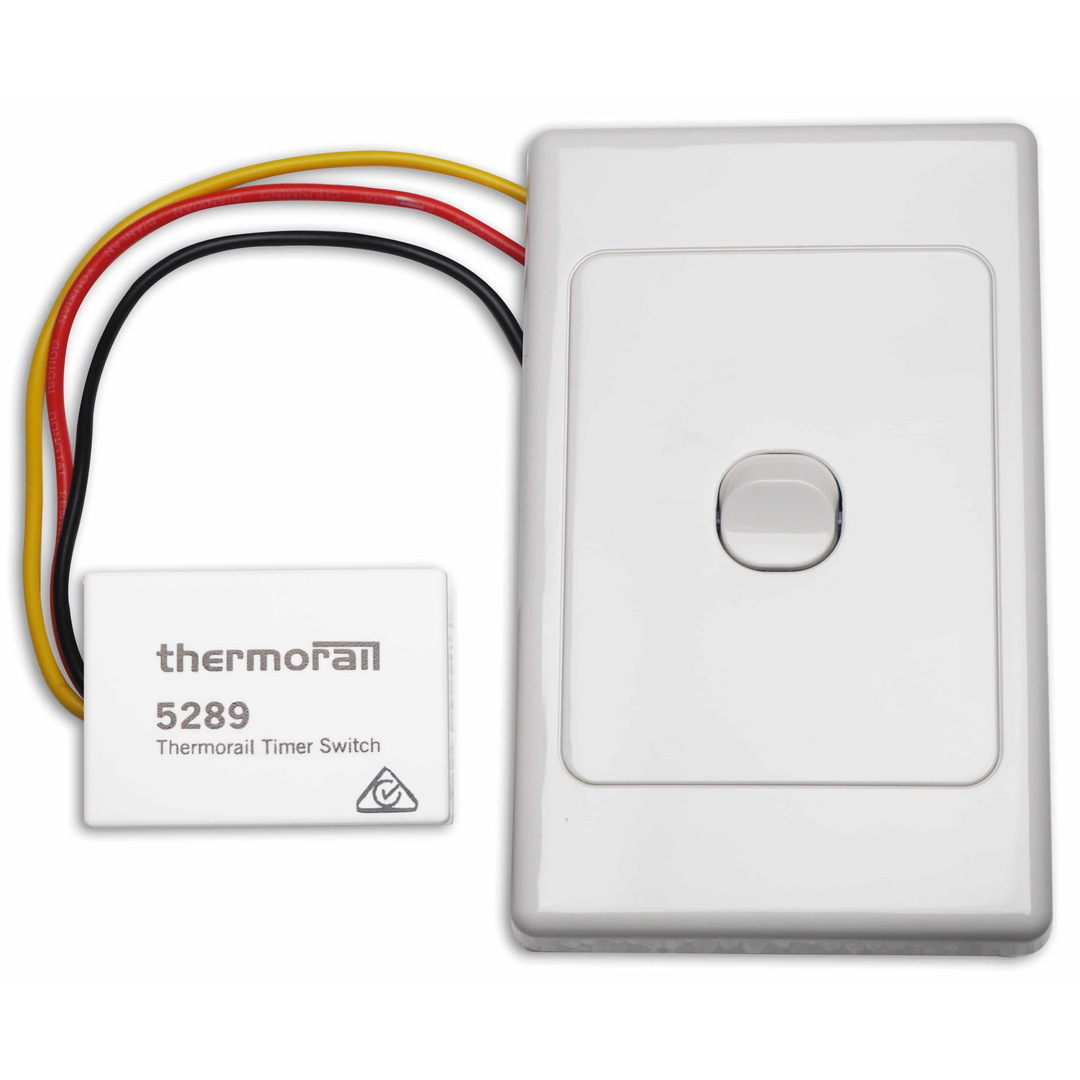

Thermorail Eco Timer - White

The Thermorail Eco Timer is an easy-to-use timing device designed to control your heated towel rails efficiently, giving you warm, dry towels when you need them while helping reduce energy costs. It fits neatly behind the supplied white switch plate, blending seamlessly into your bathroom decor.
This timer operates on a 12-hour schedule, switching your towel rail on twice daily—once in the morning and once in the evening—at the same set time each day. You can select a heating period between 1 to 11 hours and choose from three heat settings: 50%, 75%, or 100% power output. It’s a simple, cost-effective solution to automate your heated towel rail without the complexity of a fully programmable timer.

How It Works
To set the timer, turn it on and count the beeps (each beep equals one hour). For example, for 4 hours, wait for 4 beeps, switch it off, then back on to confirm the setting with another 4 beeps. The towel rail will then operate for that period twice daily at your chosen start time.

• Simple manual timer for easy scheduling of heated towel rails
• 12-hour cycle with two heating periods daily (morning and evening)
• Adjustable heating duration from 1 to 11 hours
• Three heat output settings: 50%, 75%, and 100%
• Sleek white switch plate included for clean installation
• Concealed hardwired wiring with center back positioning
• Energy efficient and cost-effective solution
• IP30 rated for safe bathroom use
• Backed by a 1-year warranty

Technical Specifications

• Voltage: 240V
• IP Rating: IP30
• Wiring Type: Concealed (hardwired)
• Wiring Position: Centre back
• Warranty: 1 year
