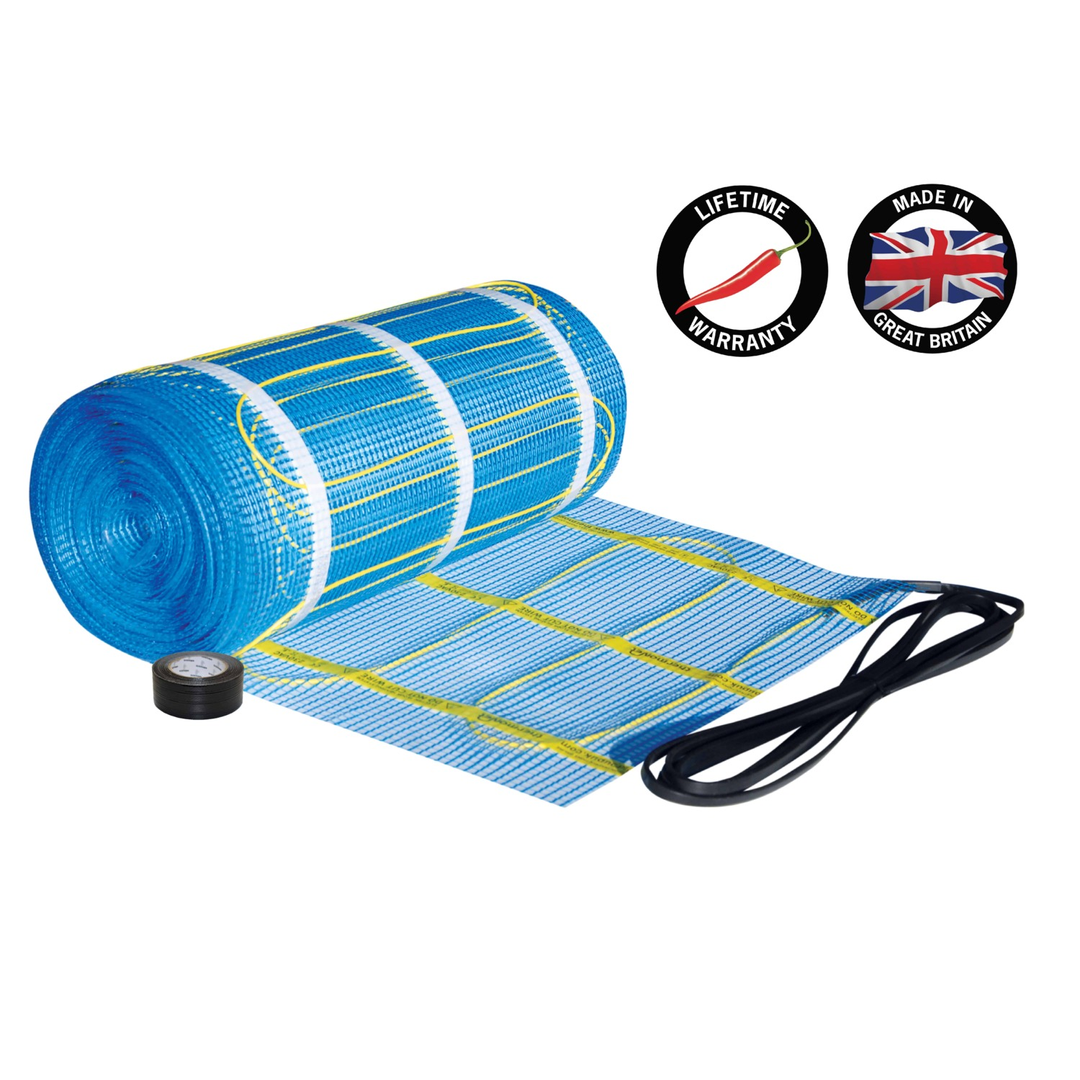

Thermogroup Thermonet 200W/M² Self Adhesive

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment. Thermonet is a versatile electric Underfloor Heating mat system designed for easy installation under a range of floor finishes. The Thermonet 200W/m² heating is an Underfloor Heating mat system that is specially designed to be installed underneath a screed, in the bathroom or in an area with high heat loss. The matting system allows for a quicker and easier installation and ensures even cable spacing and even heat spread across the floor.

In Screed Heating
Thermonet 200Watt mats are the ideal option for in screed applications providing easy installation and efficient storage heating in screed layers of 20-50mm.

In Screed heating will take longer to heat up, however the screed layer acts as a heat bank and holds the heat for longer, ensuring you don’t have added running costs. In Screed heating allows the tiler flexibility in creating falls in wet areas and can be installed under most floor coverings. It is recommended to insulate under floor heating to gain maximum performance from your system.

Technical Data
Width500mm
Heated width430mm
Max. thickness3.5mm
Max. temperature*28°C *
Protection RatingIP68
WarrantyLifetime
Voltage240Volt
Wattage200W/m²
Conductor TypeSinge Ended
Cold Tail Length5m
* Regulated by floor sensing thermostat

Includes: Thermonet 200W/m² Mat, Fixing Tape, Installation Guide & Warranty Form.
