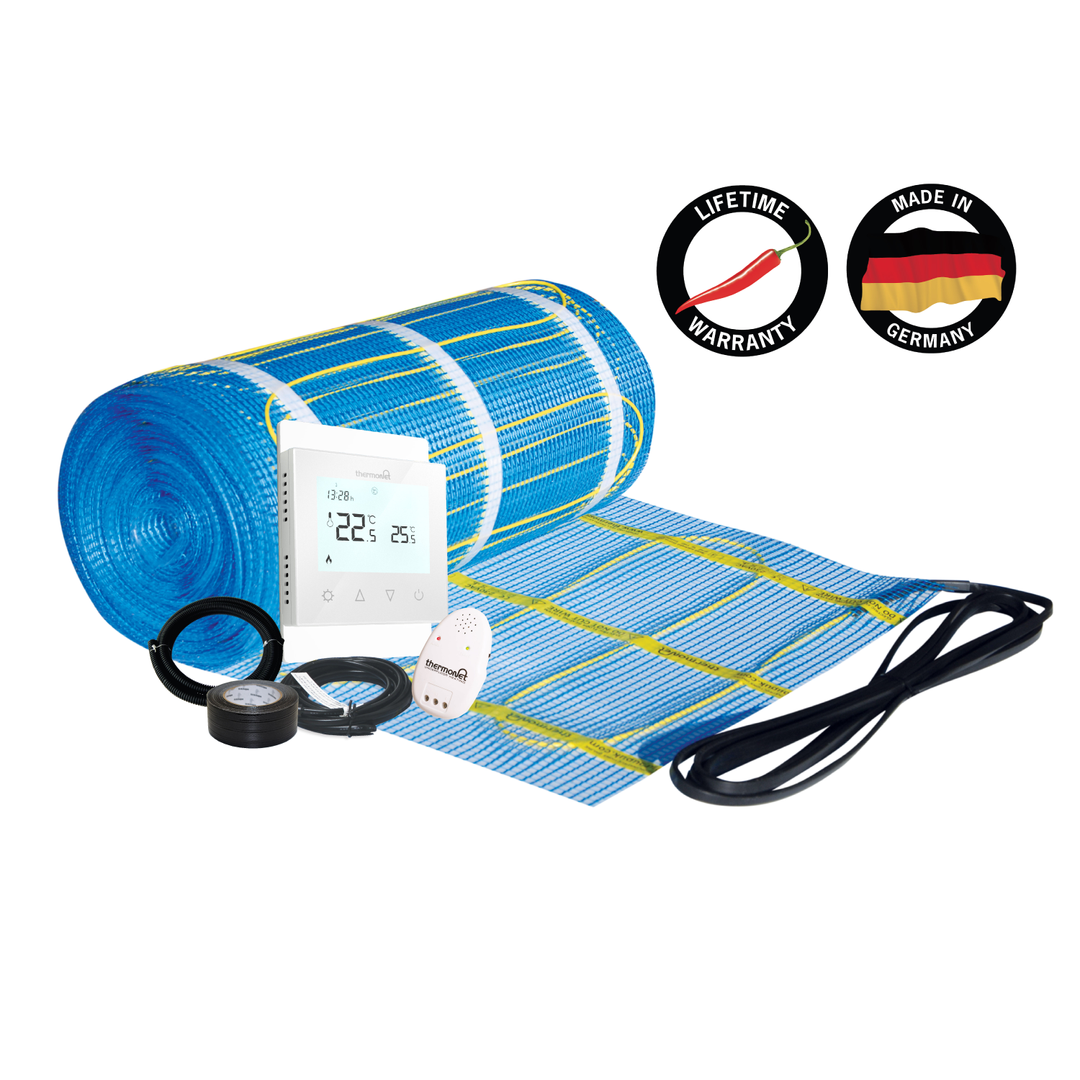

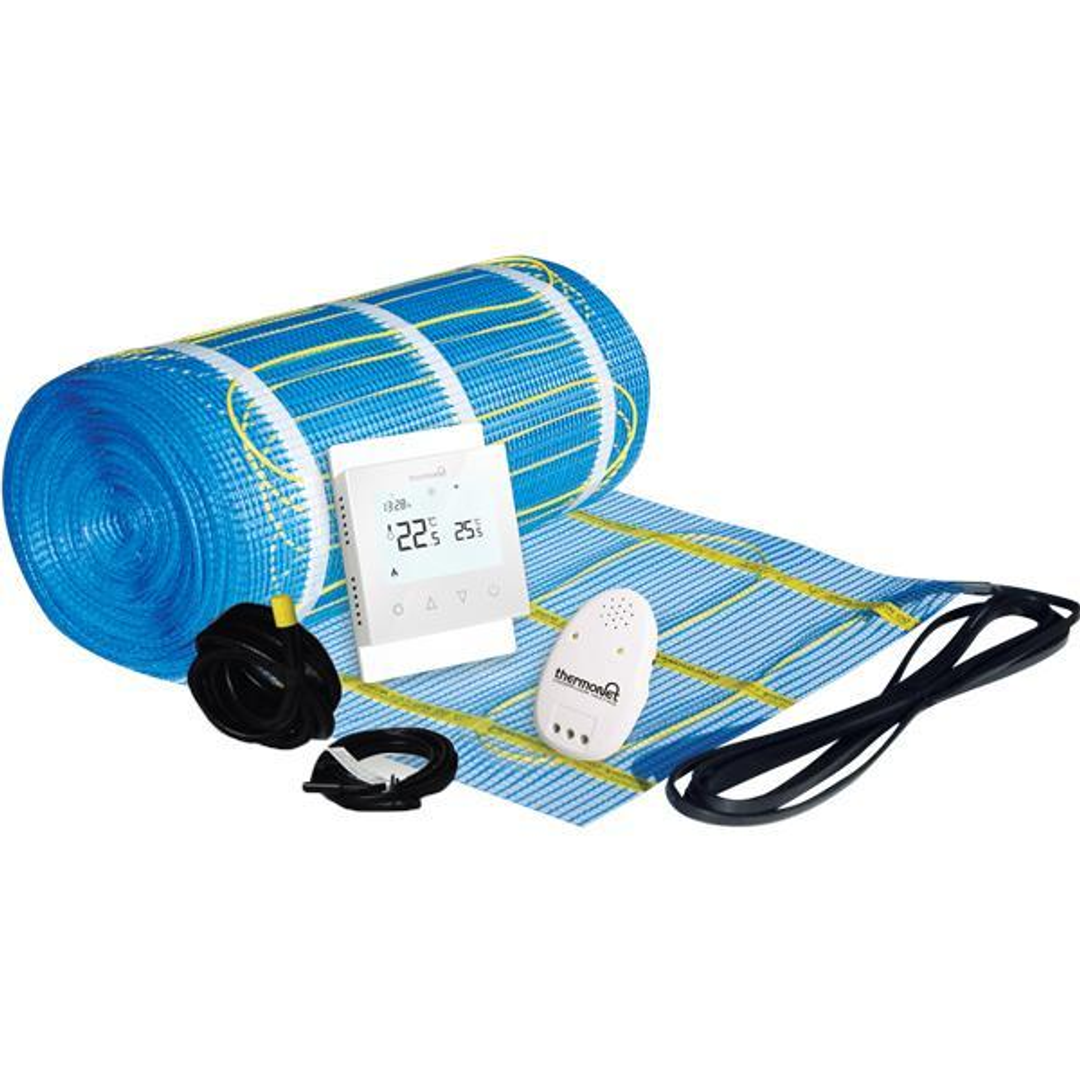

Thermonet EZ 150W/m² Self Adhesive Floor Heating Kit Including Thermos

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment.

Thermonet is a versatile electric Underfloor Heating mat system designed for easy installation under a range of floor finishes. The Thermonet 150W/m² heating is an Underfloor Heating mat system that is specially designed to be installed directly beneath your tiles in large areas. The Thermonet system can also be covered in a 10mm self-levelling compound and then a floating or glue down timber floor installed on top. The matting system allows for a quicker and easier installation and ensures even cable spacing and even heat spread across the floor.

The Thermonet T Kits include your chosen size of Thermonet heating cable, the Thermotouch 7.6iG programmable white 5220A thermostat, a cable monitor and a roll of cloth tape.

Full kit ready for installation
The Thermonet matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating.

Kit items include: Thermonet 150W/m² Mat, Programmable Thermostat (5220A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025) & Installation Guide & Warranty Form.

You won't see it, but you'll feel it
Thermonet features 3.5mm TwistedTwin cable, self-adhesive mesh and our low-profile cold tail connection cable. These features make up what we call LayFlat Technology because this combination neutralises tension in the finished product and makes Thermonet easier to fit.

Safe, simple and reliable
Thermonet underfloor heating cables have a tough fluoropolymer coating on the outside and internal conductors, a continuous armoured earth sheath and multi-strand twin conductors.

The conductors as twisted together to eliminate electromagnetic field (EMF) and neutralise the stress, expansion and contractions of the cable along the entire length; resulting in a more robust longer lasting cable.

Technical Data
Width500mm
Heated width430mm
Thickness3.5mm
Max. Temperature*28°C *
Protection RatingIP68
WarrantyLifetime on heating mat and 3 years on thermostat
Voltage240Volt
Wattage150W/m²
Conductor TypeSingle Ended
Cold Tail Length5m
* Regulated by floor sensing thermostat

Kit Includes: Thermonet 150W/m² Mat, Programmable Thermostat (5220A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025), Installation Guide & Warranty Form.
