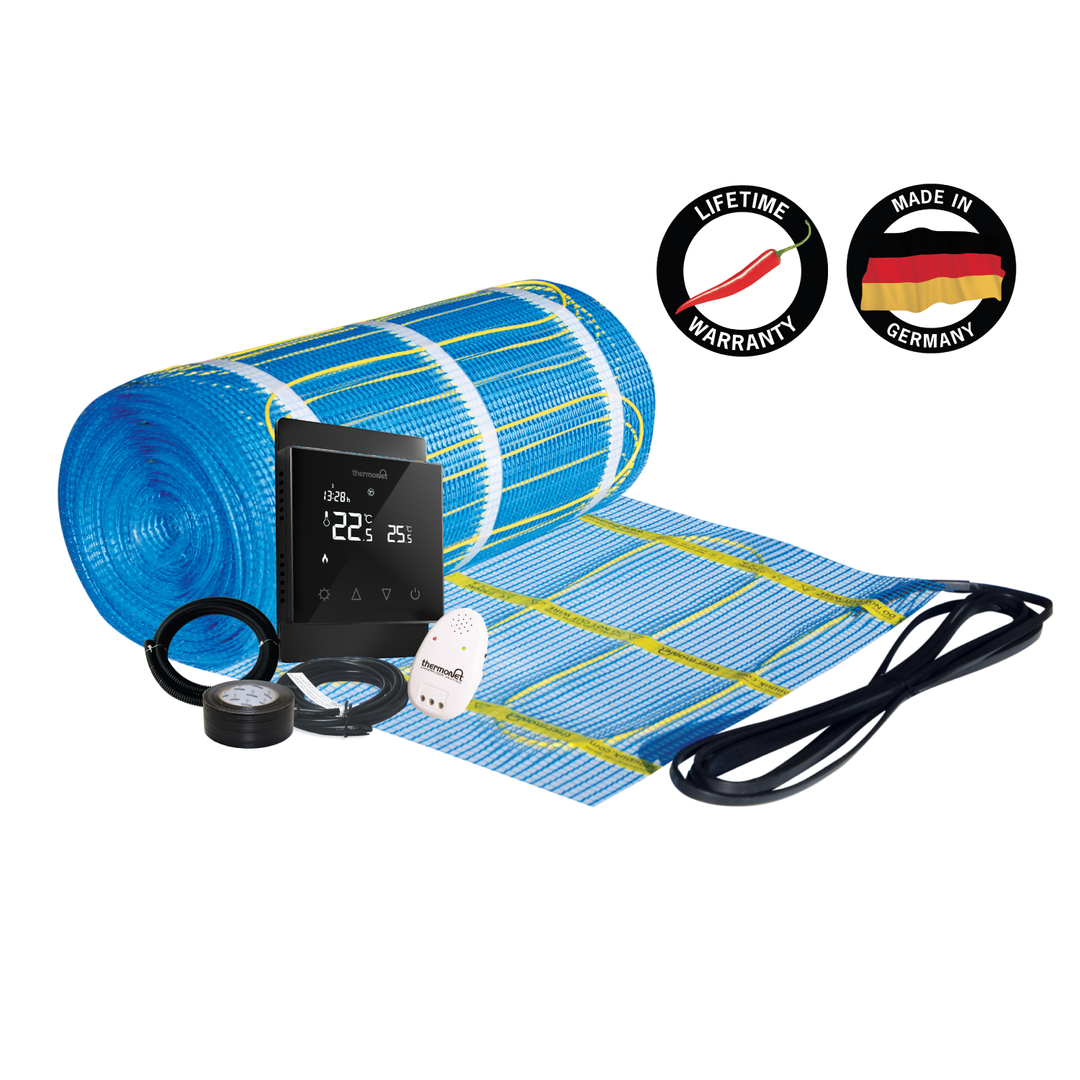

Thermonet EZ 200W/m² Self Adhesive Floor Heating Kit Including Black 5226A Thermostat

Thermonet 200Watt mats are the ideal option for in screed applications providing easy installation and efficient storage heating in screed layers of 20-50mm.

In Screed heating will take longer to heat up, however the screed layer acts as a heat bank and holds the heat for longer, ensuring you don’t have added running costs. In Screed heating allows the tiler flexibility in creating falls in wet areas and can be installed under most floor coverings. It is recommended to insulate under floor heating to gain maximum performance from your system.

In Screed Heating
Thermonet 200Watt mats are the ideal option for in screed applications providing easy installation and efficient storage heating in screed layers of 20-50mm.

Technic
Full kit ready for installation
The Thermonet 200W/m² matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating.

Kit items include:  Thermonet 200W/m² Mat, Programmable Thermostat (5226A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025) & Installation Guide & Warranty Form.al Data
Width500mm
Heated width430mm
Max. thickness3.5mm
Max. temperature*28°C *
Protection RatingIP68
WarrantyLifetime on heating mat and 3 years on thermostat
Voltage240Volt
Wattage200W/m²
Conductor TypeSinge Ended
Cold Tail Length5m
*Regulated by floor sensing thermostat

Kit Includes: Thermonet 200W/m² Mat, Programmable Thermostat (5226A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025), Installation Guide & Warranty Form.
