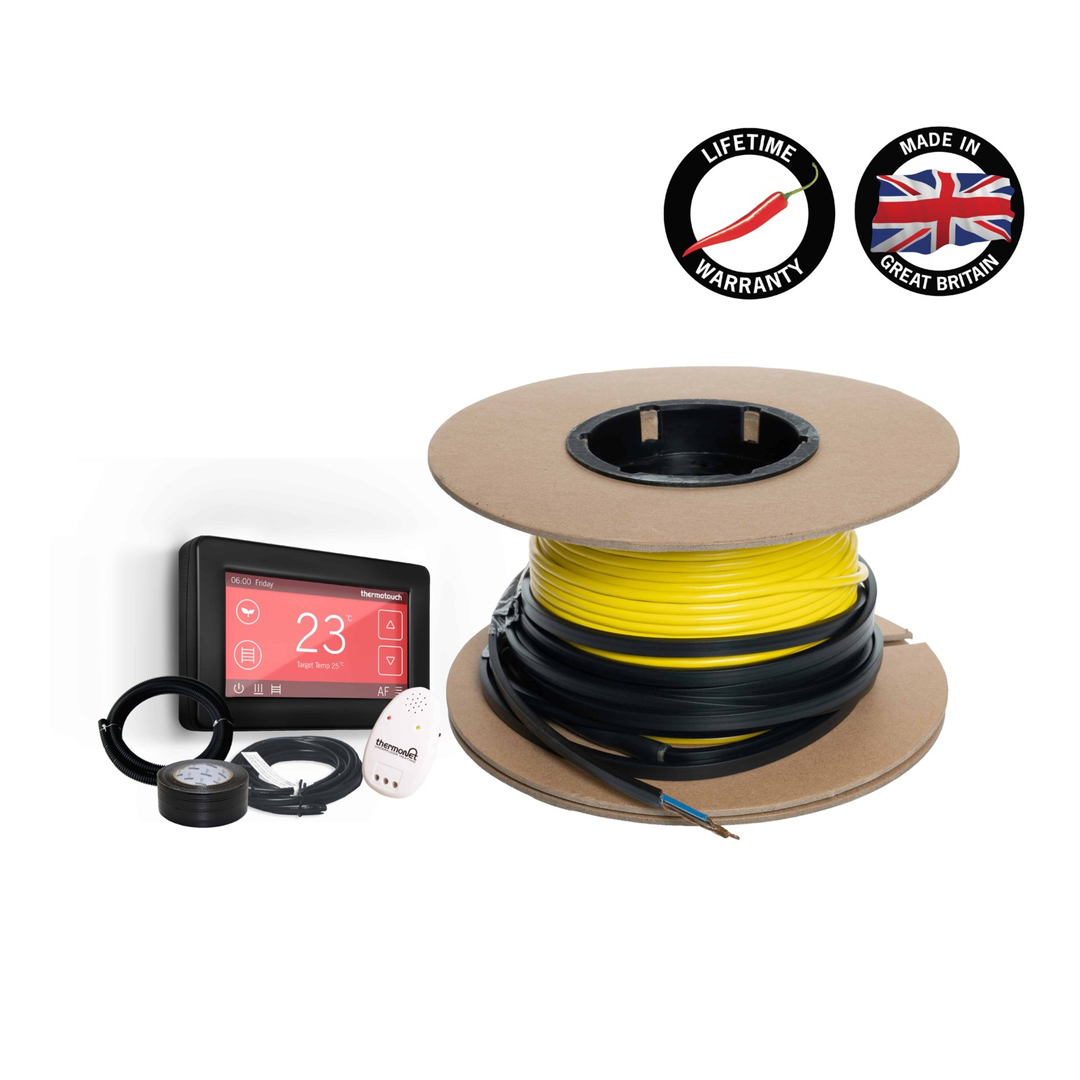

Thermoscreed Screed Heating Kit & Black 5246 Dual Thermostat

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment. Thermoscreed is a loose wire heating cable that is designed for use below your screed layer providing a suitable heat performance through a screed layer. Thermoscreed cable is typically used in a bathroom area and is designed to be installed below a screed layer of 20-50mm. The loose wire system makes the Thermoscreed cable suited to small, awkward shaped areas or rooms with a lot of floor mounted fixtures that need to be avoided. The Thermoscreed TDB Kts include your chosen size of Thermoscreed heating cable, the Thermotouch 4.3dC black dual control 5246 thermostat, a cable monitor and a roll of cloth tape.

In Screed Heating

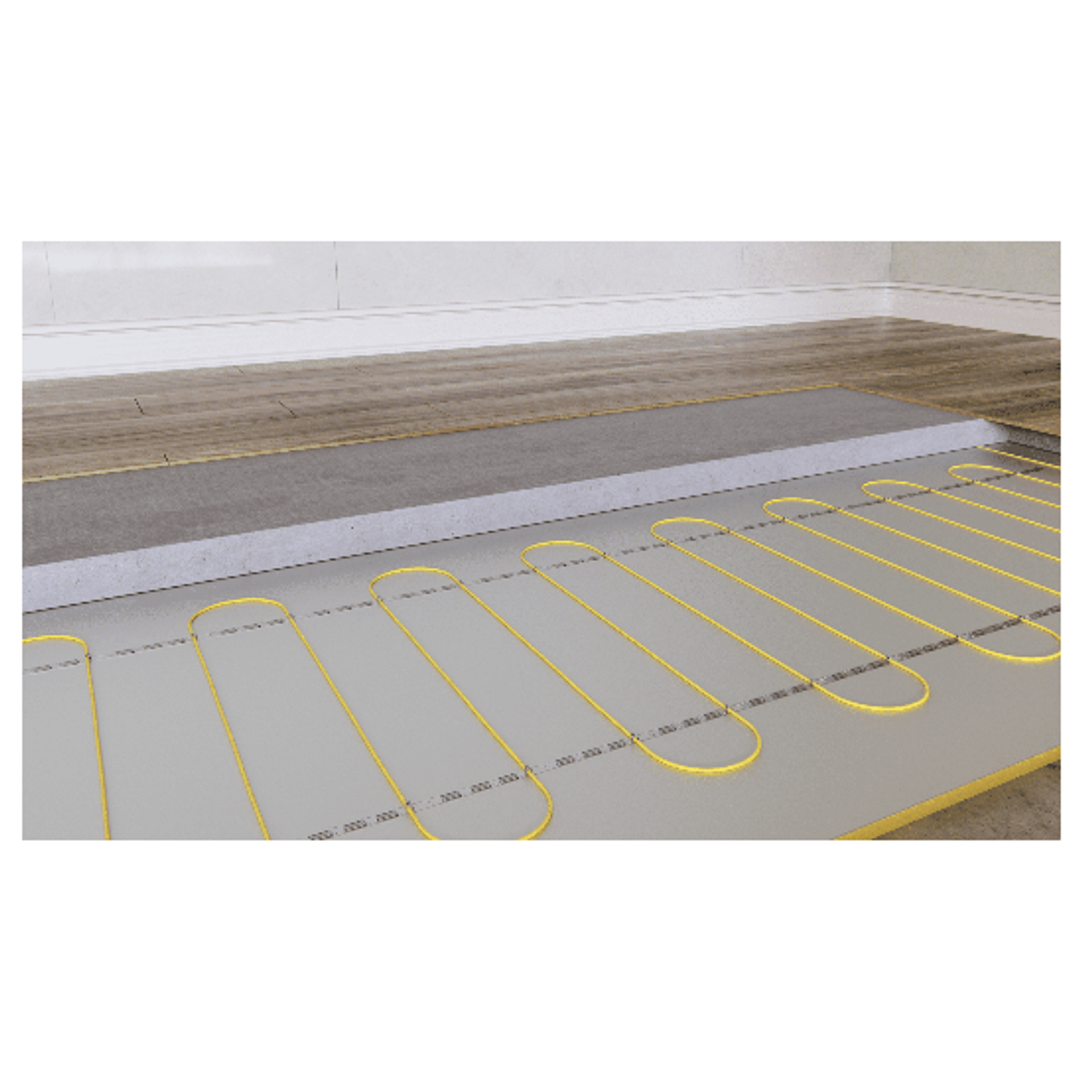

Thermoscreed is ideal for new build projects where height build-up is not limited. Designed for use in 20 – 50mm screed layers. In Screed heating systems allow the floor layer to prepare a perfectly flat floor to lay the floor covering over. Thermoscreed is suitable for almost any flooring finish including wood, carpet, and vinyl.

Thermoscreed is a versatile heating cable designed for installation in the screed layer of new builds or renovation projects. It creates an energy-efficient heating system by warming the screed to create a slow-release thermal mass. Suitable for use with sand and cement, anhydrite, and flow screeds.

Full kit ready for installation
The Thermoscreed matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating. Please note: The cloth tape is the standard fixing method and is included in the kits however alternate fixing methods are available.

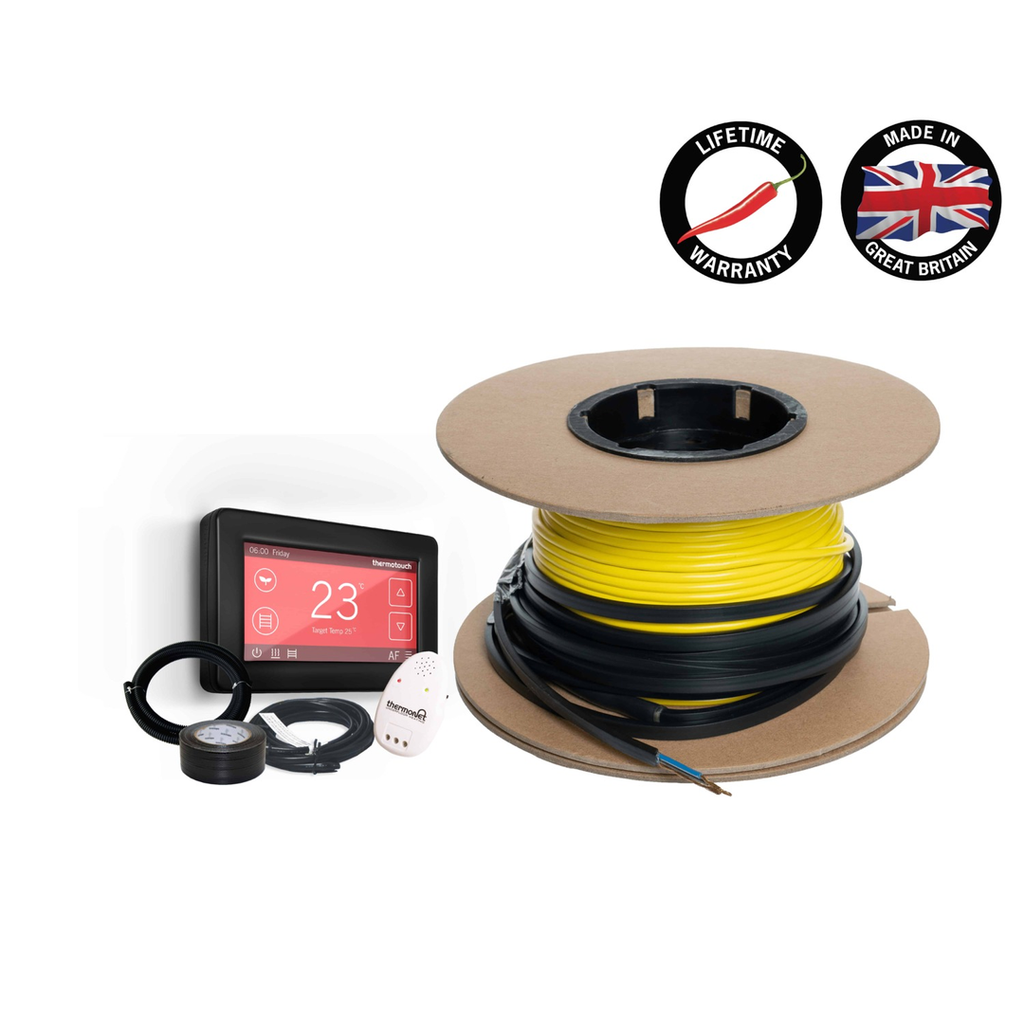

Kit items include: Thermoscreed Cable, Cloth tape, Black Dual Thermostat (5246), Floor Temperature Sensor, Sensor Conduit, Cable Monitor(6025), Installation Guide & Warranty Form.

Technical Data
Cable Thickness5.5mm
Max. Temperature28°C *
Protection RatingIP67
WarrantyLifetime on heating cable and 3 yrs on the Thermostat
Voltage240Volt
Wattage18W/lm
Conductor TypeSingle Ended
Cold Tail Length3m
* Regulated by floor sensing thermostat

Kit Includes: Thermoscreed Cable, Fixing Tape, Black Dual Thermostat (5246), Floor Temperature Sensor, Sensor Conduit, Cable Monitor (6025), Installation Guide & Warranty Form.
