Thermowire Undertile Heating Cable Kit & Black 5226A Thermostat

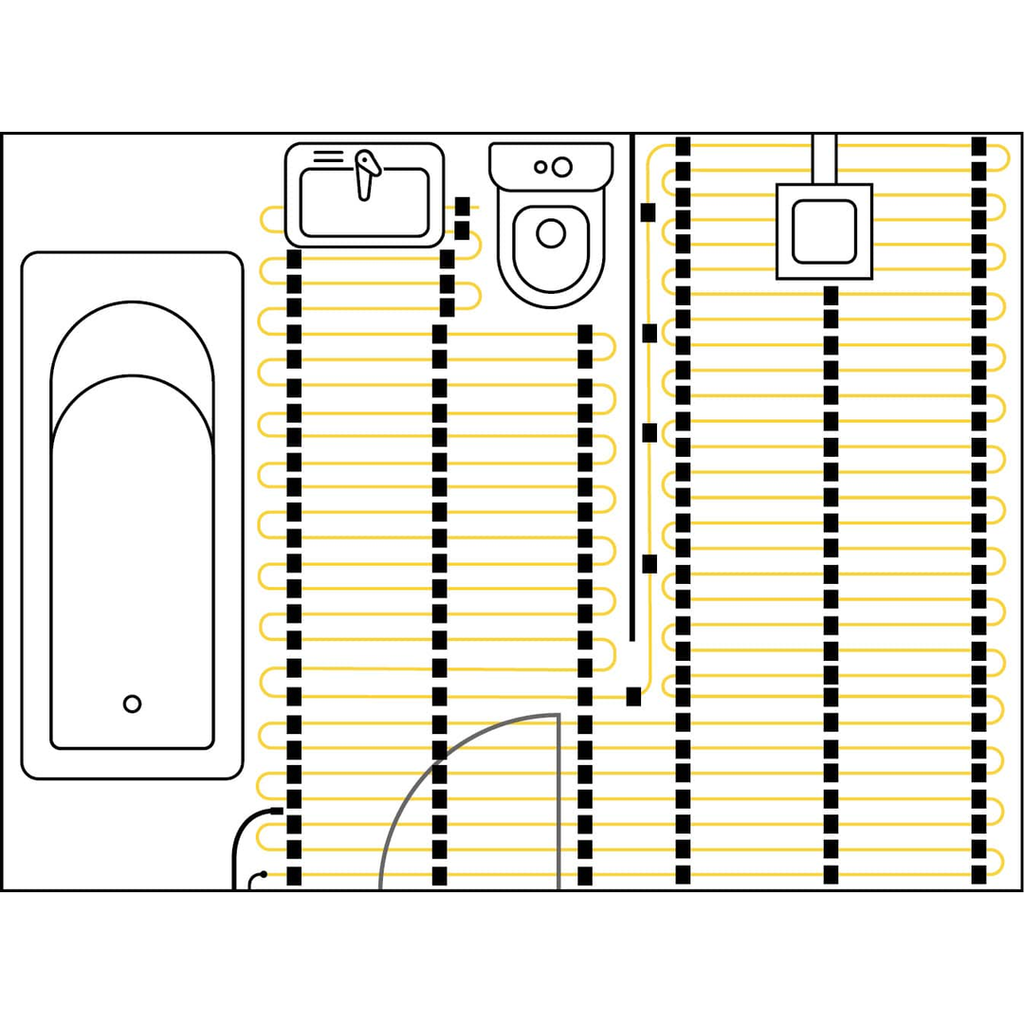

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment. Thermowire is the traditional method of installing Underfloor Heating directly below your tiles utilising a loose wire system. The thin profile of the Thermowire cable means that it can be installed in the layer of tile glue therefore not adding any additional height to your floor build-up. The loose wire system makes the Thermowire cable suited to small, awkward shaped areas or rooms with a lot of floor mounted fixtures that need to be avoided. The Thermowire TB Kts include your chosen size of Thermowire heating cable, the Thermotouch 7.6iG programmable black 5226A thermostat, a cable monitor and a roll of cloth tape.

Undertile heating

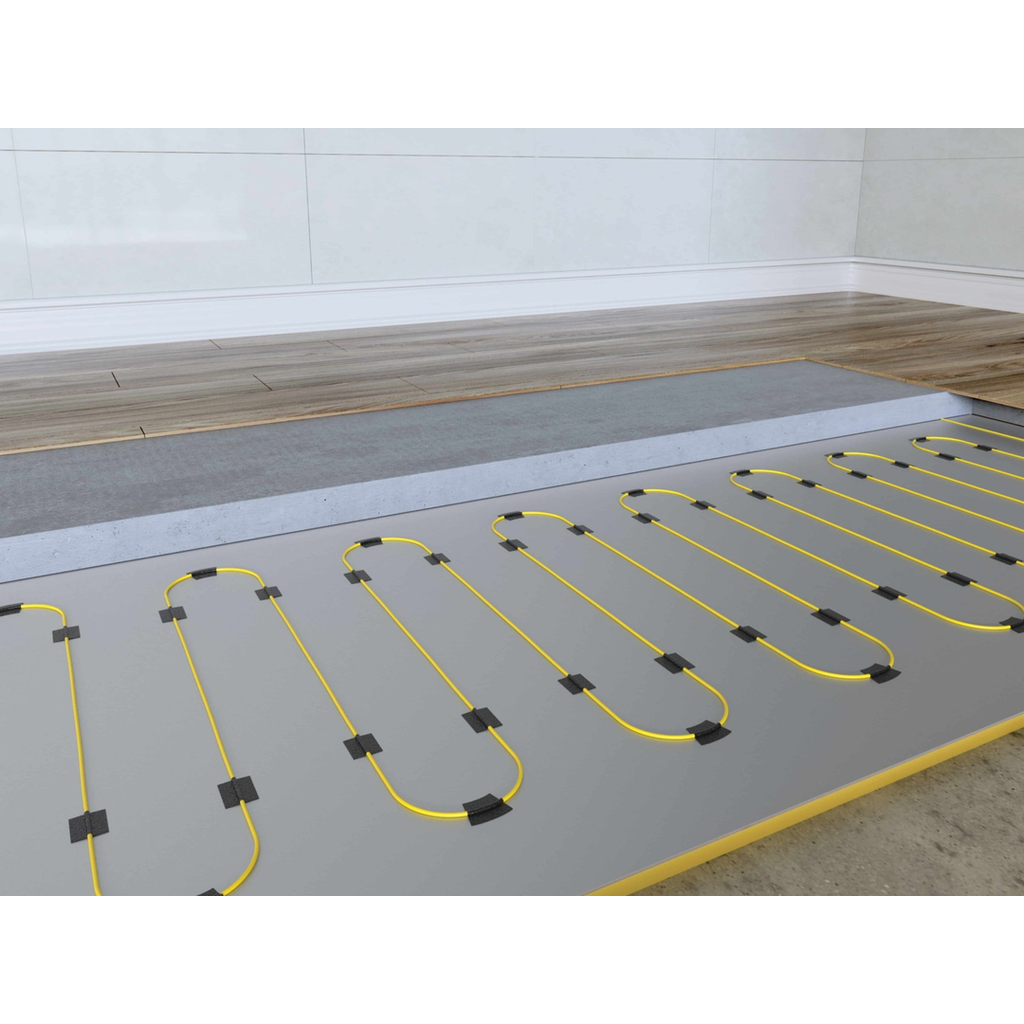

The thin profile of Thermowire means that it can be installed in the layer of tile glue therefore not adding any additional height to your floor build up. It can also be covered with a layer of self-levelling compound to allow it to be used in conjunction with other floor finishes.

Rapid heat up time

With the Thermowire cable installed directly below the tiles you will experience rapid warmth to your floors. We recommend installing with an output of 150w/m² when undertile in areas outside the bathroom and 200w/m² for the bathroom.

Technical Data
Thickness3.5mm
Max Temperature28°C *
Protection RatingIP68
WarrantyLifetime Warranty
Conductor TypeSingled Ended
Cold tail length5m
* Regulated by floor sensing thermostat

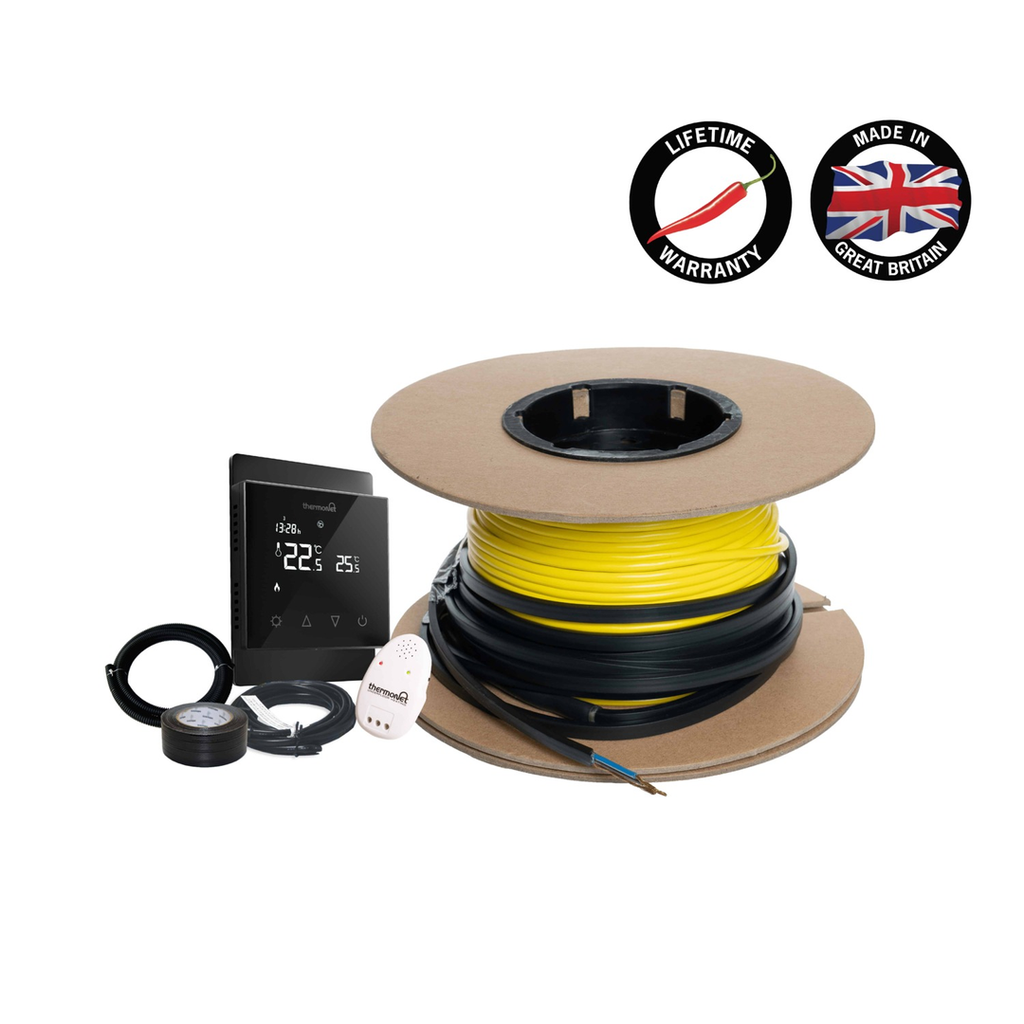

Kit Includes: Thermowire Cable, Fixing Tape, Programmable Thermostat (5226A), Floor Temperature Sensor, Sensor Conduit, Cable Monitor (6025), Installation Guide & Warranty Form.
