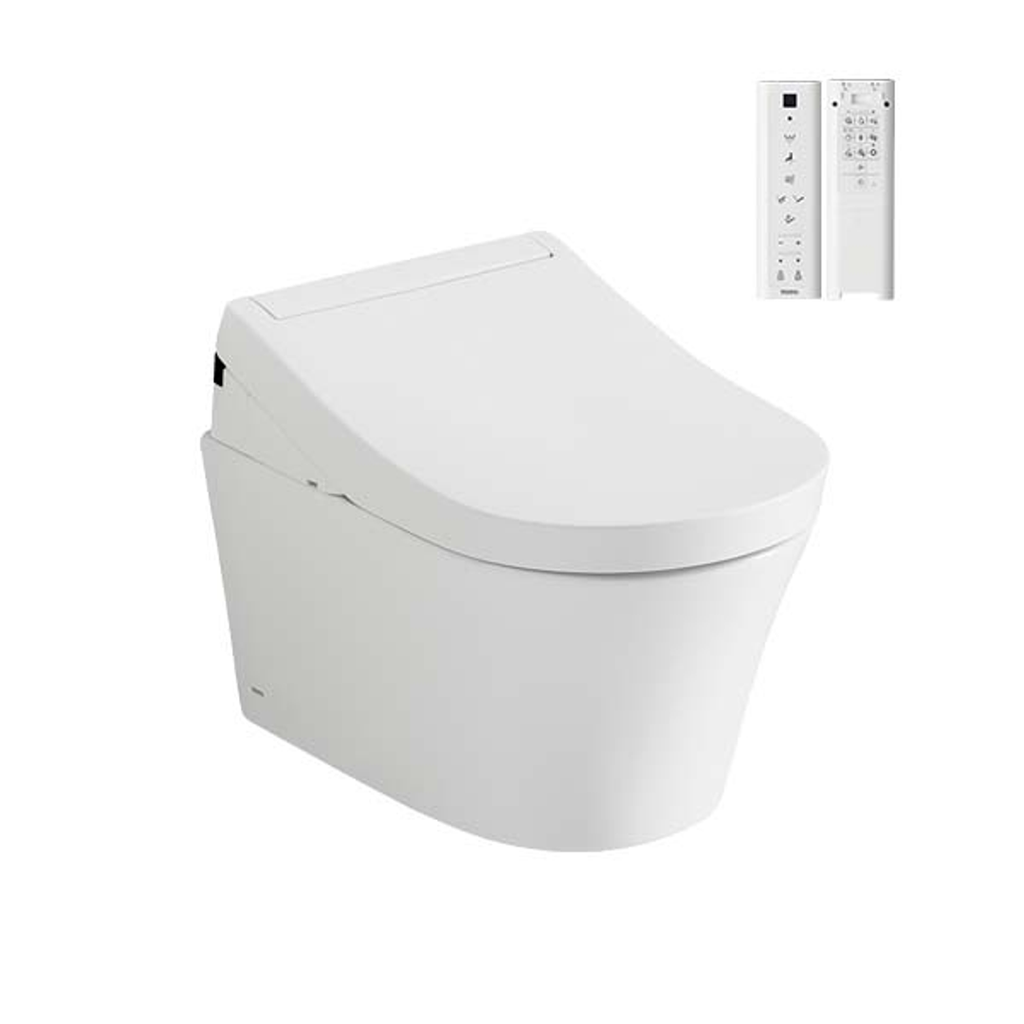

TOTO Wall Hung Toilet Pan (D-shape/CCT)

TOTO Wall Hung Toilet Pan (D-Shape/Cct)

Upgrade your bathroom with the TOTO CW553EAT Wall Hung Toilet Pan, combining sleek modern design with advanced hygiene and comfort features. This D-shaped pan is designed for effortless cleaning and long-lasting performance, making it ideal for contemporary bathrooms.

The RIMLESS DESIGN bowl ensures superior hygiene by eliminating hidden crevices, while CEFIONTECT glazing creates a super-smooth, anti-bacterial surface that prevents waste and grime buildup. The TORNADO FLUSH system delivers a powerful, water-efficient flush (4.5L / 3L), conserving water without compromising performance.

When paired with the TOTO S5 Washlet (D-shape), you can enjoy premium features including EWATER+, PREMIST, a heated seat with temperature control, pulsating and oscillating cleansing functions, and an automatic deodorizer. The soft-closing seat and cover add an extra layer of comfort and safety.

Please note: This product includes the toilet pan only.

Extra items required for installation:

• TOTO S5 Washlet (D-Shape/CCT) with Remote Control – Model: TCF34470GAU#NW1

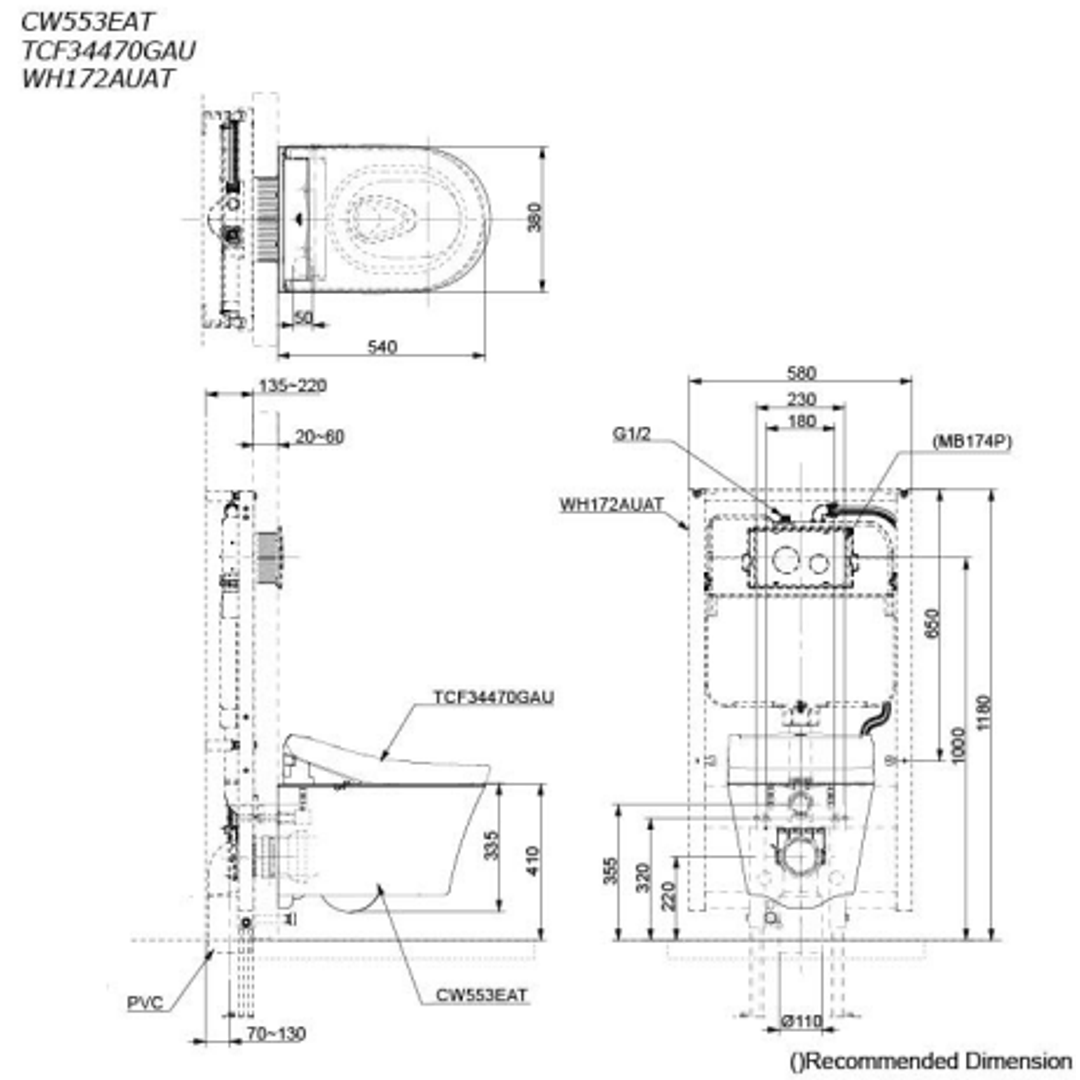

Specifications

• Model: CW553EAT
• Type: Wall Hung Toilet Pan (D-Shape/CCT)
• Flush System: TORNADO FLUSH
• Water Use: 4.5L / 3L (Dual Flush)
• Rough-in: H = 220 mm
• Water Pressure: 0.05MPa – 0.75MPa
• Pan Size: 380W x 580D x 335H mm
• Washlet Power Rating: 220–240V, 50/60Hz, 826–837W
• Washlet Size: 383W x 540D x 130H mm

Key Features

• RIMLESS bowl for effortless cleaning
• CEFIONTECT glaze prevents waste and bacteria buildup
• TORNADO FLUSH for powerful and efficient flushing
• EWATER+ self-cleaning nozzle
• PREMIST coating reduces dirt adhesion
• Heated seat with pulsating and oscillating cleansing functions
• Automatic deodorizer for added hygiene
• Soft-closing seat and cover
