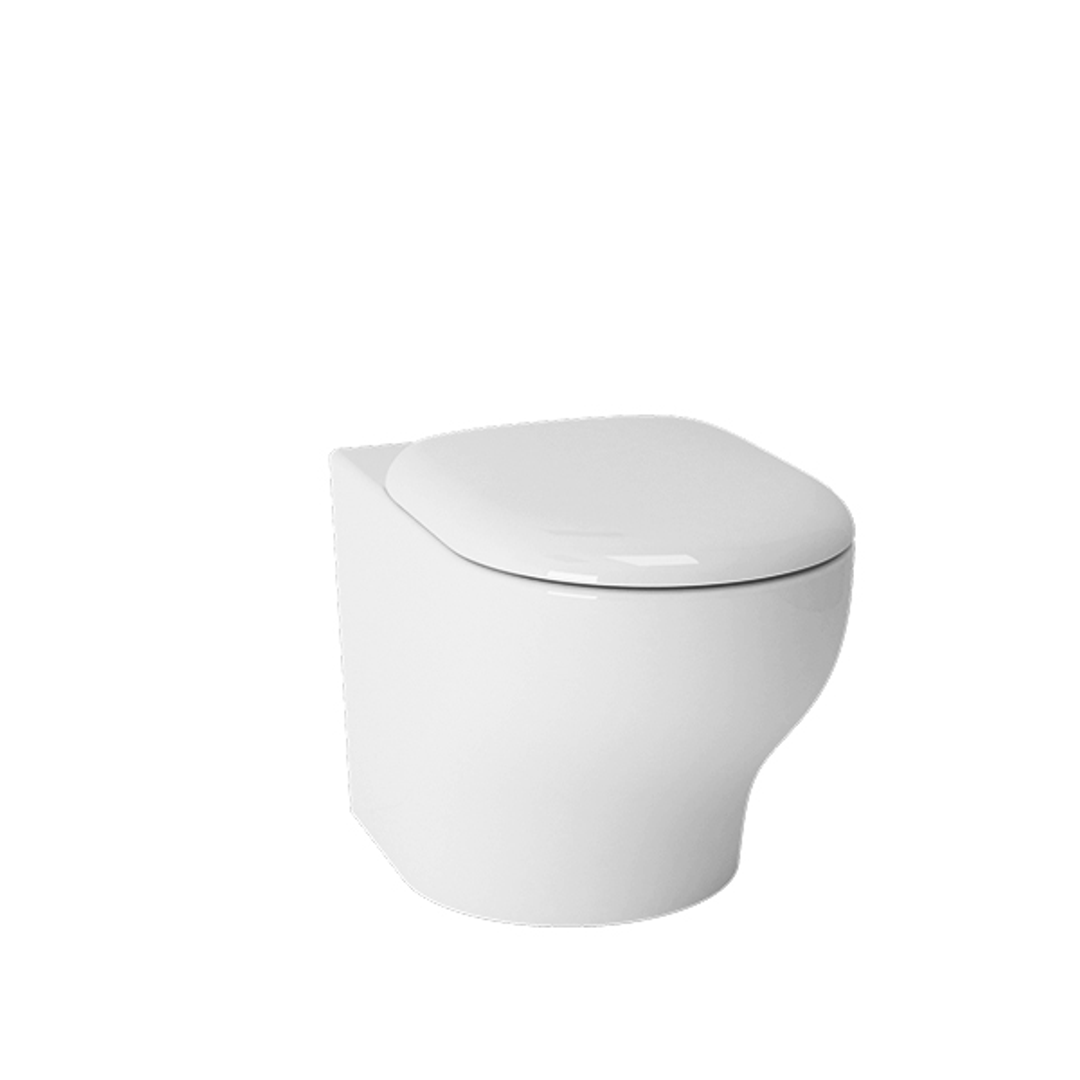

TOTO Hayon Wall Faced Toilet

TOTO Hayon Wall Faced Toilet

The TOTO Hayon Wall Faced Toilet (CW254PJT1WS) brings together minimalist style, advanced hygiene, and superior functionality—perfect for modern bathroom designs. Its wall-faced construction with a concealed trapway delivers a clean, streamlined look while making cleaning quick and effortless.

Equipped with TOTO’s innovative TORNADO FLUSH system, this toilet provides a powerful, efficient flush that uses minimal water. The RIMLESS bowl enhances hygiene by eliminating hidden crevices where bacteria can accumulate, and TOTO’s CEFIONTECT glaze creates a super-smooth, ion-barrier surface that prevents debris buildup. With a dual flush system (4.5L / 3L), the Hayon Wall Faced Toilet offers exceptional water efficiency without compromising performance.

Please note: This product includes the toilet pan only.

To complete installation, the following items are required:

• Seat and Cover – Model: TTC252SJ

• S-Connector – Model: THX918

Specifications

• Flush System: TORNADO FLUSH
• Water Use: 4.5L / 3L (Dual Flush)
• Bowl Shape: D-Shape

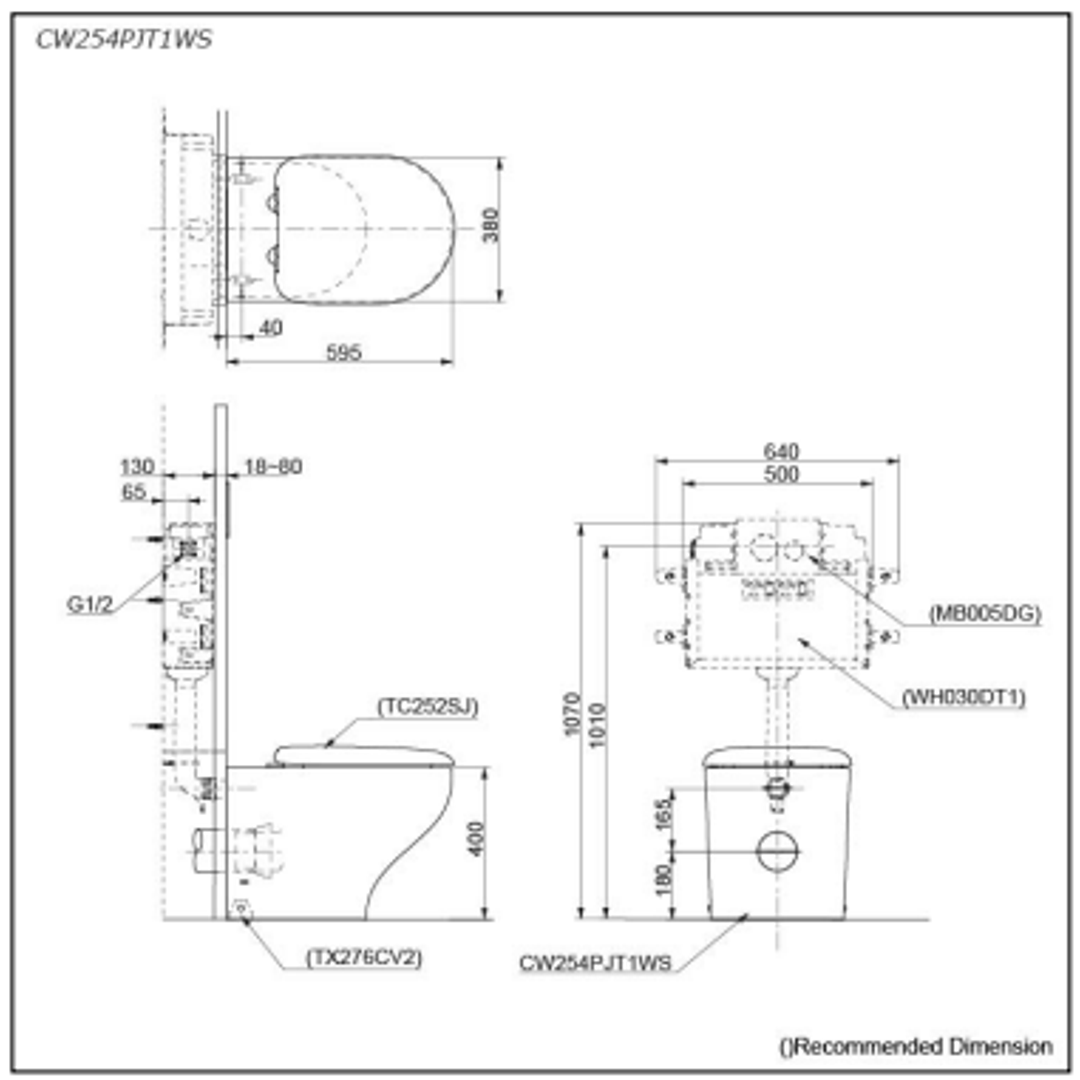

• Rough-in: 140–220 mm (S-Trap, THX918)
• Water Pressure: 0.05–0.75 MPa
• Size: 396W x 690D x 839H mm

Key Features

• Sleek wall-faced design with concealed trapway
• TORNADO FLUSH for powerful, water-efficient performance
• RIMLESS bowl for maximum hygiene
• CEFIONTECT glaze for a smooth, easy-to-clean surface
• Dual flush system: 4.5L / 3L
• Eco-friendly, water-saving operation

Upgrade your bathroom with the TOTO Hayon Wall Faced Toilet, where elegant design meets advanced Japanese flushing technology for lasting performance and hygiene.
