TOTO Rw/Rx Wall Hung Pan (D-Shape)

TOTO Rw/Rx Wall Hung Pan (D-Shape)

Experience the perfect harmony of innovation, hygiene, and comfort with the TOTO Wall Faced Toilet, designed for modern Australian bathrooms that value both aesthetics and advanced functionality.

Powered by TOTO’s cutting-edge technology, this toilet delivers outstanding performance while maintaining a sleek, compact design that suits any contemporary space.

The TORNADO FLUSH system provides powerful, water-efficient flushing, while the RIMLESS DESIGN ensures every surface is easy to clean and free from hidden germs. The bowl is finished with CEFIONTECT Technology, a super-smooth, ion-barrier glaze that prevents waste and bacteria from adhering, keeping your toilet cleaner for longer.

For an enhanced experience, pair this toilet with the TOTO RW Washlet, featuring EWATER+, PREMIST, and a heated seat for total comfort and hygiene.

Please note: This product includes the toilet pan only.

To complete installation, the following items are required:

• RW Washlet (D-Shape) – Model: TCF802C2AT#NW1

• TOTO Inwall Cistern with Frame (Auto Flush) – Model: WH172AUAT

• TOTO Flush Panel – Stainless Steel – Model: MB171M#SS

Key Features

• CEFIONTECT Technology: Super-smooth, ion-barrier glazing keeps the bowl cleaner for longer
• TORNADO FLUSH: Powerful, water-saving flush system
• RIMLESS DESIGN: Easy to clean with maximum hygiene
• EWATER+: Self-cleaning nozzle with antibacterial properties
• PREMIST: Fine mist coating reduces dirt adhesion
• Heated Seat: Adjustable temperature control for year-round comfort
• Soft-Closing Seat and Cover: Gentle and quiet operation
• Cleansing Options: Rear, front, oscillating, and pulsating spray functions

Specifications

BOWL:

• Flush System: TORNADO FLUSH
• Water Use: 4.5L / 3L (Dual Flush)

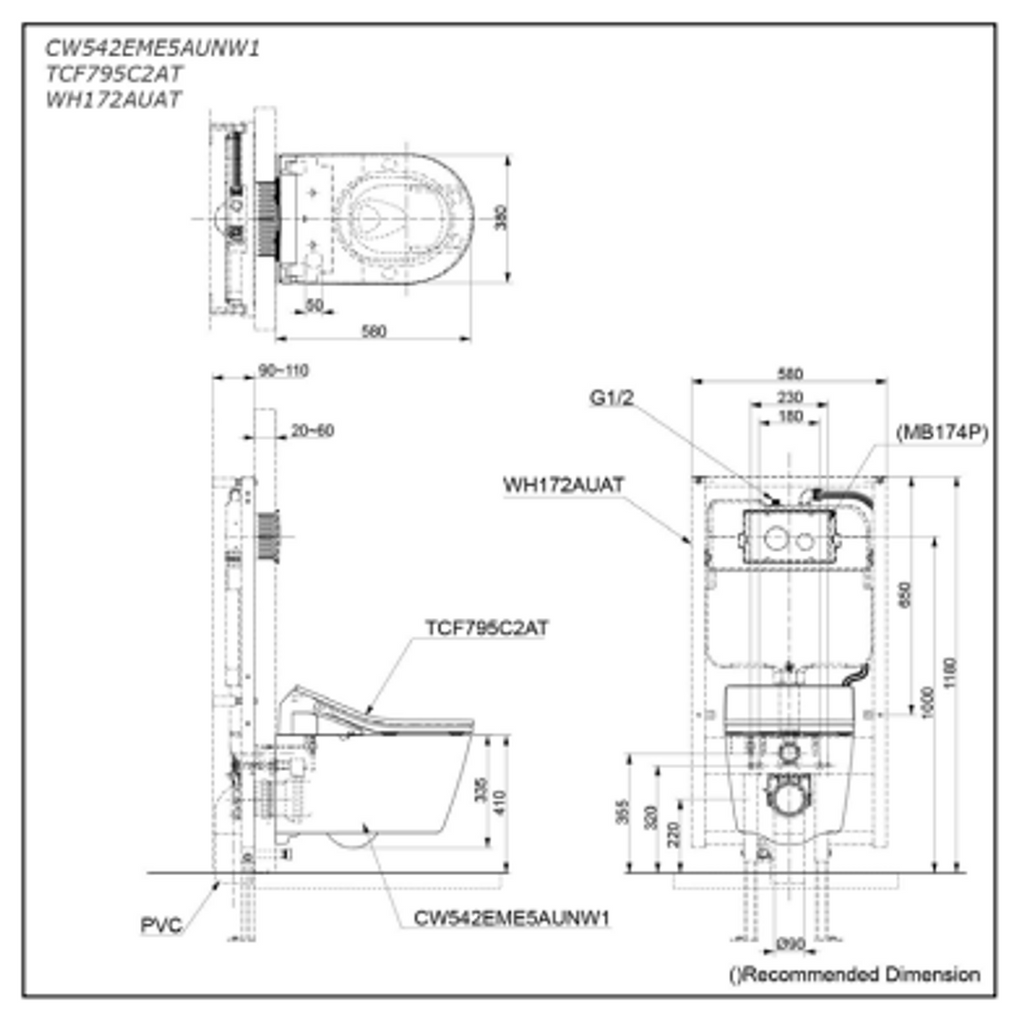

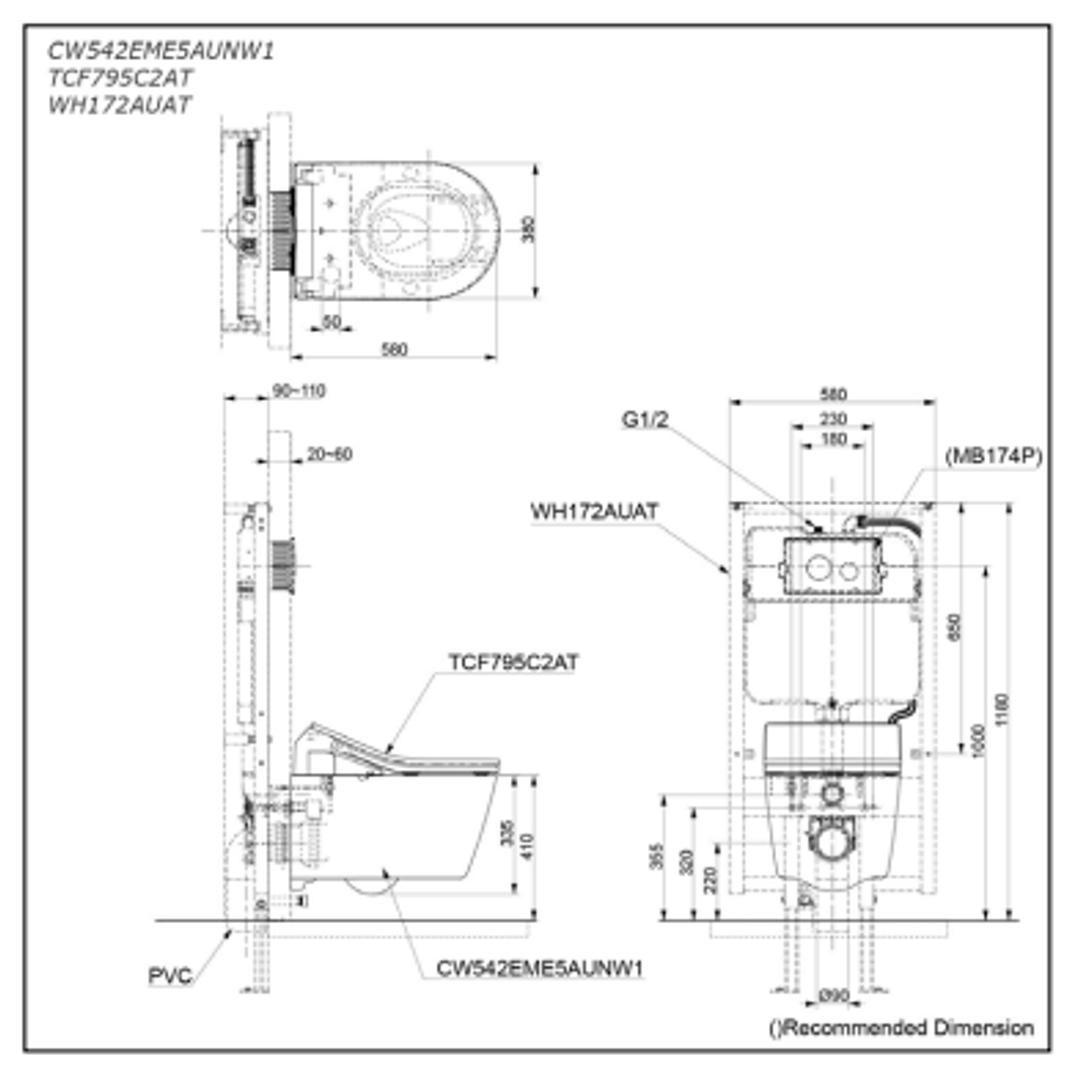

• Rough-in: H = 220 mm
• Bowl Shape: D-Shape
• Water Pressure: 0.05MPa – 0.75MPa
• Size: 380W x 580D x 335H mm

WASHLET:

• Power Rating: 220–240V, 50/60Hz, 826–837W
• Power Cord Length: 0.9 m
• Size: 383W x 579D x 146H mm

Upgrade your bathroom experience with TOTO’s advanced hygiene technology — where design innovation meets unmatched comfort and cleanliness.
