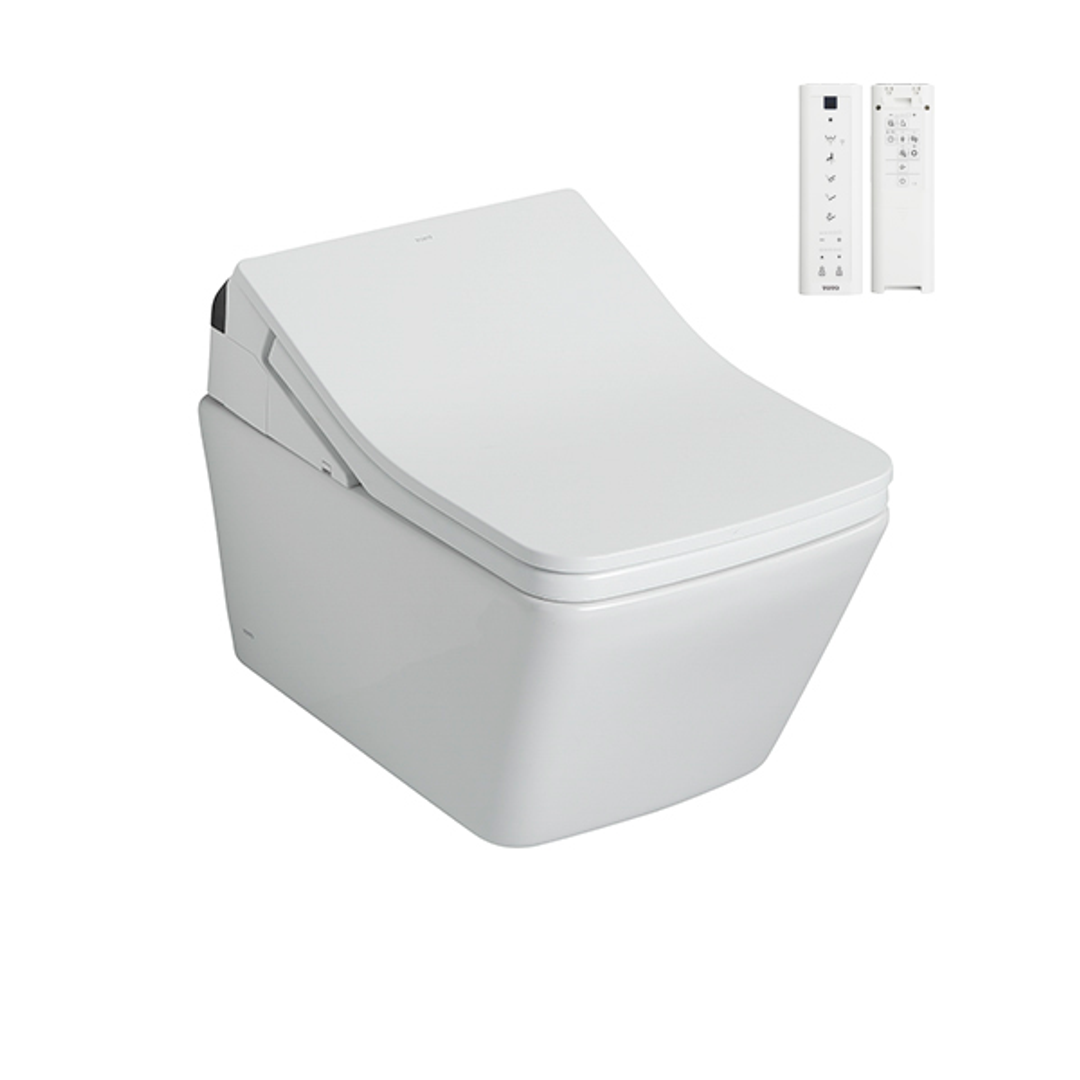

TOTO Sw/Sx Wall Hung Pan (Soft Square) Cw522Eme5Aunw1

TOTO Sw/Sx Wall Hung Pan (Soft Square)

The TOTO SW/SX Wall Hung Pan (Soft Square) combines modern design with advanced hygiene technology, making it a premium choice for contemporary bathrooms. Its super-smooth CEFIONTECT glazing prevents debris buildup, ensuring effortless cleaning and long-lasting cleanliness.

Featuring TOTO’s TORNADO FLUSH system, this wall-hung pan delivers a powerful, water-efficient flush while the rimless bowl design maximizes hygiene and simplifies maintenance. For enhanced cleanliness and comfort, pair with a compatible TOTO SX Washlet, offering EWATER+ for nozzle sanitization, PREMIST to reduce waste adhesion, a heated seat with temperature control, and oscillating and pulsating cleansing functions. The soft-close seat and cover add convenience and safety.

Please note: This product includes the pan only.

Extra items required for installation:

• SX Washlet (Soft Square) – Model: TCF797C2AT#NW1

• AXENT Concealed Cistern with Frame – Model: Q732-0101-A1

• TOTO Flush Panel – Stainless Steel – Model: MB171M#SS

Key Features

• Rimless bowl for easy cleaning and superior hygiene
• CEFIONTECT ion-barrier glazing prevents waste and bacteria buildup
• TORNADO FLUSH system for water-efficient, powerful flushing
• EWATER+ keeps the washlet nozzle sanitized
• PREMIST coating reduces dirt adhesion
• Heated seat with adjustable temperature
• Rear, front, oscillating, and pulsating cleansing
• Soft-close seat and cover for quiet operation

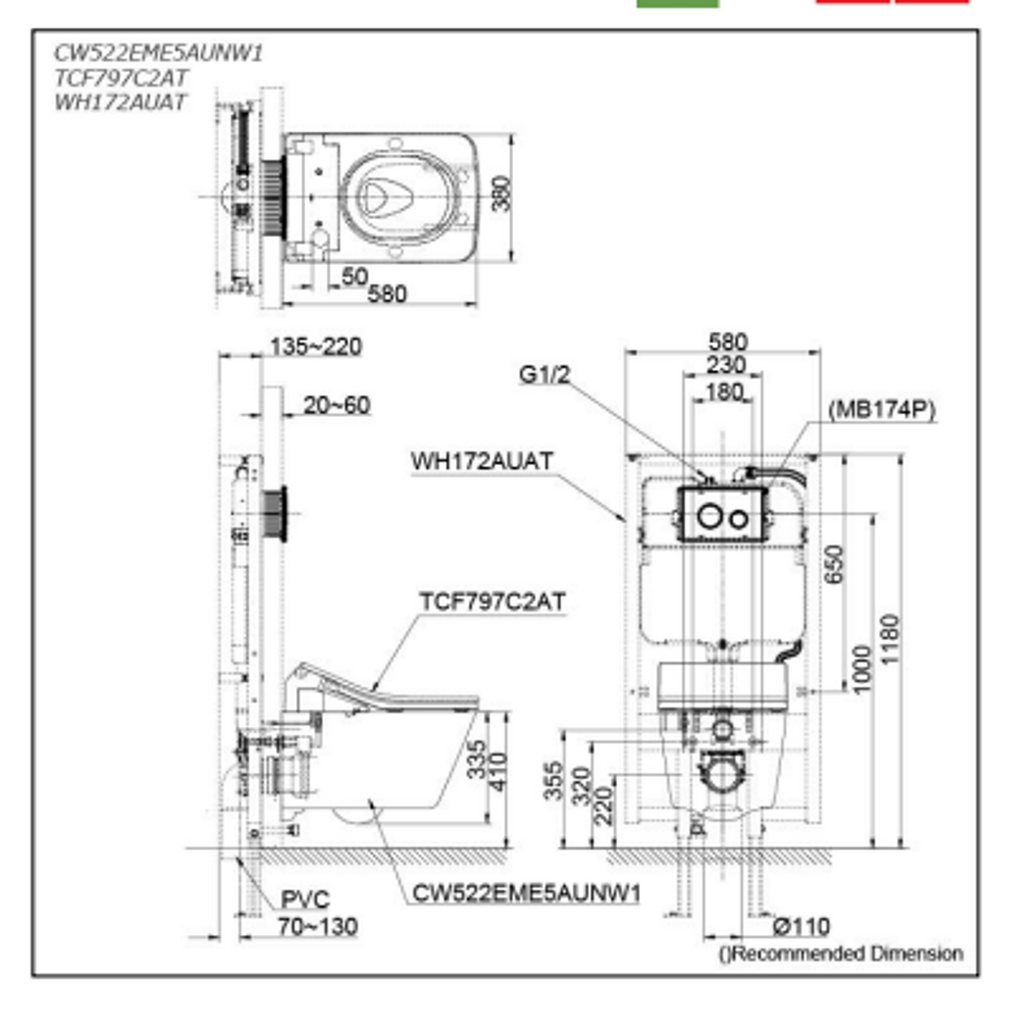

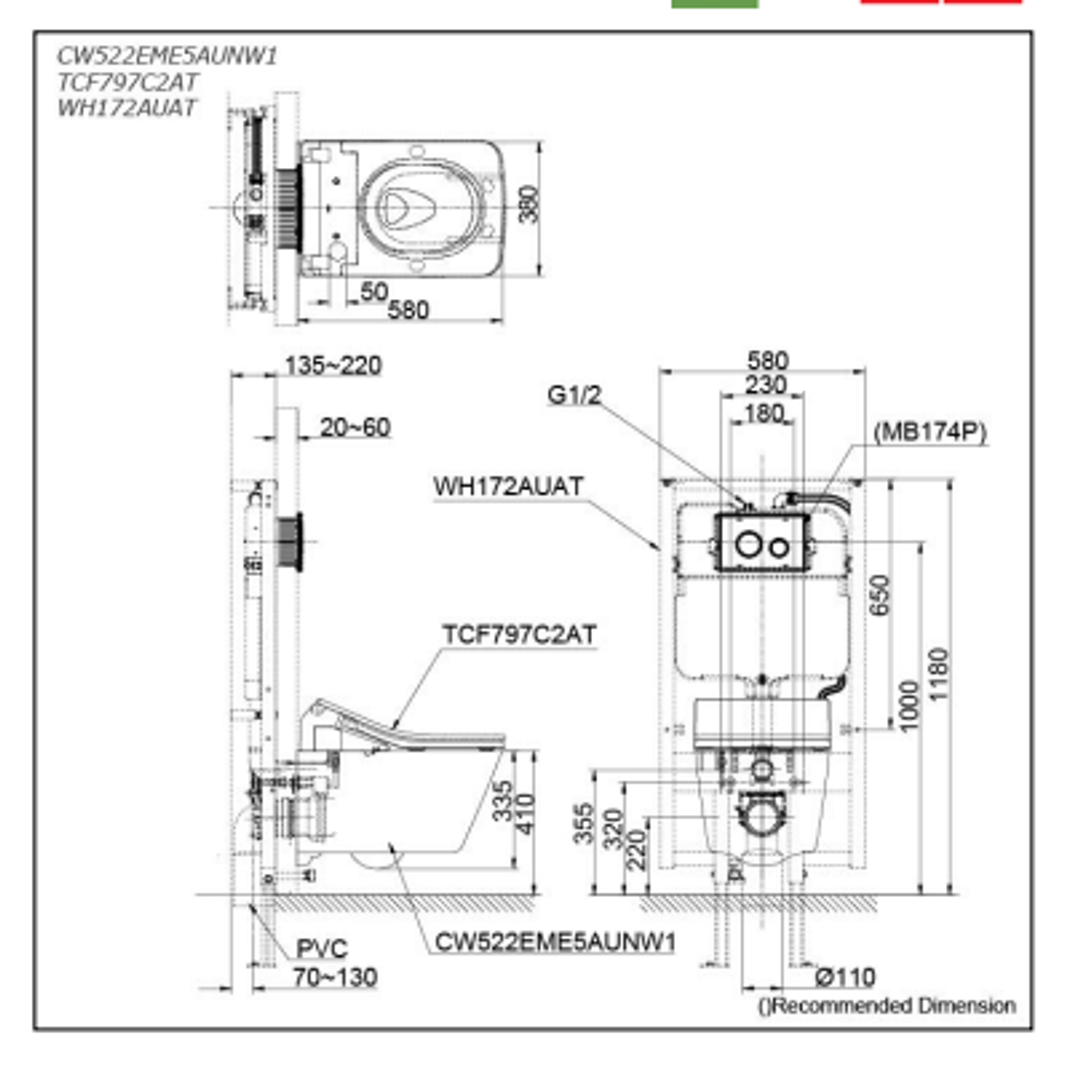

Specifications

• Flush System: TORNADO FLUSH
• Water Use: 4.5L / 3L
• Rough-in: H = 220 mm
• Bowl Shape: Soft Square
• Water Pressure: 0.05–0.75MPa
• Toilet Size: 380W x 580D x 335H mm
• Washlet Power Rating: 220–240V, 50/60Hz, 832–843W
• Washlet Size: 383W x 579D x 146H mm

The TOTO SW/SX Wall Hung Pan is ideal for homeowners seeking a stylish, hygienic, and environmentally friendly toilet solution with premium comfort features.
