Strip Grate VL Linear Shower Grate – Organic Brushed Brass

The Strip Grate VL Linear Shower Grate – Organic Brushed Brass is a slim and unobtrusive shower channel drain designed to bring a refined, contemporary look to modern bathroom spaces. Featuring a 38mm thick grate and a distinctive Organic Brushed Brass finish, it combines streamlined design with practical installation flexibility for professional shower applications.

The Strip Grate VL is available in 750mm, 900mm, 1200mm, 1500mm and 2250mm kits, which can be cut to length or joined together to suit different shower layouts. The collection channel also features versatile spigot positioning, allowing the outlet to be positioned where required along the channel to accommodate different plumbing configurations.

Key Features

• Slimline linear shower channel designed for a sleek, unobtrusive appearance
• 38mm thick shower grate with an Organic Brushed Brass finish
• Smooth grate contours help prevent hair and debris from catching
• 20mm removable snap-off upstand to assist with against-wall waterproofing
• 20mm waterproofing flange allows the collection channel to be waterproofed into place
• Collection channel can be cut to the exact length required onsite
• Flexible spigot positioning allows the outlet to be positioned along the collection channel
• Unique spacer system helps achieve a flush finish with surrounding floor tiles
• Breakaway upstand allows the grate to be positioned against or away from the wall
• Collection channel connects directly to a 50mm PVC S-trap
• Available in 750mm, 900mm, 1200mm, 1500mm and 2250mm kits
• Designed for straightforward trade installation

Product Specifications

Sleek Linear Design

The Strip Grate VL features a slim linear profile designed to integrate neatly into the shower floor. Its understated design provides a contemporary alternative to traditional shower wastes while maintaining practical drainage functionality.

The Organic Brushed Brass finish introduces a warm golden tone to the shower area, making it a distinctive choice for bathrooms featuring brass, warm metallic or natural finishes. The smooth contours of the grate are designed to help prevent hair and debris from catching.

Flexible Installation

The Strip Grate VL is designed to accommodate different shower layouts and plumbing configurations. The collection channel can be cut to the exact length required onsite, providing flexibility when fitting the drain to the available shower space.

The range is available in 750mm, 900mm, 1200mm, 1500mm and 2250mm kits, which can be cut to length or joined together where required.

The outlet spigot can also be positioned wherever needed along the collection channel, making it easier to align the shower drain with new or existing plumbing.

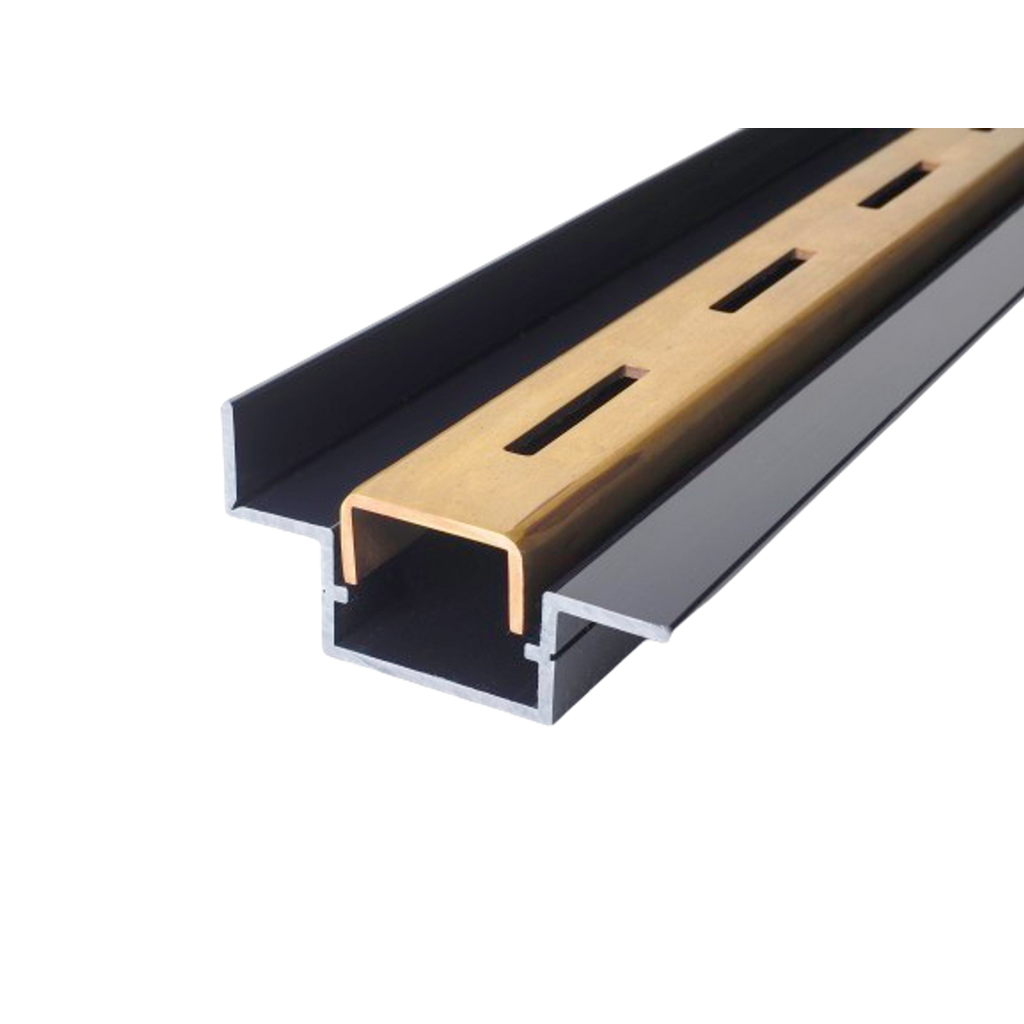

20mm Snap-Off Upstand

A 20mm removable snap-off upstand runs along the collection channel and is designed to assist with waterproofing when the shower grate is installed against a wall.

The upstand allows the waterproofing system to be integrated into the wall-side installation and provides a practical surface for completing the shower area neatly. When the grate is positioned away from the wall, the upstand can be broken off to suit the installation.

20mm Waterproofing Flange

The Strip Grate VL collection channel incorporates a 20mm flange, allowing the channel to be waterproofed into place as part of the shower installation.

The tiler can run the screed up to the channel before the waterproofer applies the waterproofing system over the screed and grate system. Once waterproofing has been completed, the shower area is ready for tiling.

Easy to Install

The Strip Grate VL is designed to provide a straightforward installation process for tradespeople. Simply cut the grate to the required size, glue the end caps and spigot into place, and install the channel into the shower base.

After the screed and waterproofing have been completed, the shower area can be tiled. The unique spacer system allows the grate to be raised to the appropriate height, helping achieve a flush finish with the surrounding floor tiles.

Flexible Outlet Positioning

The outlet spigot can be positioned along the collection channel wherever required, providing flexibility when connecting the shower drain to the plumbing system.

The collection channel is designed to integrate into the plumbing system by connecting directly to a 50mm PVC S-trap.

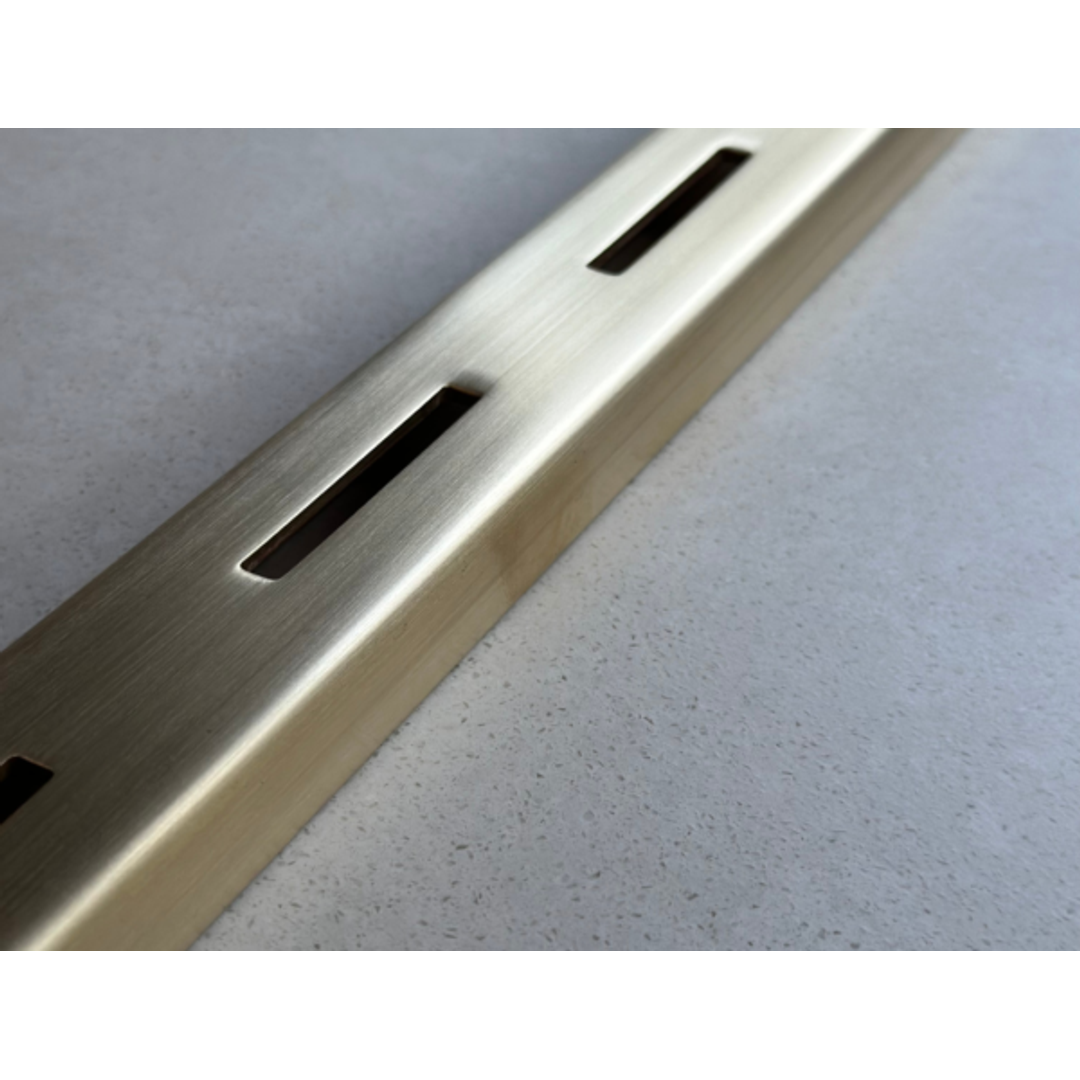

Organic Brushed Brass Finish

The Organic Brushed Brass finish is made from raw brass in its natural, uncoated state. As a natural material, the brass will develop a patina over time, gradually taking on a more aged appearance and changing in colour.

This natural ageing process gives the grate a distinctive character over time. For customers who prefer to maintain the original golden appearance of the Organic Brushed Brass finish, regular cleaning and gentle care are recommended.

Organic Brushed Brass Cleaning & Aftercare

To help maintain the beautiful golden appearance of the Organic Brushed Brass finish, regularly clean the grate using a soft microfibre cloth and mild dish soap.

Wipe away soap residue, stains and moisture regularly using a dry, soft cloth to help reduce the appearance of watermarks.

Avoid using harsh chemicals, brushes, abrasive materials or scrubbing sponges, as these can damage the natural brass surface.

If using a commercially available or natural brass cleaning product, test it first on a small, inconspicuous section of the grate to check its compatibility with the surface.

With gentle cleaning and regular care, the Organic Brushed Brass grate can maintain its warm golden appearance while allowing the natural character of the brass to develop over time.

A Stylish and Practical Shower Drain

Combining a slimline linear profile with flexible installation features and a distinctive natural brass finish, the Strip Grate VL Linear Shower Grate – Organic Brushed Brass provides a practical drainage solution for contemporary bathroom designs.

With its cut-to-length collection channel, adjustable spigot positioning, removable 20mm upstand, waterproofing flange and tile-height spacer system, the Strip Grate VL is designed to make installation straightforward while providing a refined finish to the shower floor.

Shop the Strip Grate VL Linear Shower Grate – Organic Brushed Brass at Burdens Bathrooms.
