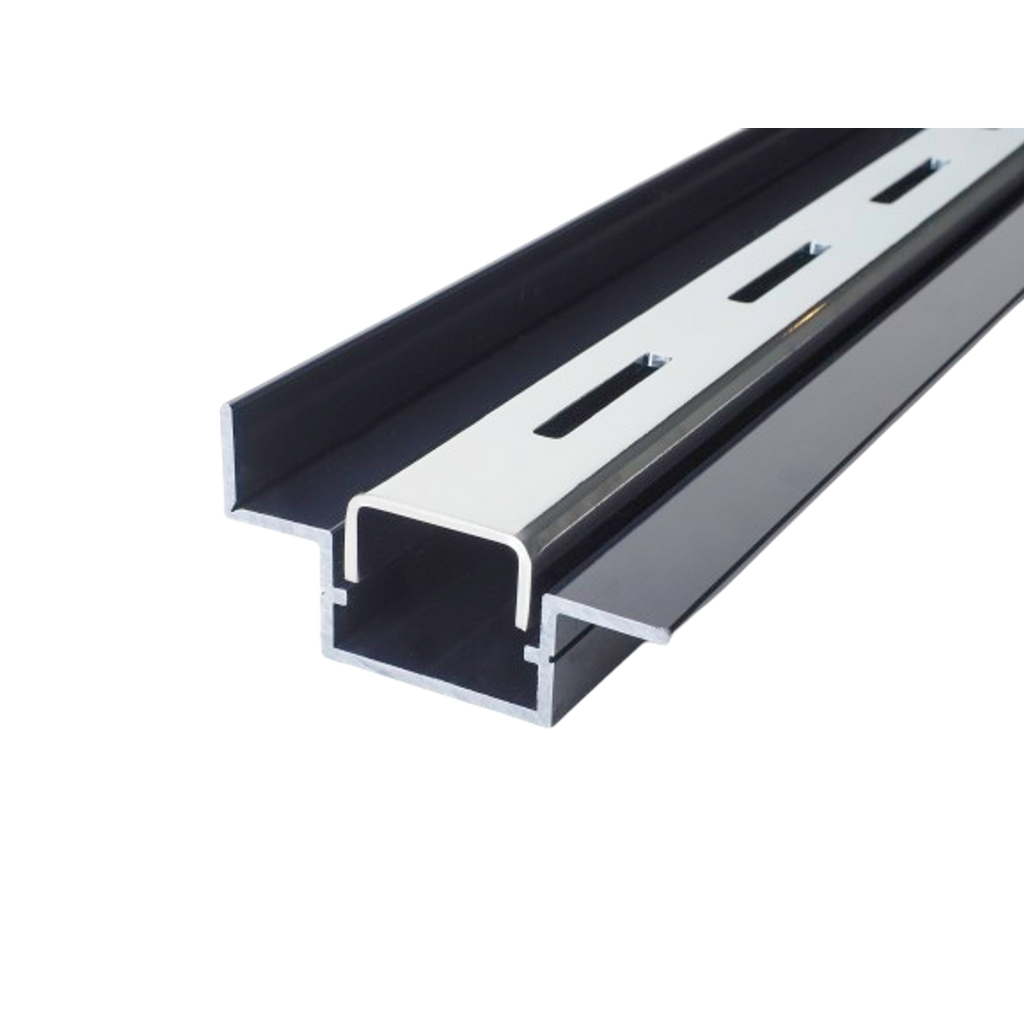

Strip Grate VL Linear Shower Grate – Chrome Plated Brass

The Strip Grate VL Linear Shower Grate – Chrome Plated Brass is a slim and unobtrusive shower channel drain designed to provide a clean, contemporary drainage solution for modern bathrooms. Featuring a 38mm thick chrome-plated brass grate, the Strip Grate VL combines a refined finish with practical installation features for professional bathroom applications.

Available in 750mm, 900mm, 1200mm, 1500mm and 2250mm kits, the collection channel can be cut to the required length onsite or joined together where a longer drainage solution is needed. The flexible spigot positioning also allows the outlet to be positioned where required along the collection channel, helping accommodate different plumbing configurations.

Key Features

• Slimline linear shower channel with a sleek, unobtrusive design
• 38mm thick chrome-plated brass shower grate
• Smooth grate contours help prevent hair and debris from catching
• 20mm removable snap-off upstand to assist with against-wall waterproofing
• 20mm waterproofing flange for integrating the collection channel into the waterproofing system
• Collection channel can be cut to the required length onsite
• Flexible spigot positioning allows the outlet to be positioned along the collection channel
• Unique spacer system helps install the grate flush with surrounding floor tiles
• Removable upstand allows the grate to be installed against a wall or away from the wall
• Collection channel connects directly to a 50mm PVC S-trap
• Designed for straightforward and efficient trade installation
• Available in 750mm, 900mm, 1200mm, 1500mm and 2250mm kits

Product Specifications

Sleek Linear Design

The Strip Grate VL features a minimalist linear profile designed to sit discreetly within the shower floor. Its streamlined appearance provides a contemporary alternative to traditional shower wastes while maintaining the practical drainage functionality required in modern bathroom installations.

The chrome-plated brass grate provides a polished, reflective finish that complements chrome tapware, shower fittings and other bathroom fixtures. Its smooth contours are designed to help minimise areas where hair and debris can become caught.

Flexible Installation

The Strip Grate VL has been designed to provide installers with flexibility when working with different shower layouts and plumbing positions.

The collection channel can be cut to the exact length required onsite, making it suitable for a variety of shower configurations. The outlet spigot can also be positioned wherever required along the collection channel, allowing it to be aligned with new or existing plumbing.

The range is available in 750mm, 900mm, 1200mm, 1500mm and 2250mm kits, which can be cut to length or joined together where required.

Removable 20mm Upstand

A 20mm snap-off upstand runs along the collection channel and provides additional flexibility during installation. When the shower grate is positioned against a wall, the upstand can assist with against-wall waterproofing and allows the tiling to be completed neatly against the wall.

The upstand can also be broken off when the grate is positioned away from the wall, making the system adaptable to different shower layouts.

20mm Waterproofing Flange

The Strip Grate VL collection channel features a 20mm flange designed to allow the drain to be waterproofed into place.

During installation, the tiler can run the screed up to the channel before the waterproofer applies the waterproofing system over the screed and grate system. Once waterproofing is complete, the area is ready for tiling.

Easy to Install

The Strip Grate VL is designed for a straightforward installation process. The grate and collection channel can be cut to the required size, with the end caps and spigot glued into place before the system is installed into the shower base.

After the screed and waterproofing have been completed, the shower area can be tiled. The unique spacer system allows the grate to be raised to the appropriate height, helping achieve a neat, flush finish with the surrounding floor tiles.

Flexible Outlet Positioning

The outlet spigot can be positioned along the collection channel according to the requirements of the installation. This provides greater flexibility when connecting the shower drain to the plumbing system and helps accommodate different outlet positions.

The collection channel is designed to connect directly to a 50mm PVC S-trap, allowing the shower drain to integrate into the plumbing system.

Chrome Plated Brass Finish

The chrome-plated brass finish provides a polished and contemporary appearance suited to a wide range of bathroom styles. Its reflective finish pairs particularly well with chrome bathroom tapware and shower fittings for a coordinated look.

The sleek finish also helps the linear grate maintain a subtle appearance within the shower floor, allowing the surrounding tiles and bathroom design to remain the focus.

A Practical Linear Shower Drain

Combining a slimline appearance with flexible installation features, the Strip Grate VL Linear Shower Grate – Chrome Plated Brass provides a practical solution for modern shower drainage.

With its cut-to-length collection channel, adjustable spigot positioning, removable 20mm upstand, waterproofing flange and tile-height spacer system, the Strip Grate VL is designed to make installation efficient while delivering a clean and contemporary finish.

Shop the Strip Grate VL Linear Shower Grate – Chrome Plated Brass at Burdens Bathrooms.
